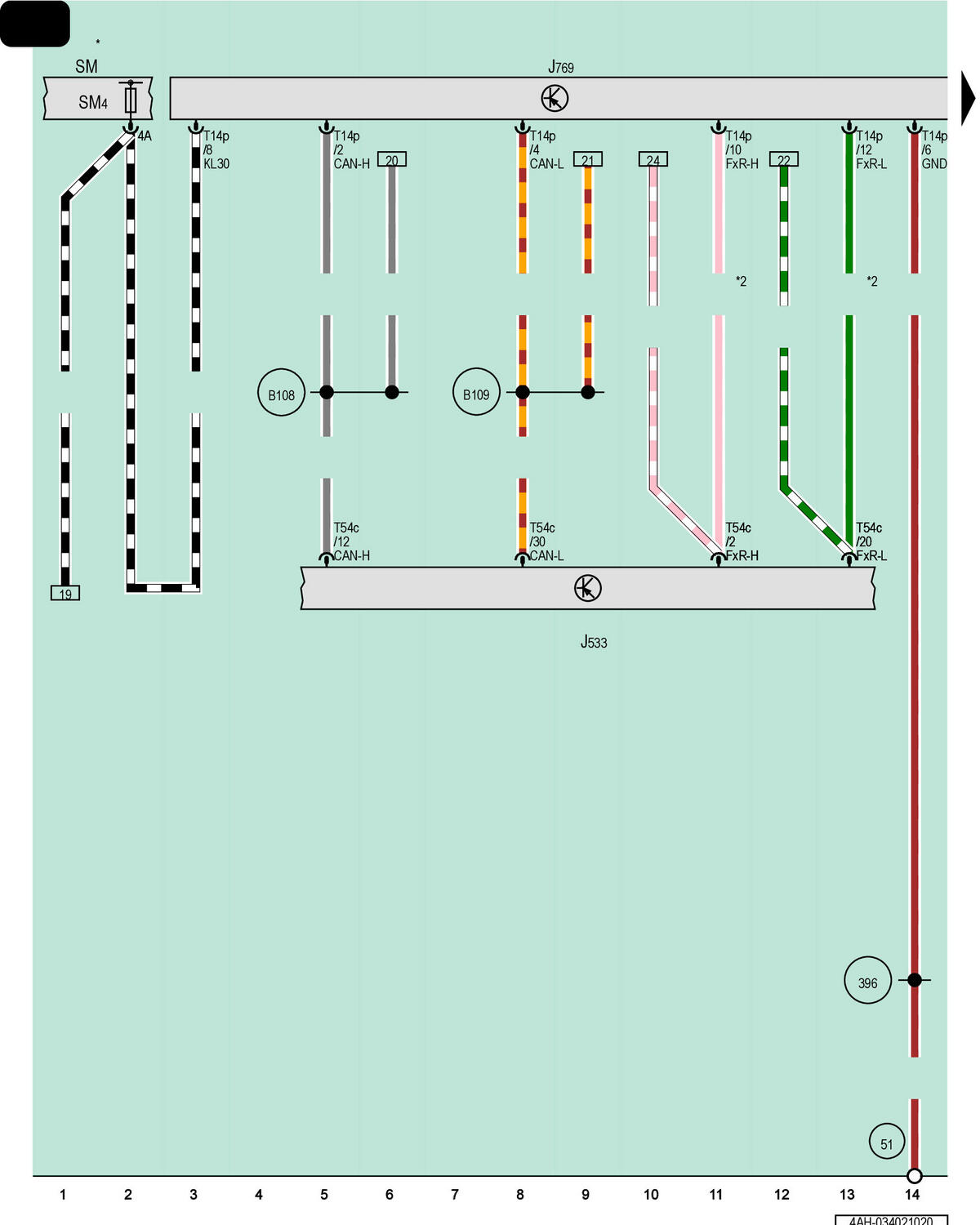

Data Bus On Board Diagnostic Interface, Lane Change Assistance Control Module

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J769

Lane Change Assistance Control Module

SM

Fuse Panel M

SM4

Fuse 4 on Fuse Panel M

T14p

14-Pin Connector, Black

T54c

54-Pin Connector, Black

51

Ground Connection in Luggage Compartment, Right

396

Ground Connection 31 (in Main Wiring Harness)

B108

CAN Bus Extended High Connection 1 (in Main Wiring Harness)

B109

CAN Bus Extended Low Connection 1 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

For Vehicles with Lane Change Assistance
