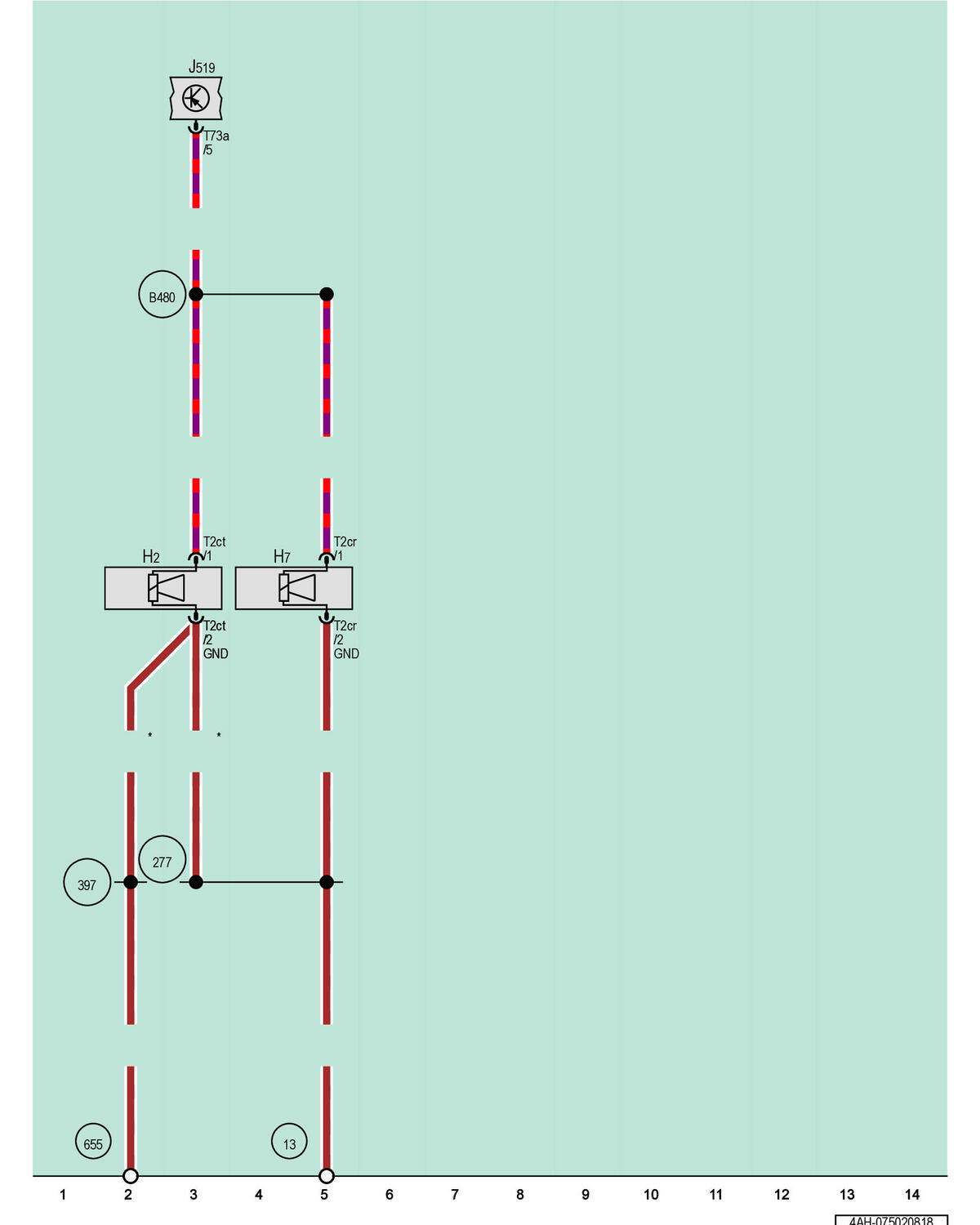

High Tone Horn, Low Tone Horn

Courtesy of AUDI OF AMERICA, LLC

H2

High Tone Horn

H7

Low Tone Horn

J519

Vehicle Electrical System Control Module

T2cr

2-Pin Connector, Black

T2ct

2-Pin Connector, Black

T73a

73-Pin Connector, Black

13

Ground Connection in Engine/Motor Compartment, Right

277

Ground Connection 3 (in Interior Wiring Harness)

397

Ground Connection 32 (in Main Wiring Harness)

655

Ground Connection on Left Headlamp

B480

Connection 16 (in Main Wiring Harness)

*

Depending on Equipment
