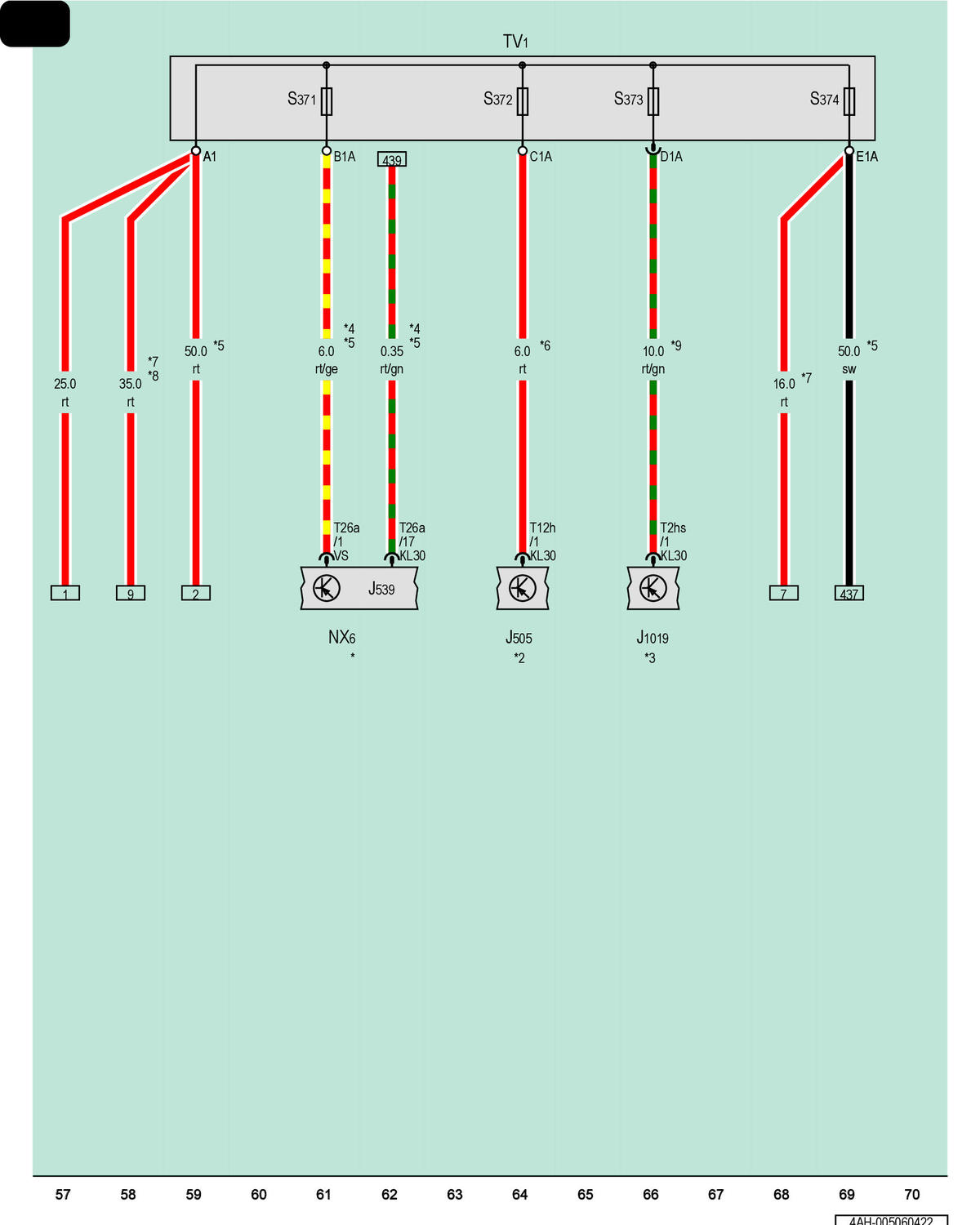

Windshield Defogger Control Module, Rear Axle Steering Control Module, Brake Booster, Wire Junction
J505
Windshield Defogger Control Module
J539
Brake Booster Control Module
J1019
Rear Axle Steering Control Module
NX6
Brake Booster
S371
Wire Junction Fuse 1
S372
Wire Junction Fuse 2
S373
Wire Junction Fuse 3
S374
Wire Junction Fuse 4
T2hs
2-Pin Connector, Black
T12h
12-Pin Connector, Black
T26a
26-Pin Connector, Black
TV1
Wire Junction
*
Refer to Applicable ABS Wiring Diagram
*2
Refer to Applicable Windshield Defogger Wiring Diagram
*3
Refer to Applicable Wiring Diagram
*4
For Vehicles with Traffic Jam Pilot
*5
For Vehicles with Hybrid Drive
*6
For Vehicles with Windshield Defogger
*7
For Vehicles with 48 V System
*8
Optional Equipment
*9
For Vehicles with Rear Axle Steering
