Vehicle Electrical System Control Module, Fuse Panel B

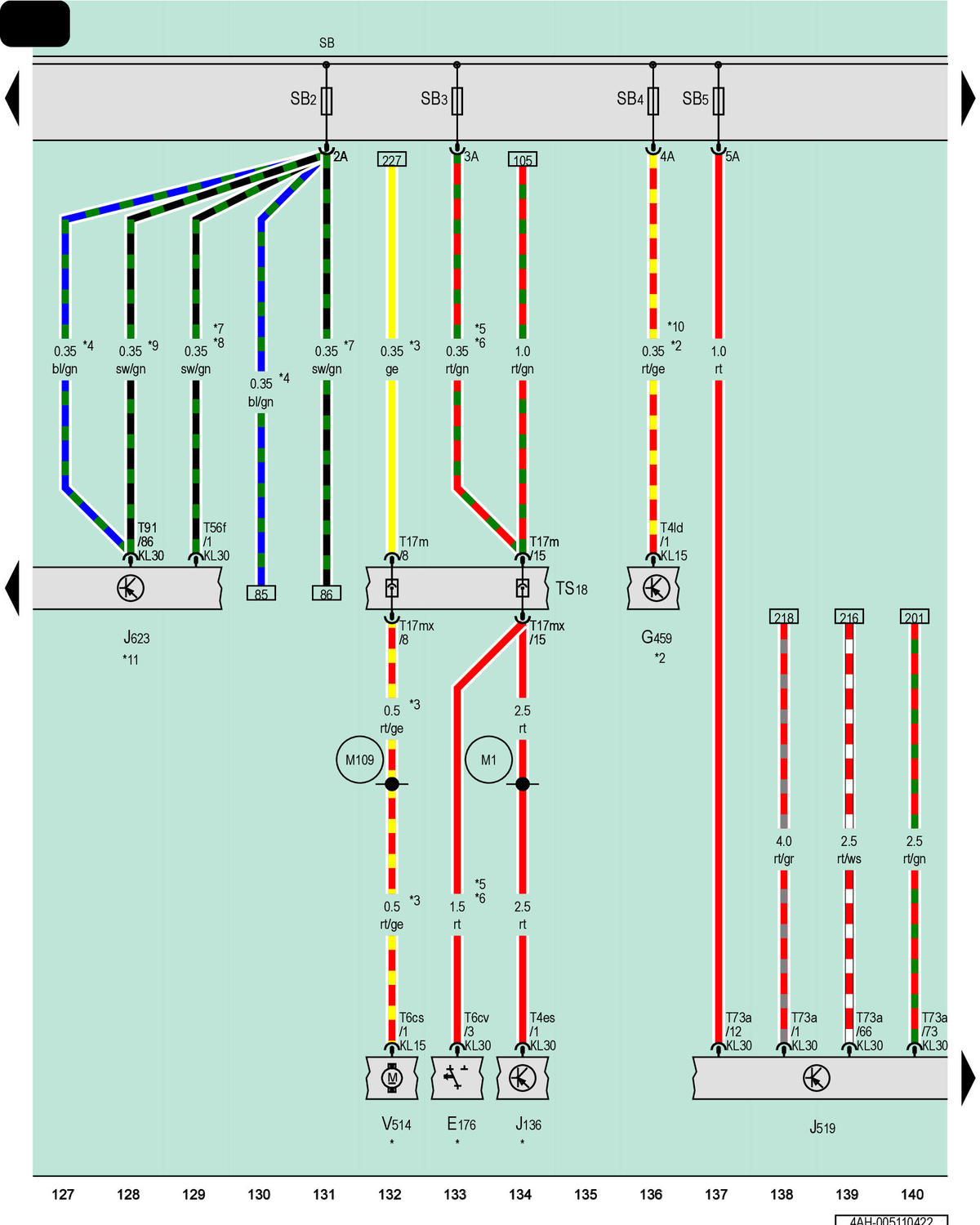

GWW4AH-005110422Courtesy of AUDI OF AMERICA, LLC

E176

Driver Seat Lumbar Support Adjustment Switch

G459

Toll Registration Sensor

J136

Memory Seat/Steering Column Adjustment Control Module

J519

Vehicle Electrical System Control Module

J623

Engine/Motor Control Module

SB

Fuse Panel B

SB2

Fuse 2 (On Fuse Panel B)

SB3

Fuse 3 (On Fuse Panel B)

SB4

Fuse 4 (On Fuse Panel B)

SB5

Fuse 5 (On Fuse Panel B)

T4es

4-Pin Connector, Black

T4ld

4-Pin Connector, Blue

T6cs

6-Pin Connector, Black

T6cv

6-Pin Connector, Black

T17m

17-Pin Connector, Red

T17mx

17-Pin Connector, Red

T56f

56-Pin Connector, Black

T73a

73-Pin Connector, Black, Naturally Cloudy

TS18

Driver Seat Coupling Point

T91

91-Pin Connector, Black

V514

Left Front Seat Cushion Fan 1

M1

Positive Connection 1 (30) (in Seat Adjustment Wiring Harness)

M109

Connection 1 (30) (in Left Front Wiring Harness)

Refer to Applicable Wiring Diagram for the Driver Seat

*2

Optional Equipment

*3

For Vehicles with Seat Ventilation

*4

For Vehicles with Diesel Engine

*5

For Vehicles with Lumbar Support Adjustment

*6

For Vehicles Without a Power Driver Seat

*7

For Vehicles with Gasoline Engine

*8

For Vehicles with 48 V System

*9

For Vehicles with 2.0L Gasoline Engine

*10

Country-Specific

*11

Refer to Applicable Engine Wiring Diagram

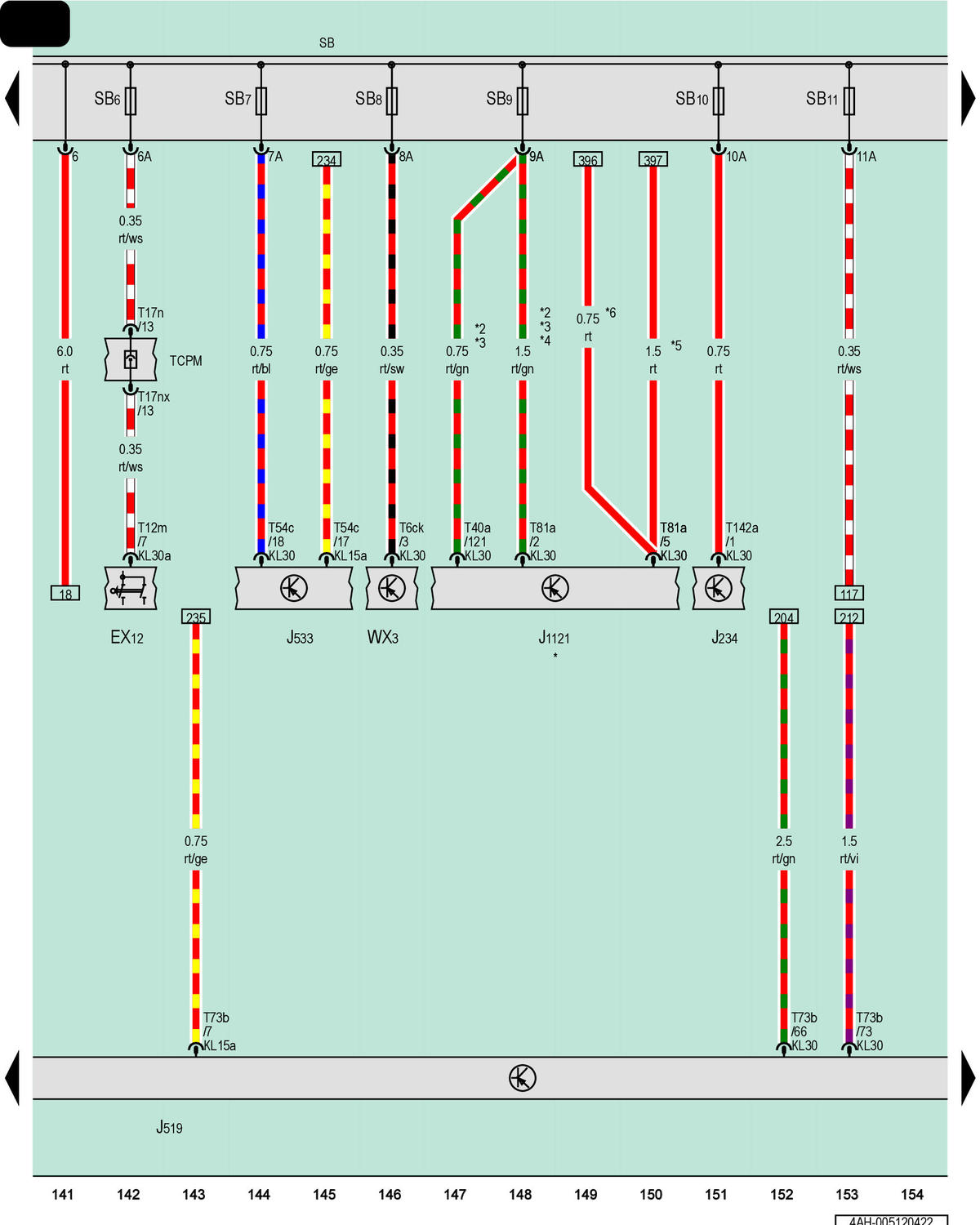

GWW4AH-005120422Courtesy of AUDI OF AMERICA, LLC

EX12

Parking Brake Button

J234

Airbag Control Module

J519

Vehicle Electrical System Control Module

J533

Data Bus on Board Diagnostic Interface

J1121

Driver Assistance Systems Control Module

SB

Fuse Panel B

SB6

Fuse 6 (On Fuse Panel B)

SB7

Fuse 7 (On Fuse Panel B)

SB8

Fuse 8 (On Fuse Panel B)

SB9

Fuse 9 (On Fuse Panel B)

SB10

Fuse 10 (On Fuse Panel B)

SB11

Fuse 11 (On Fuse Panel B)

T6ck

6-Pin Connector, Black

T12m

12-Pin Connector, Black

T17n

17-Pin Connector, Red

T17nx

17-Pin Connector, Red

T40a

40-Pin Connector, Black

T54c

54-Pin Connector, Black

T73b

73-Pin Connector, Black, Black

T81a

81-Pin Connector, Black

T142a

142-Pin Connector, Yellow

TCPM

Coupling Point on Instrument Panel, Center

WX3

Front Roof Module

Refer to Applicable Wiring Diagram

*2

For Driver Assistance System

*3

Depending on Equipment

*4

Diameter Depends on Equipment

*5

For Vehicles with Peripheral Camera

*6

For Vehicles without Peripheral Camera
