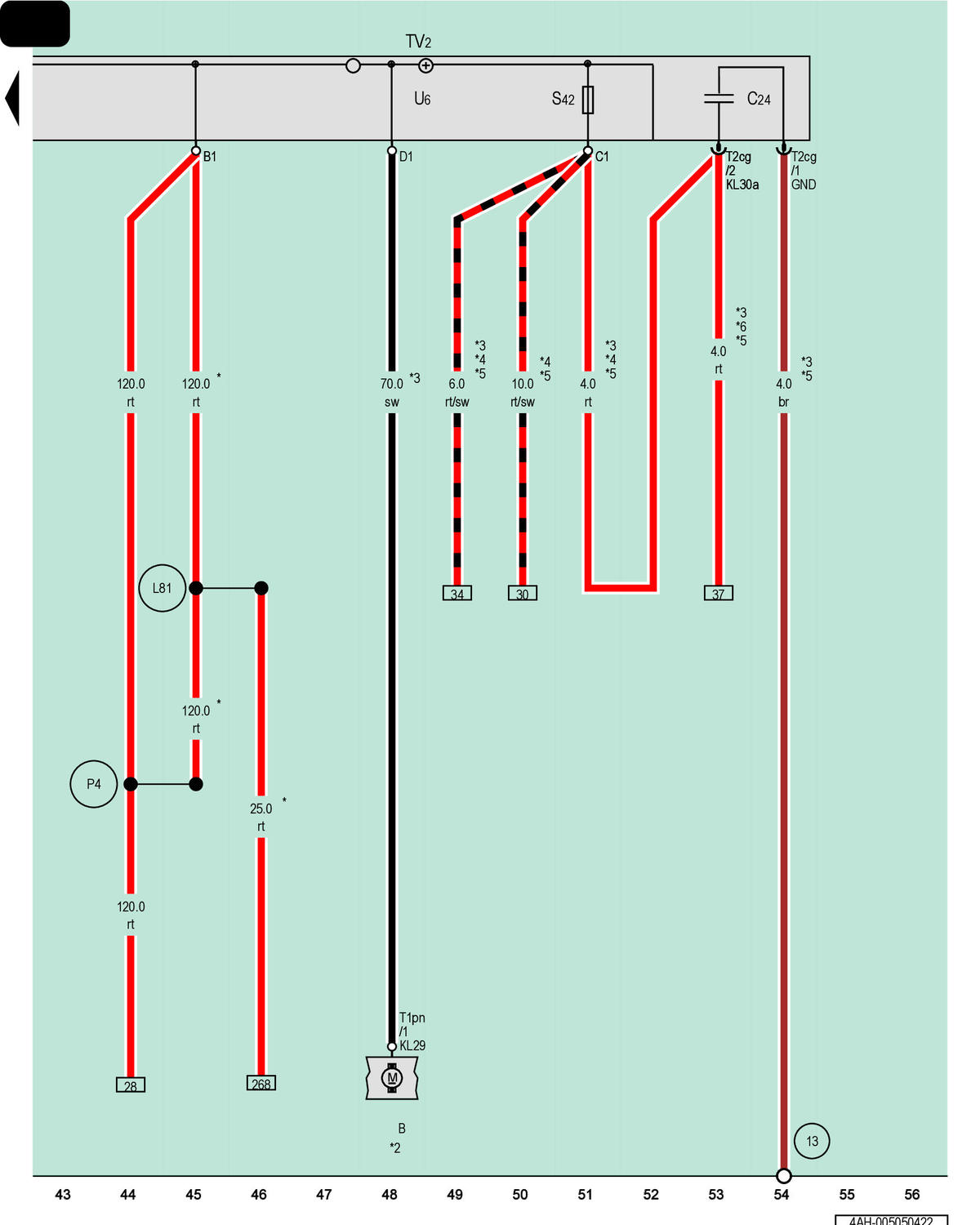

Starter, Terminal 30 Wire Junction

Courtesy of AUDI OF AMERICA, LLC

B

Starter

C24

Suppressor

S42

Radiator Fan Fuse

T1pn

1-Pin Connector

T2cg

2-Pin Connector, Black

TV2

Terminal 30 Wire Junction

U6

Battery Jump Start Terminal

13

Ground Connection in Engine/Motor Compartment, Right

L81

Connection (in Auxiliary Heater Wiring Harness)

P4

Positive Connection 2 (30) (in Battery Wiring Harness)

*

For Vehicles with Auxiliary Heater

*2

Refer to Applicable Battery Wiring Diagram

*3

Diameter Depends on Equipment

*4

For Vehicles with Low Fan Output

*5

Refer to Applicable Engine Wiring Diagram

*6

Depending on Equipment
