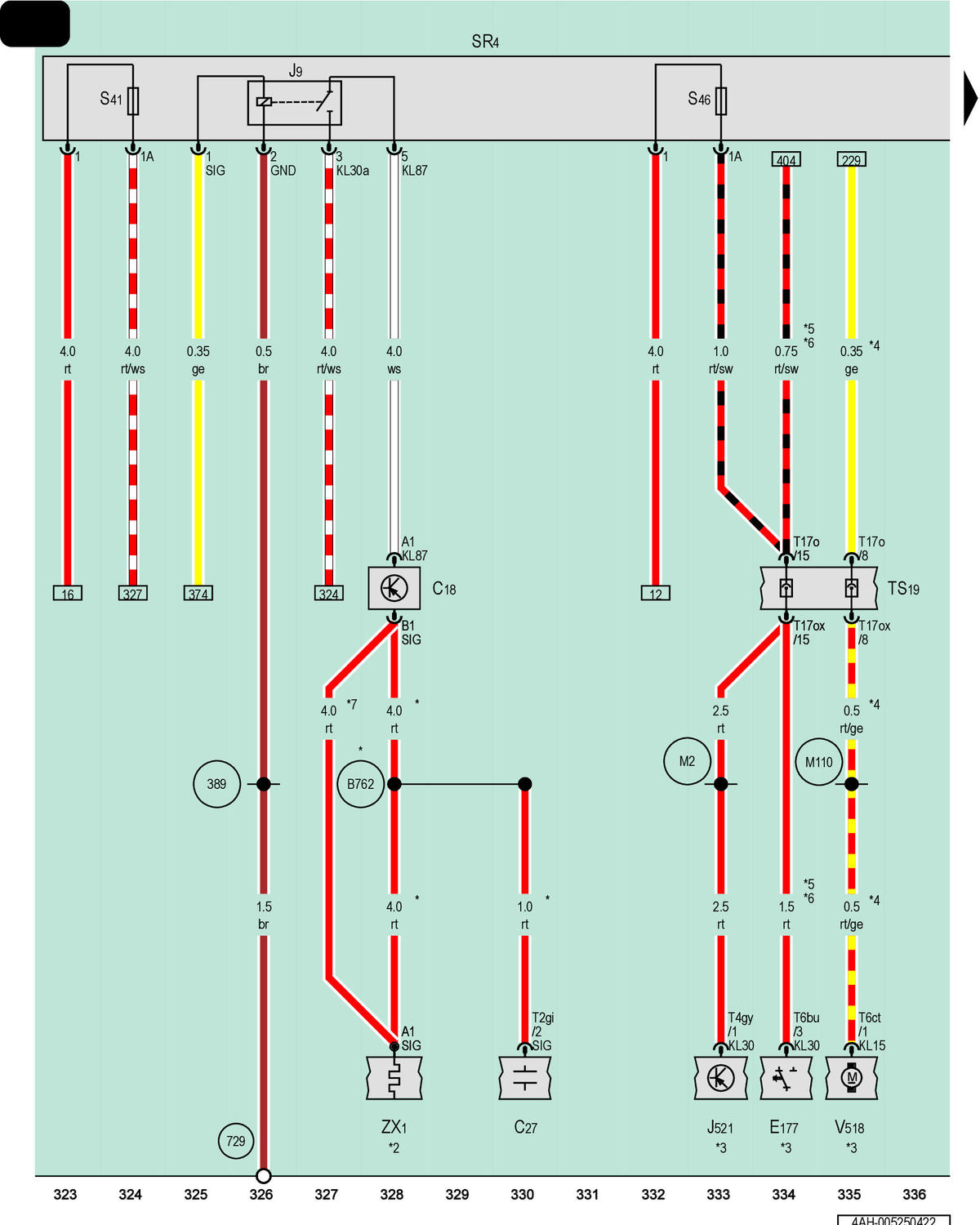

Rear Window Defogger Relay, Rear Window Defogger Fuse, Front Passenger Power Seat Adjustment Circuit Breaker 1
C18
Windshield Antenna Suppression Filter
C27
Rear Window Defogger Suppressor
E177
Front Passenger Seat Lumbar Support Adjustment Switch
J9
Rear Window Defogger Relay
J521
Front Passenger Memory Seat Control Module
SR4
Relay and Fuse Panel 4
S41
Rear Window Defogger Fuse
S46
Front Passenger Power Seat Adjustment Circuit Breaker 1
T2gi
2-Pin Connector
T4gy
4-Pin Connector, Black
T6bu
6-Pin Connector, Black
T6ct
6-Pin Connector, Black
T17o
17-Pin Connector, Red
T17ox
17-Pin Connector, Red
TS19
Front Passenger Seat Coupling Point
V518
Right Front Seat Cushion Fan 1
ZX1
Rear Window
389
Ground Connection 24 (in Main Wiring Harness)
729
Ground Connection on Left Rear Wheel Housing
B762
Positive Connection 1 (Blocking Diode) (in Interior Wiring Harness)
M2
Positive Connection 2 (30) (in Seat Adjustment Wiring Harness)
M110
Connection 1 (30) (in Right Front Seat Wiring Harness)
*
Avant
*2
Pre-Wired Component
*3
Refer to Applicable Wiring Diagram for the Front Passenger Seat
*4
For Vehicles with Seat Ventilation
*5
For Vehicles with Lumbar Support Adjustment
*6
For Vehicles Without Adjustable Seats
*7
Sedan
