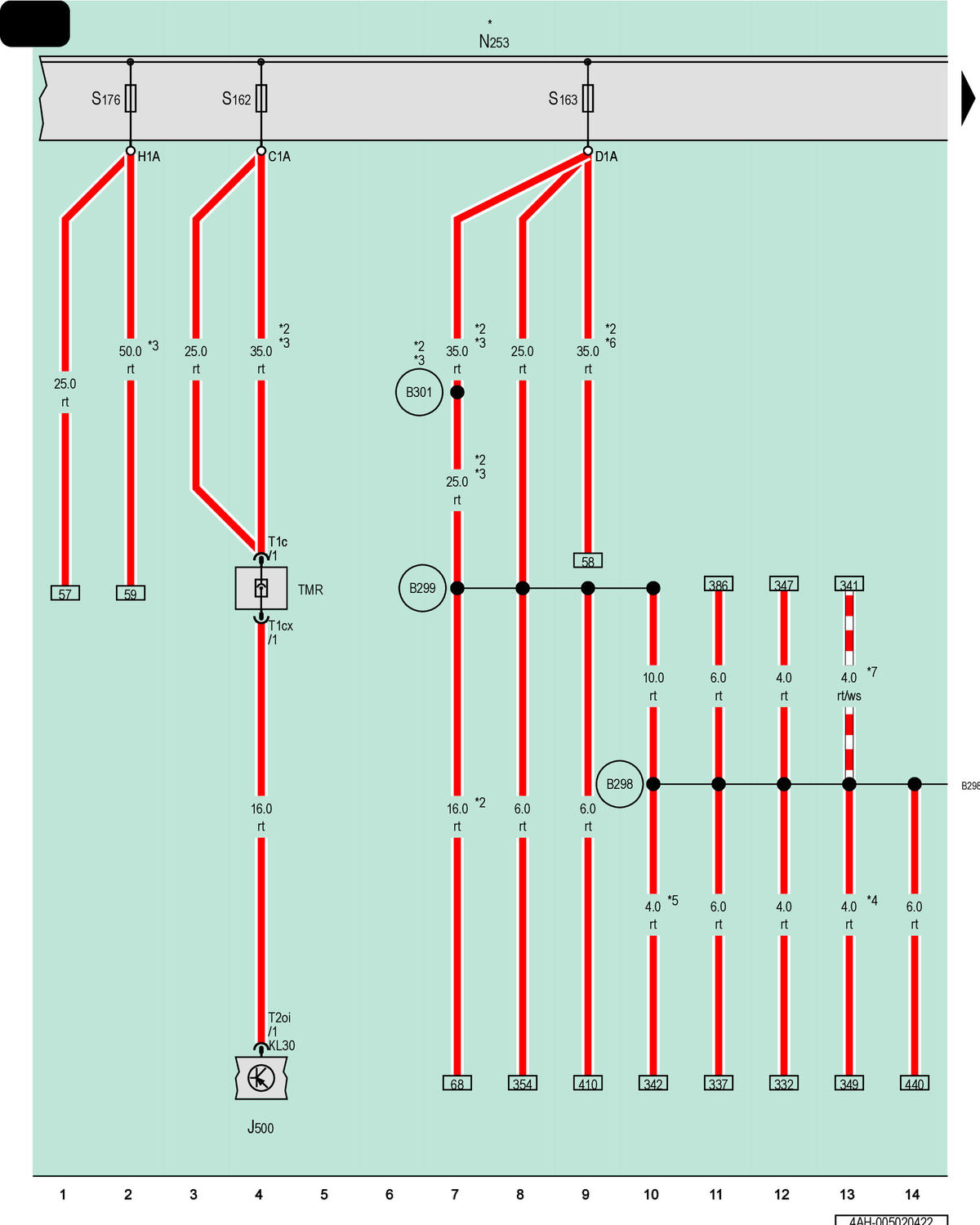

Power Steering Control Module, Battery Interrupt Igniter

Courtesy of AUDI OF AMERICA, LLC

J500

Power Steering Control Module

N253

Battery Interrupt Igniter

S162

Fuse 1 (Terminal 30) on Battery Fuse Panel

S163

Fuse 2 (Terminal 30) on Battery Fuse Panel

S176

Fuse 4 (Terminal 30) on Battery Fuse Panel

T1c

1-Pin Connector, Black

T1cx

1-Pin Connector, Black

T2oi

2-Pin Connector, Black

TMR

Coupling Point in Engine/Motor Compartment, Right

B298

Positive Connection 2 (30) (in Main Wiring Harness)

B299

Positive Connection 3 (30) (in Main Wiring Harness)

B301

Positive Connection 5 (30) (in Main Wiring Harness)

*

Refer to Applicable Battery Wiring Diagram

*2

For Vehicles with 48 V System

*3

For Vehicles with Hybrid Drive

*4

For Vehicles with Reversible Seat Belt Tensioners

*5

Omitted as a Running Change

*6

Optional Equipment

*7

Running Change
