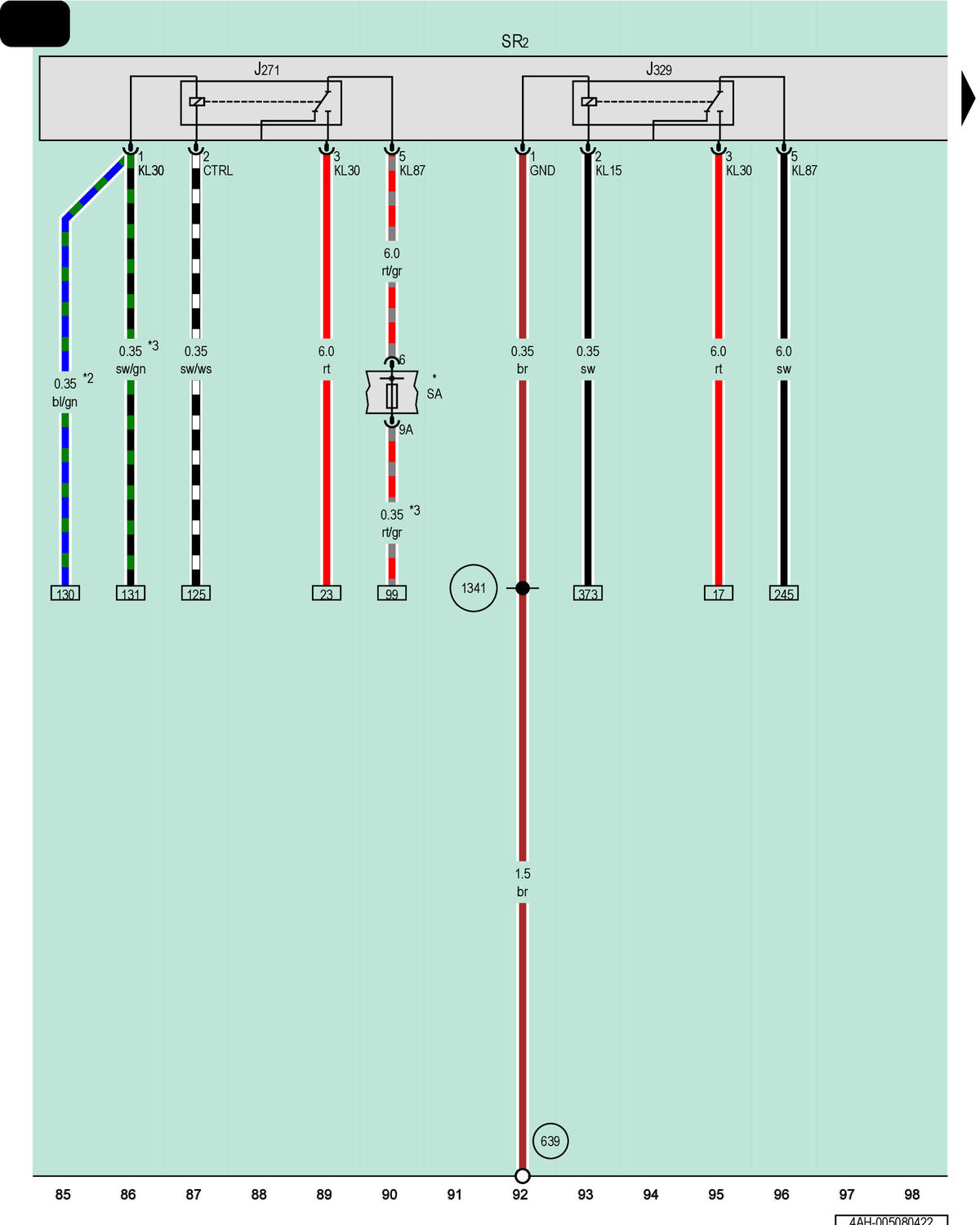

MOTRONIC Engine Control Module Power Supply Relay, Terminal 15 Power Supply Relay, Relay And Fuse Panel 2
J271
Motronic Engine Control Module Power Supply Relay
J329
Terminal 15 Power Supply Relay
SA
Fuse Panel A
SR2
Relay and Fuse Panel 2
639
Ground Connection on Left A-Pillar
1341
Ground Connection 43 (in Main Wiring Harness)
*
Refer to Applicable Engine Wiring Diagram
*2
For Vehicles with Diesel Engine
*3
For Vehicles with Gasoline Engine
