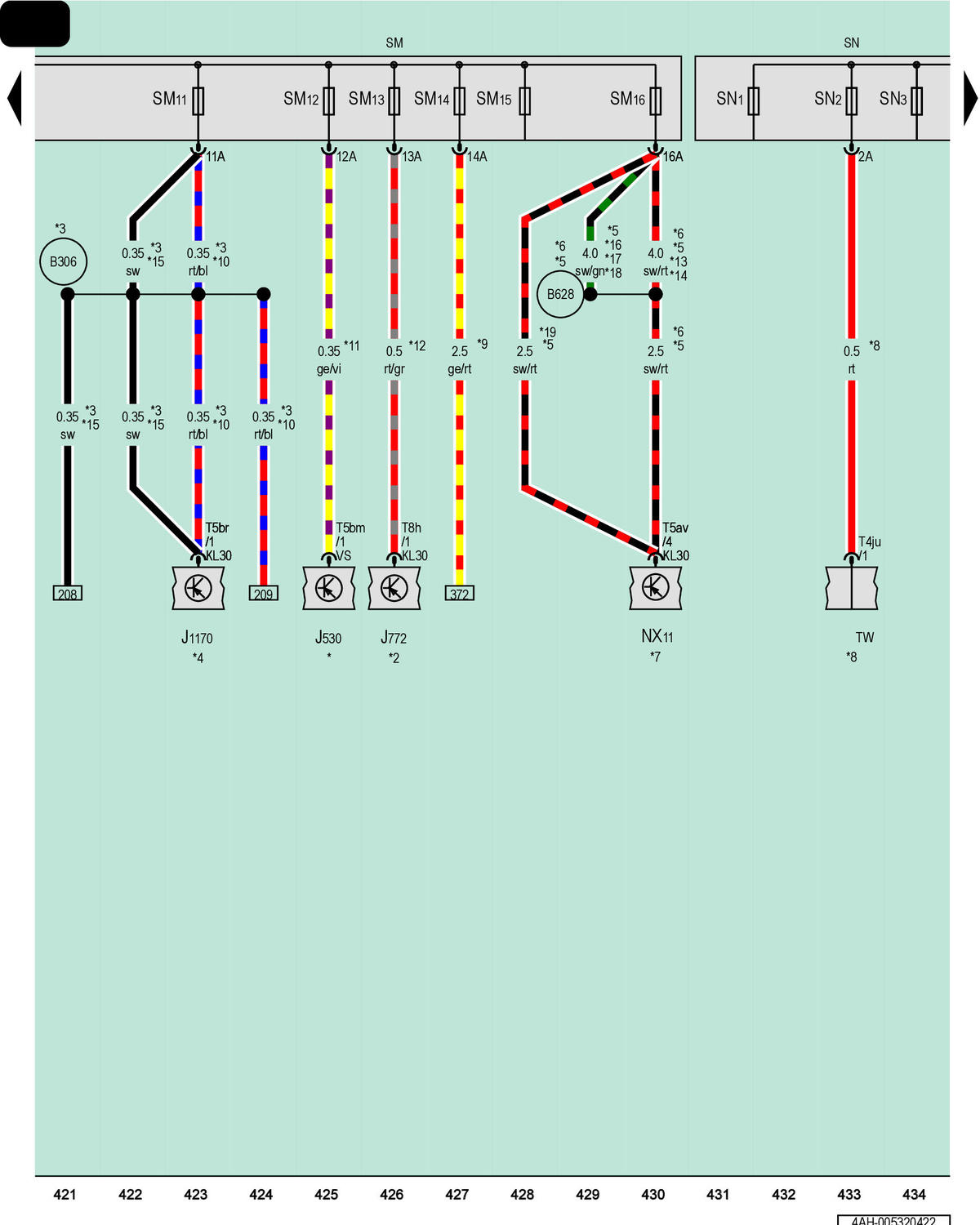

Fuse Panel M, Fuse Panel N
J530
Garage Door Opener Control Module
J772
Rearview Camera System Control Module
J1170
Near Field Communication Control Module 2
NX11
Right Front Seat Belt
SM
Fuse Panel M
SN1
Fuse 1 on Fuse Panel N
SN2
Fuse 2 on Fuse Panel N
SN3
Fuse 3 on Fuse Panel N
SM11
Fuse 11 on Fuse Panel M
SM12
Fuse 12 on Fuse Panel M
SM13
Fuse 13 on Fuse Panel M
SM14
Fuse 14 on Fuse Panel M
SM15
Fuse 15 on Fuse Panel M
SM16
Fuse 16 on Fuse Panel M
SN
Fuse Panel N
T4ju
4-Pin Connector, Green
T5av
5-Pin Connector, Naturally Cloudy
T5bm
5-Pin Connector, Black
T5br
5-Pin Connector, Black
T8h
8-Pin Connector, Black
TW
High-Voltage System Maintenance Connector
B306
Positive Connection 10 (30) (in Main Wiring Harness)
B628
Positive Connection 4 (15) (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for the Garage Door Opener
*2
Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)
*3
For Vehicles with Lock and Start System "Keyless Access"
*4
Refer to Applicable Wiring Diagram
*5
For Vehicles with Reversible Seat Belt Tensioners
*6
Through August 2021
*7
Refer to Applicable Airbag Wiring Diagram
*8
For Vehicles with Hybrid Drive
*9
Diameter Depends on Equipment
*10
Omitted as a Running Change
*11
For Vehicles with Garage Door Opener
*12
For Vehicles with Rearview Camera System
*13
Through November 2020
*14
From March 2021
*15
Running Change
*16
From November 2020
*17
Through March 2021
*18
For Vehicles Without China Equipment
*19
From August 2021
