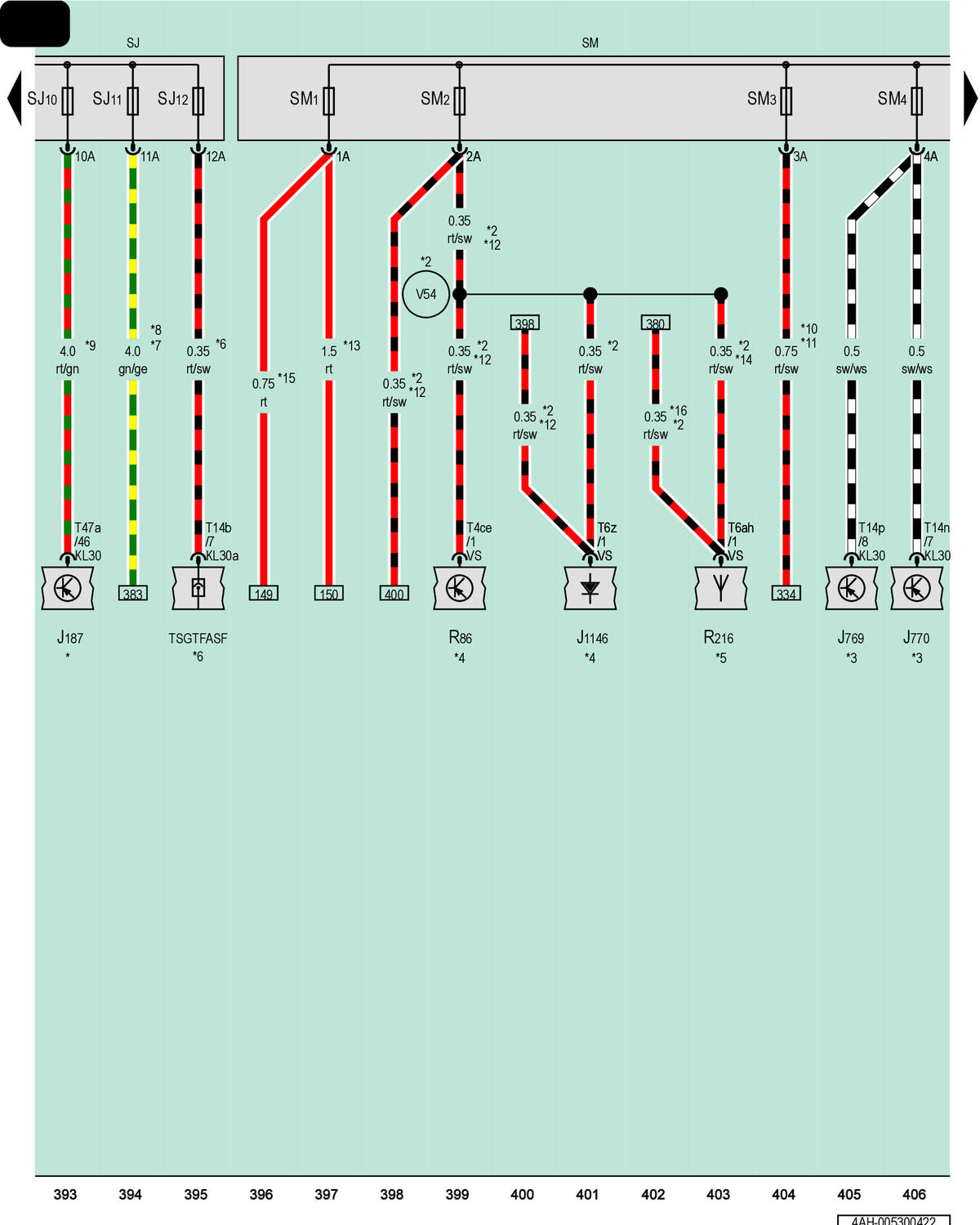

Fuse Panel J, Fuse Panel M
J187
Differential Lock Control Module
J769
Lane Change Assistance Control Module
J770
Lane Change Assistance Control Module 2
J1146
Mobile Device Charger 1
R86
Cellular Telephone Amplifier
R216
Roof Antenna
SJ
Fuse Panel J
SM
Fuse Panel M
SM1
Fuse 1 on Fuse Panel M
SM2
Fuse 2 on Fuse Panel M
SM3
Fuse 3 on Fuse Panel M
SM4
Fuse 4 on Fuse Panel M
SJ10
Fuse 10 on Fuse Panel J
SJ11
Fuse 11 on Fuse Panel J
SJ12
Fuse 12 on Fuse Panel J
T4ce
4-Pin Connector, Black
T6ah
6-Pin Connector, Black
T6z
6-Pin Connector, Black
T14b
14-Pin Connector, Black
T14n
14-Pin Connector, Black
T14p
14-Pin Connector, Black
T47a
47-Pin Connector, Black
TSGTFASF
Siren Control Module Coupling Point (in Special Purpose Vehicles)
V54
Telephone Connection 1 (in Main Wiring Harness)
*
Refer to Applicable AWD Wiring Diagram
*2
For Vehicles with a Cell Phone/Telephone Prep
*3
Refer to Applicable Lane Change Assistance Wiring Diagram
*4
Refer to Applicable Wiring Diagram
*5
Refer to Applicable Wiring Diagram for the Antennas
*6
Refer to Applicable Special Purpose Vehicle Wiring Diagram
*7
For Vehicles with Reducing Agent Metering System
*8
Diameter Depends on Equipment
*9
For AWD Vehicles
*10
For Vehicles with Lumbar Support Adjustment
*11
For Vehicles Without Adjustable Seats
*12
Depending on Equipment
*13
For Vehicles with Peripheral Camera
*14
Through November 2020
*15
For Vehicles without Peripheral Camera
*16
From November 2020
