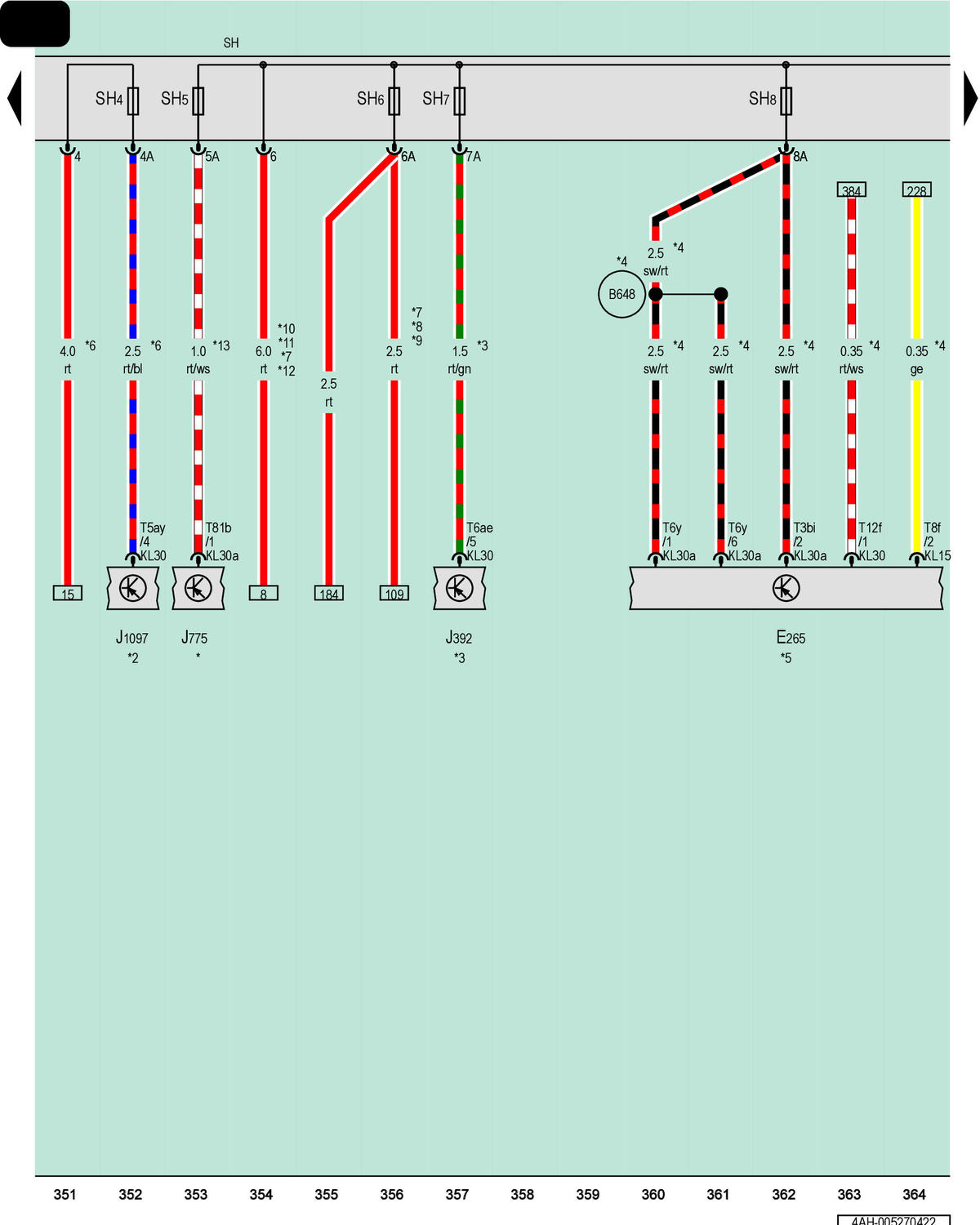

Fuse Panel H
E265
Rear A/C Display Control Head
J392
Rear Sunroof Control Module
J775
Drivetrain Control Module
J1097
Left Rear Seat Belt Tensioner Control Module
SH
Fuse Panel H
SH4
Fuse 4 on Fuse Panel H
SH5
Fuse 5 on Fuse Panel H
SH6
Fuse 6 on Fuse Panel H
SH7
Fuse 7 on Fuse Panel H
SH8
Fuse 8 on Fuse Panel H
T3bi
3-Pin Connector, Black
T5ay
5-Pin Connector, Naturally Cloudy
T6ae
6-Pin Connector, Brown
T6y
6-Pin Connector, Black
T8f
8-Pin Connector, Black
T12f
12-Pin Connector, Black
T81b
81-Pin Connector, Black
B648
Heated Seat Connection 5 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for the Self-Leveling System
*2
Refer to Applicable Airbag Wiring Diagram
*3
Avant
*4
Depending on Equipment
*5
Refer to the Applicable Heated Seats Wiring Diagram
*6
For Vehicles with Reversible Seat Belt Tensioners
*7
For Vehicles with 8-Speed Automatic Transmission
*8
For Vehicles with a 6-Cylinder Engine
*9
For Vehicles with a 4-Cylinder Engine
*10
For Vehicles with a 8-Cylinder Engine
*11
For Vehicles with 48 V System
*12
For AWD Vehicles
*13
For Vehicles with Level Control System
