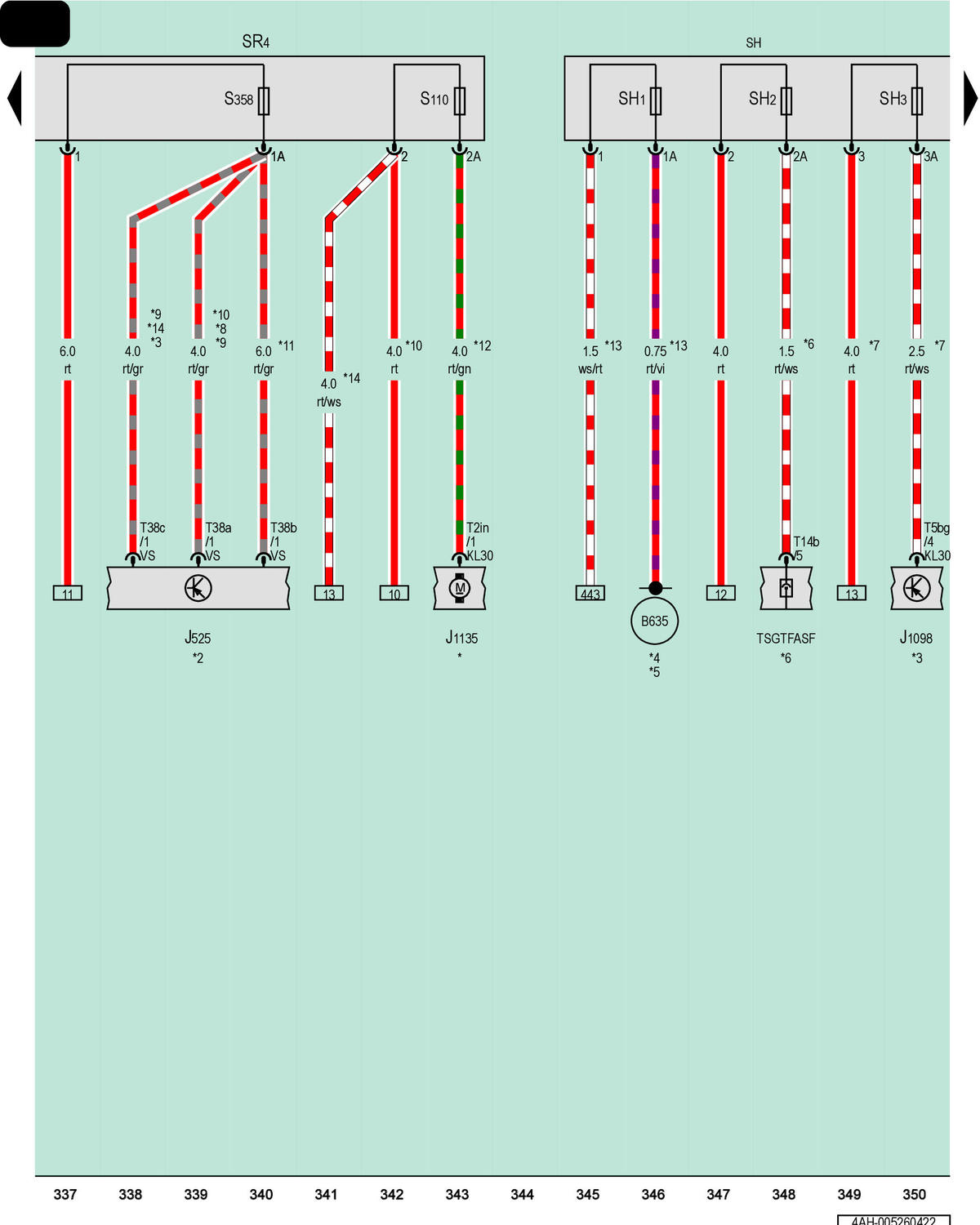

Fuse Panel H, Self-Leveling Suspension Fuse
J525
Digital Sound System Control Module
J1098
Right Rear Seat Belt Tensioner Control Module
J1135
Level Control System Compressor Electronics
SH
Fuse Panel H
SH1
Fuse 1 on Fuse Panel H
SH2
Fuse 2 on Fuse Panel H
SH3
Fuse 3 on Fuse Panel H
SR4
Relay and Fuse Panel 4
S110
Self-Leveling Suspension Fuse
S358
Digital Sound System Fuse
T2in
2-Pin Connector, Brown
T5bg
5-Pin Connector, Naturally Cloudy
T14b
14-Pin Connector, Black
T38a
38-Pin Connector, Black
T38b
38-Pin Connector, Black
T38c
38-Pin Connector, Black
TSGTFASF
Siren Control Module Coupling Point (in Special Purpose Vehicles)
B635
Positive Connection 3 (87) (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for the Self-Leveling System
*2
Refer to Applicable Sound System Wiring Diagram
*3
Refer to Applicable Airbag Wiring Diagram
*4
Refer to Applicable Thermo Management Wiring Diagram
*5
Refer to Applicable High-Voltage System Wiring Diagram
*6
Refer to Applicable Special Purpose Vehicle Wiring Diagram
*7
For Vehicles with Reversible Seat Belt Tensioners
*8
For Vehicles with Standard Sound System
*9
For Vehicles with Bose Sound System
*10
Omitted as a Running Change
*11
For Vehicles with Bang & Olufsen Sound System
*12
For Vehicles with Level Control System
*13
For Vehicles with Hybrid Drive
*14
Running Change
