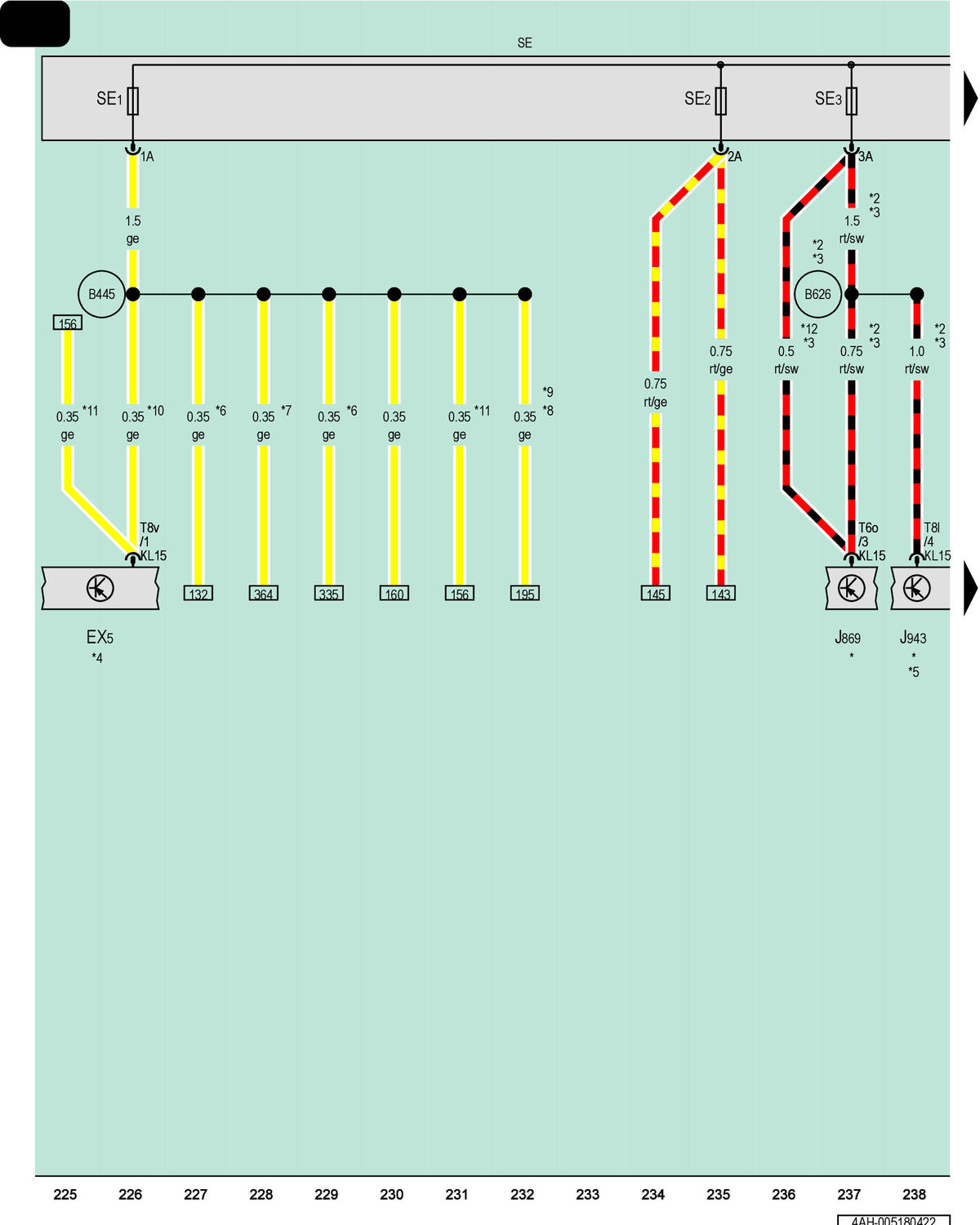

Fuse Panel E
EX5
Interior Rearview Mirror
J869
Structure-Borne Sound Control Module
J943
Engine Sound Generator Control Module
SE
Fuse Panel E
SE1
Fuse 1 on Fuse Panel E
SE2
Fuse 2 on Fuse Panel E
SE3
Fuse 3 on Fuse Panel E
T6o
6-Pin Connector, Black
T8l
8-Pin Connector, Black
T8v
8-Pin Connector, Black
B445
OBD Connection 2 (in Main Wiring Harness)
B626
Positive Connection 2 (15) (in Main Wiring Harness)
*
Refer to Applicable Engine Wiring Diagram
*2
For Vehicles with Diesel Engine
*3
For Vehicles with 48 V System
*4
Refer to Applicable Wiring Diagram
*5
For Vehicles with Engine/Motor Sound Generation
*6
For Vehicles with Seat Ventilation
*7
Depending on Equipment
*8
Optional Equipment
*9
Country-Specific
*10
For Vehicles with Automatic Dimming Interior Rearview Mirror
*11
For Vehicles with Driver Assistance Systems Front Camera
*12
For Vehicles with Gasoline Engine
J428
Control Module for Adaptive Cruise Control
J853
Night Vision System Control Module
J943
Engine Sound Generator Control Module
J1122
Laser Distance Regulation Control Module
N509
Transmission Fluid Cooling Valve

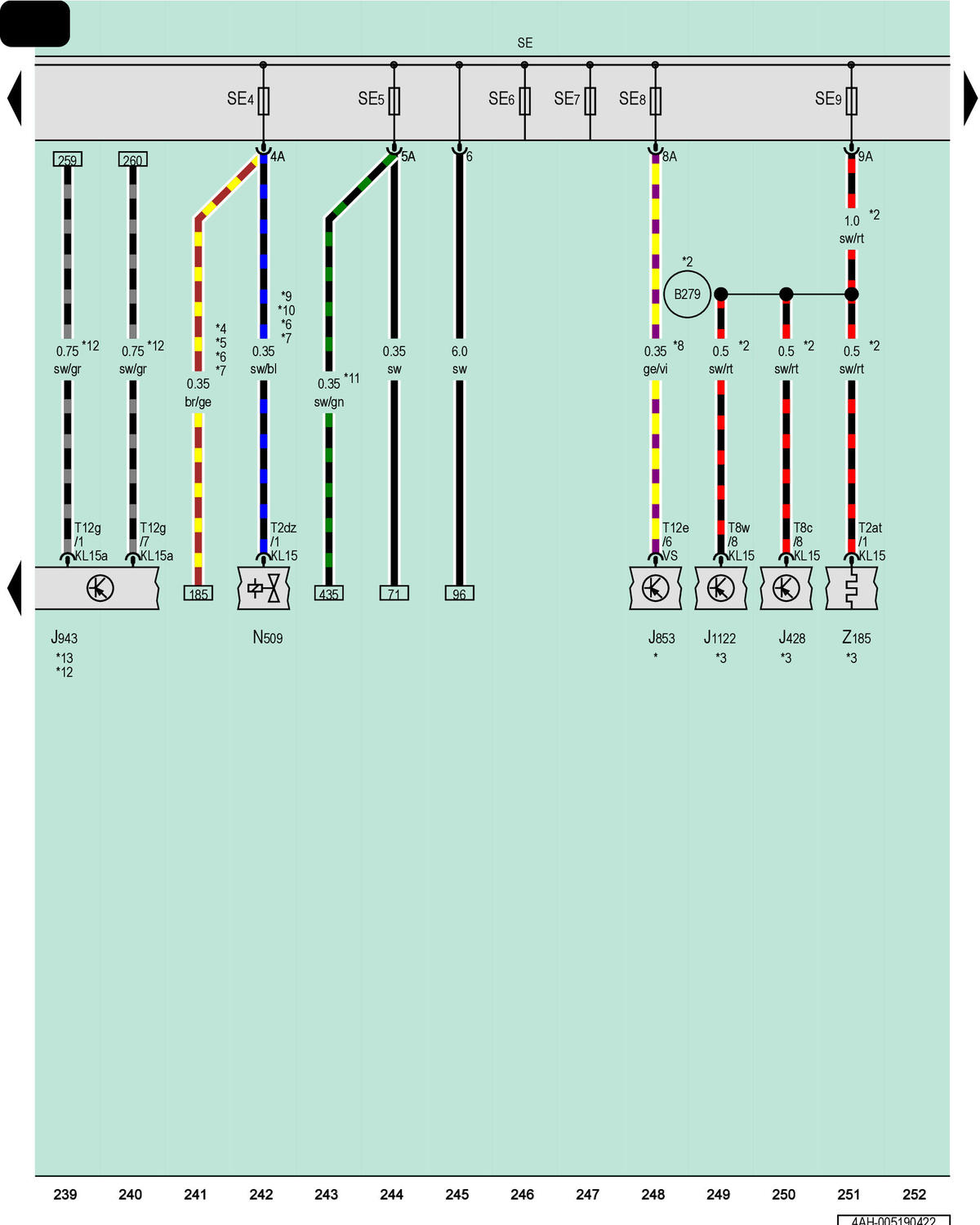

SE
Fuse Panel E
SE4
Fuse 4 on Fuse Panel E
SE5
Fuse 5 on Fuse Panel E
SE6
Fuse 6 on Fuse Panel E
SE7
Fuse 7 on Fuse Panel E
SE8
Fuse 8 on Fuse Panel E
SE9
Fuse 9 on Fuse Panel E
T2at
2-Pin Connector, Black
T2dz
2-Pin Connector, Black
T8c
8-Pin Connector, Black
T8w
8-Pin Connector, Black
T12e
12-Pin Connector, Black
T12g
12-Pin Connector, Black
Z185
Heating Element for Adaptive Cruise Control Radar Sensor
B279
Positive Connection 3 (15a) (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram
*2
For Vehicles with Adaptive Cruise Control (ACC)
*3
Refer to Applicable Wiring Diagram for Adaptive Cruise Control
*4
For Vehicles with a 8-Cylinder Engine
*5
For Vehicles with 48 V System
*6
For Vehicles with 8-Speed Automatic Transmission
*7
For AWD Vehicles
*8
For Vehicles with Night Vision System
*9
For Vehicles with a 4-Cylinder Engine
*10
For Vehicles with a 6-Cylinder Engine
*11
For Vehicles with Hybrid Drive
*12
For Vehicles with Engine/Motor Sound Generation
*13
Refer to Applicable Engine Wiring Diagram
H29
Back-Up Alert
J1088
Control Module for Left Front Object Detection Radar Sensor
J1089
Control Module for Right Front Object Detection Radar Sensor
J1113
Back-Up Alert Control Module
R242
Driver Assistance Systems Front Camera

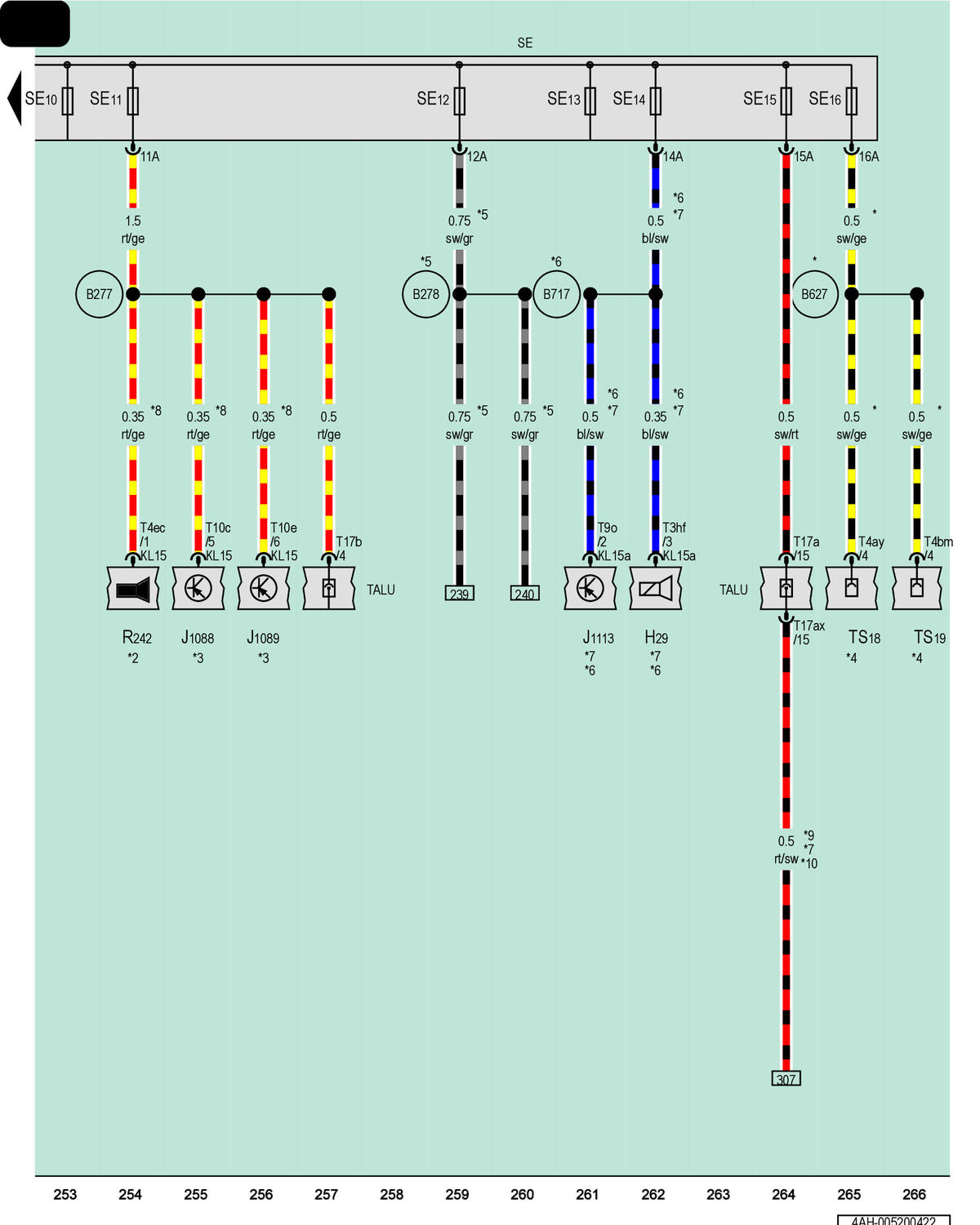

SE
Fuse Panel E
SE10
Fuse 10 on Fuse Panel E
SE11
Fuse 11 on Fuse Panel E
SE12
Fuse 12 on Fuse Panel E
SE13
Fuse 13 on Fuse Panel E
SE14
Fuse 14 on Fuse Panel E
SE15
Fuse 15 on Fuse Panel E
SE16
Fuse 16 on Fuse Panel E
T3hf
3-Pin Connector, Black
T4ay
4-Pin Connector, Black
T4bm
4-Pin Connector, Black
T4ec
4-Pin Connector, Black
T9o
9-Pin Connector, Brown
T10c
10-Pin Connector, Black
T10e
10-Pin Connector, Black
T17a
17-Pin Connector, White
T17ax
17-Pin Connector, White
T17b
17-Pin Connector, Blue
TALU
Coupling Point on Left A-Pillar, Bottom
TS18
Driver Seat Coupling Point
TS19
Front Passenger Seat Coupling Point
B277
Positive Connection 1 (15a) (in Main Wiring Harness)
B278
Positive Connection 2 (15a) (in Main Wiring Harness)
B627
Positive Connection 3 (15) (in Main Wiring Harness)
B717
Parking Aid Connection (in Main Wiring Harness)
*
For Vehicles with Rear Seat Entertainment (RSE)
*2
Refer to the Applicable Driver Assistance Systems Front Camera Wiring Diagram
*3
Refer to Applicable Wiring Diagram
*4
Refer to the Applicable Multimedia System Wiring Diagram
*5
For Vehicles with Engine/Motor Sound Generation
*6
Through July 2020
*7
Depending on Equipment
*8
For Driver Assistance System
*9
Optional Equipment
*10
From June 2021
