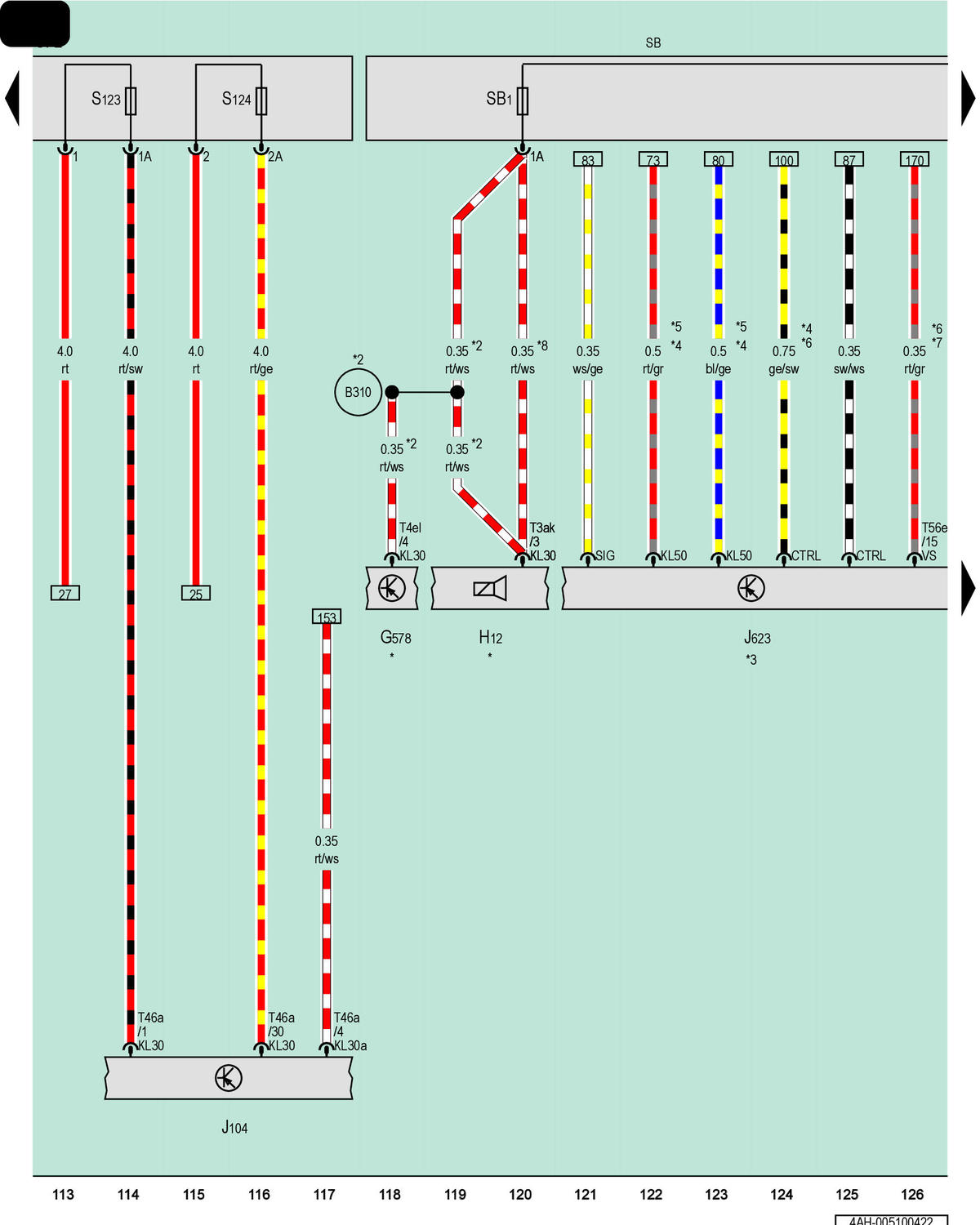

Fuse Panel B, Relay And Fuse Panel 2, Abs Control Module Fuse 1, Abs Control Module Fuse 2
G578
Anti-Theft Alarm System Sensor
H12
Alarm Horn
J104
ABS Control Module
J623
Engine/Motor Control Module
SB
Fuse Panel B
SB1
Fuse 1 (On Fuse Panel B)
SR2
Relay and Fuse Panel 2
S123
ABS Control Module Fuse 1
S124
ABS Control Module Fuse 2
T3ak
3-Pin Connector, Black
T4el
4-Pin Connector, Black
T46a
46-Pin Connector, Black
T56e
56-Pin Connector, Black
B310
Positive Connection 14 (30) (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram
*2
For Vehicles with Anti-Theft Alarm System and Interior Monitoring and Towing Prevention
*3
Refer to Applicable Engine Wiring Diagram
*4
Diameter Depends on Equipment
*5
The Color of the Wires Depends on Vehicle Equipment
*6
For Vehicles with Gasoline Engine
*7
For Vehicles with a 8-Cylinder Engine
*8
For Vehicles with Anti-Theft Alarm System
