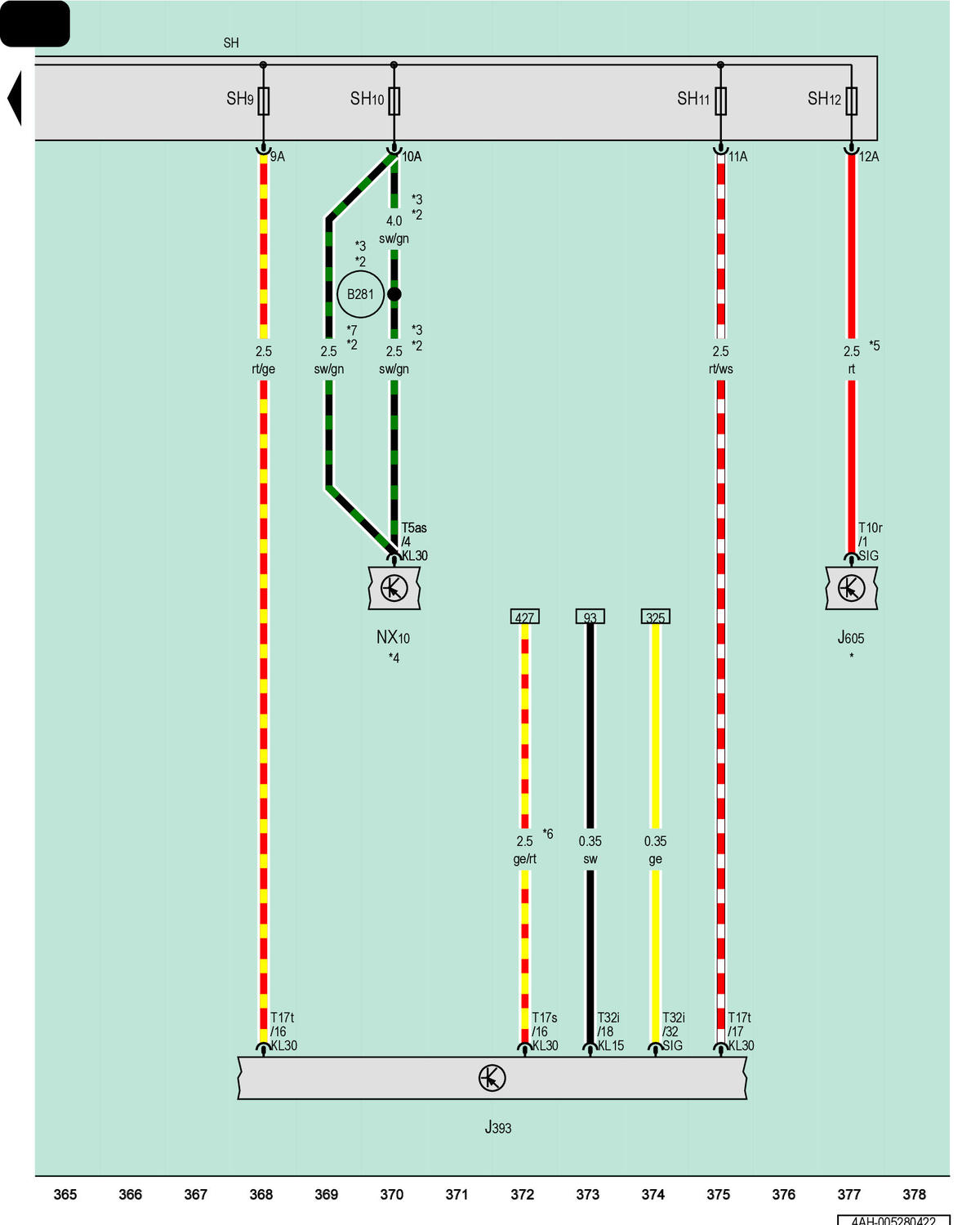

Comfort System Central Control Module, Fuse Panel H

Courtesy of AUDI OF AMERICA, LLC

J393

Comfort System Central Control Module

J605

Rear Lid Control Module

NX10

Left Front Seat Belt

SH

Fuse Panel H

SH9

Fuse 9 on Fuse Panel H

SH10

Fuse 10 on Fuse Panel H

SH11

Fuse 11 on Fuse Panel H

SH12

Fuse 12 on Fuse Panel H

T5as

5-Pin Connector, Naturally Cloudy

T10r

10-Pin Connector, Black

T17s

17-Pin Connector, Black

T17t

17-Pin Connector, Brown

T32i

32-Pin Connector, Naturally Cloudy

B281

Positive Connection 5 (15a) (in Main Wiring Harness)

*

Refer to Applicable Power Rear Lid Wiring Diagram

*2

For Vehicles with Reversible Seat Belt Tensioners

*3

Through August 2021

*4

Refer to Applicable Airbag Wiring Diagram

*5

For Vehicles with Rear Lid Closing Aid

*6

Diameter Depends on Equipment

*7

From August 2021
