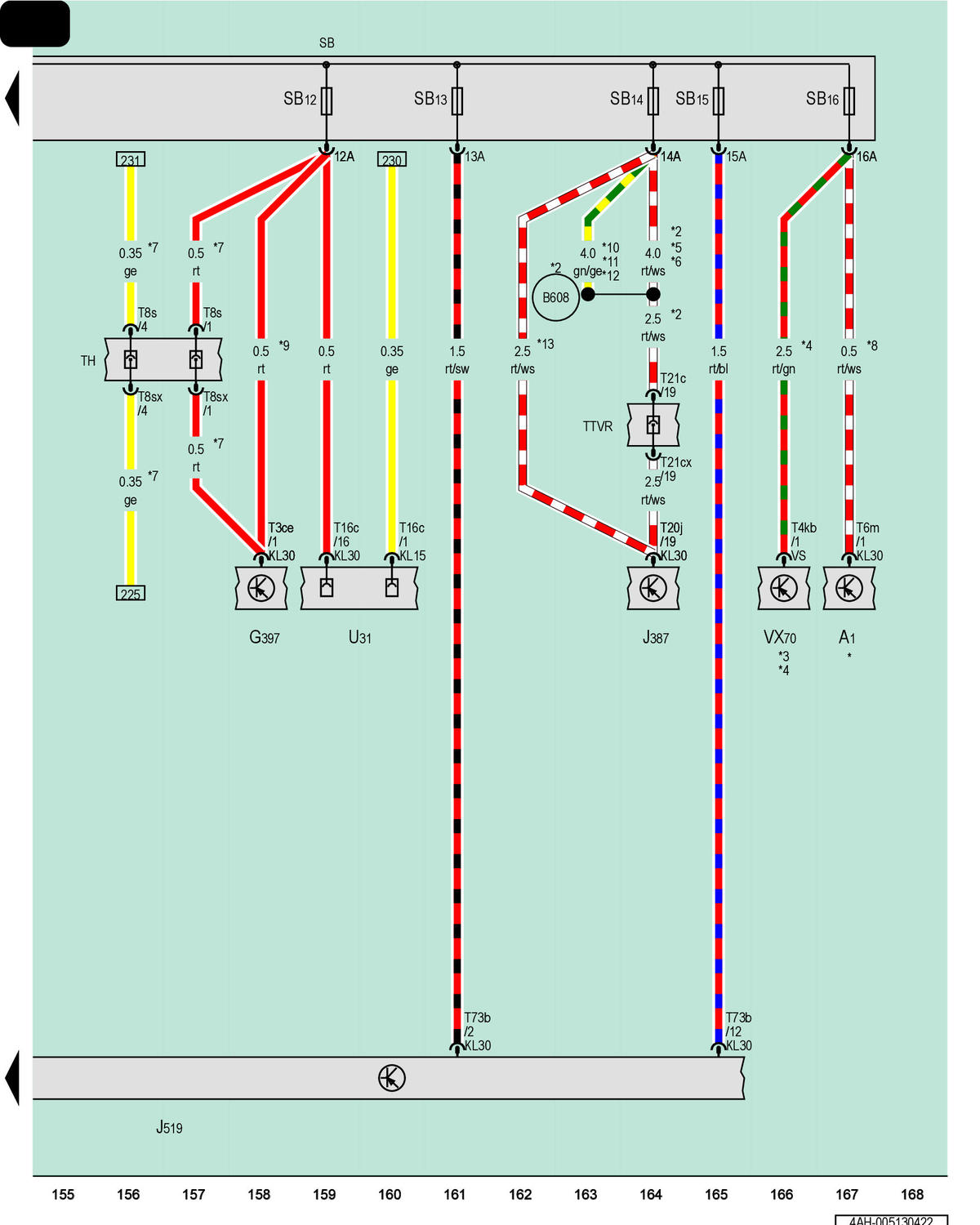

Auxiliary Battery, Vehicle Electrical System Control Module, Fuse Panel B
A1
Auxiliary Battery, In the Plenum Chamber
G397
Rain/Light Recognition Sensor
J387
Front Passenger Door Control Module
J519
Vehicle Electrical System Control Module
SB
Fuse Panel B
SB12
Fuse 12 (On Fuse Panel B)
SB13
Fuse 13 (On Fuse Panel B)
SB14
Fuse 14 (On Fuse Panel B)
SB15
Fuse 15 (On Fuse Panel B)
SB16
Fuse 16 (On Fuse Panel B)
T3ce
3-Pin Connector, Black
T4kb
4-Pin Connector, Black
T6m
6-Pin Connector, Black
T8s
8-Pin Connector, Black
T8sx
8-Pin Connector, Black
T16c
16-Pin Connector
T20j
20-Pin Connector, White
T21c
21-Pin Connector, Black
T21cx
21-Pin Connector, Black
T73b
73-Pin Connector, Black, Black
TH
Coupling Point on Roof
TTVR
Right Front Door Coupling Point
U31
Diagnostic Connection
VX70
Brake System Pressure Reservoir
B608
Connection 4 (in Interior Wiring Harness)
*
Refer to Applicable Battery Wiring Diagram
*2
Through August 2021
*3
Refer to Applicable ABS Wiring Diagram
*4
For Vehicles with Hybrid Drive
*5
Through November 2020
*6
From March 2021
*7
For Vehicles with Driver Assistance Systems Front Camera
*8
For Vehicles with 12 V Hybrid System
*9
For Vehicles Without Driver Assistance Systems Front Camera
*10
From November 2020
*11
Through March 2021
*12
For Vehicles Without China Equipment
*13
From August 2021
