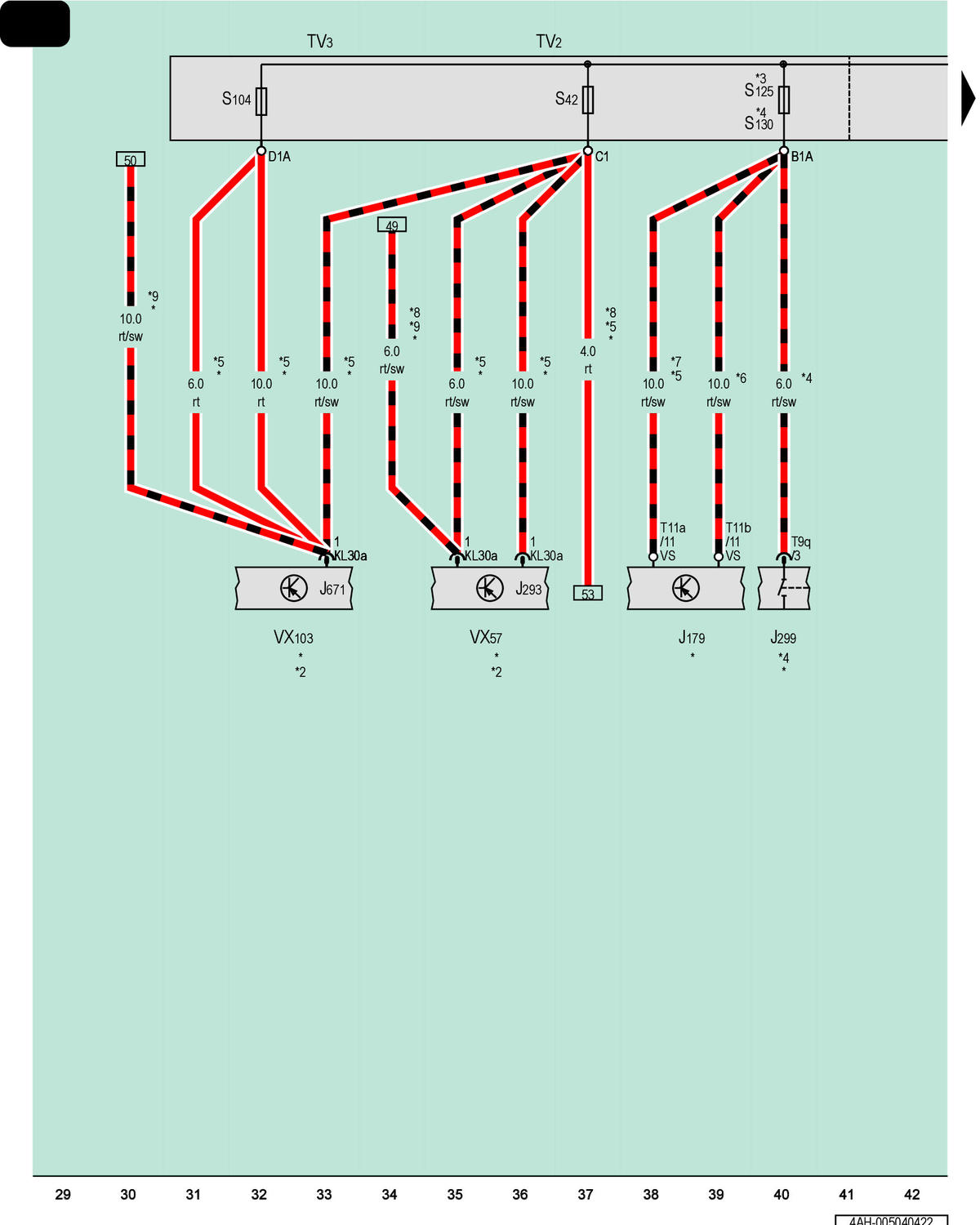

Automatic Glow Time Control Module, Secondary Air Injection Pump Relay, Terminal 30 Wire Junction, Terminal 30A Wire Junction, Radiator Fan, Radiator Fan 2
J179
Automatic Glow Time Control Module
J293
Radiator Fan Control Module
J299
Secondary Air Injection Pump Relay
J671
Radiator Fan Control Module 2
S42
Radiator Fan Fuse
S104
Radiator Fan Second Speed Fuse
S125
Glow Plug Fuse
S130
Secondary Air Injection Pump Fuse
T9q
9-Pin Connector
T11a
11-Pin Connector
T11b
11-Pin Connector
TV2
Terminal 30 Wire Junction
TV3
Terminal 30a Wire Junction
VX57
Radiator Fan
VX103
Radiator Fan 2
*
Refer to Applicable Engine Wiring Diagram
*2
Pre-Wired Component
*3
For Vehicles with Diesel Engine
*4
For Vehicles with Gasoline Engine
*5
Depending on Equipment
*6
For Vehicles with a 2.0L Engine
*7
For Vehicles with a 3.0L Engine
*8
Diameter Depends on Equipment
*9
For Vehicles with Low Fan Output
