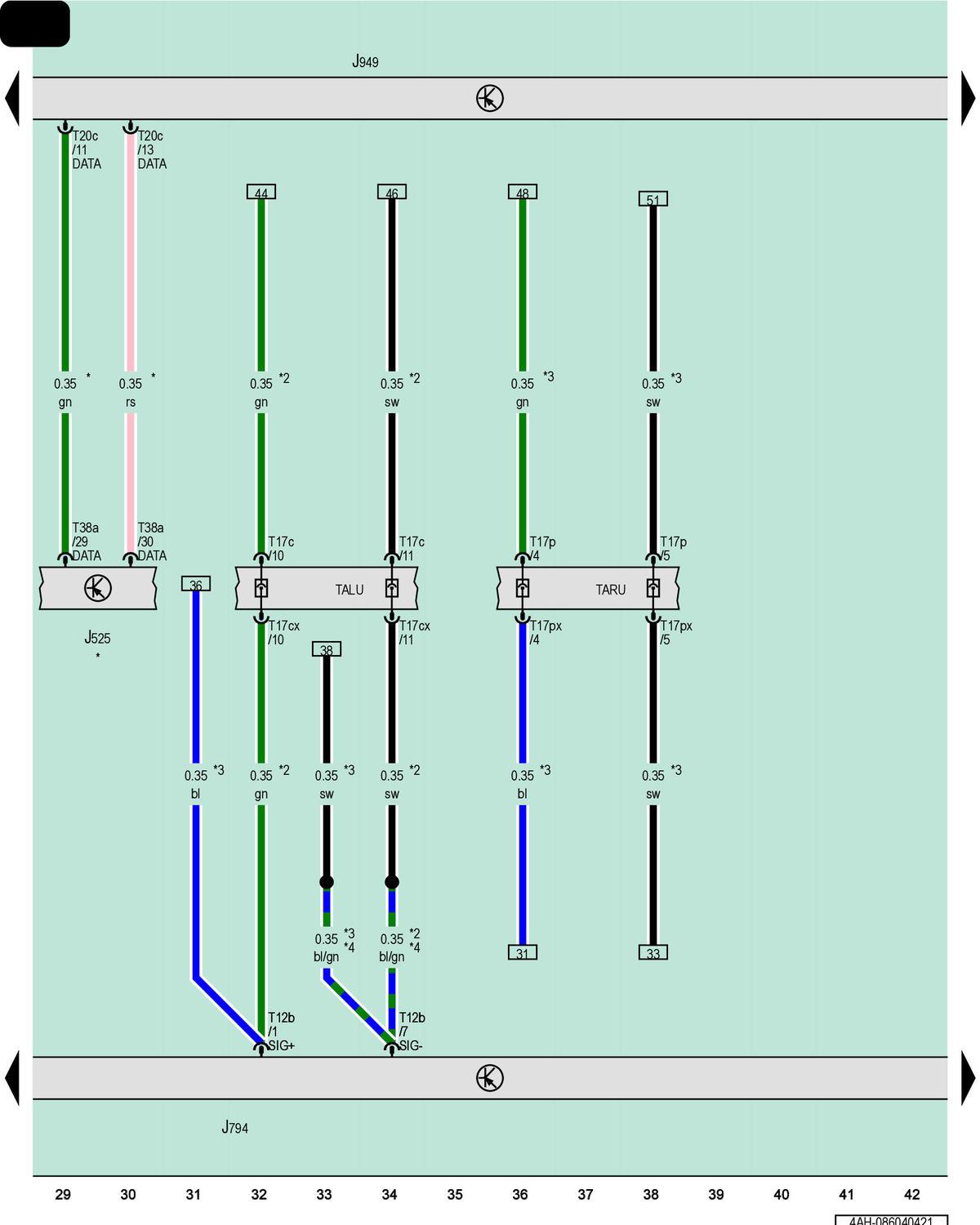

Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

J794

Information Electronics Control Module 1

J949

Control Module for Emergency Call Module and Communication Unit

T12b

12-Pin Connector, Blue

T17c

17-Pin Connector, Red

T17cx

17-Pin Connector, Red

T17p

17-Pin Connector, Black

T17px

17-Pin Connector, Black

T20c

20-Pin Connector, Naturally Cloudy

T38a

38-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

TARU

Coupling Point on Right A-Pillar, Bottom

*

Refer to Applicable Sound System Wiring Diagram

*2

For LHD Vehicles

*3

For RHD Vehicles

*4

Running Change
