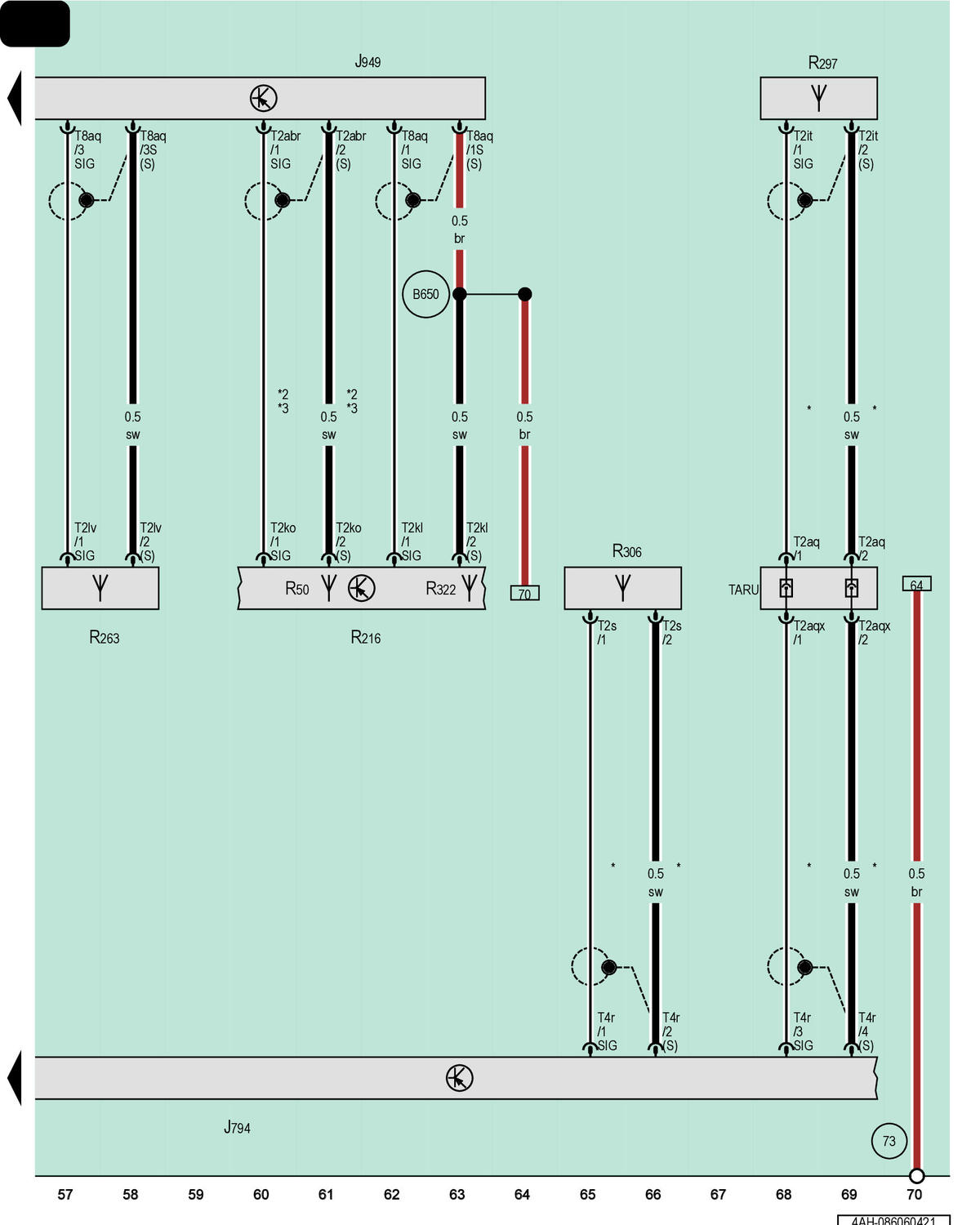

Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, Roof Antenna, Emergency Call Module Antenna, LTE Antenna 1, LTE Antenna 2
J794
Information Electronics Control Module 1
J949
Control Module for Emergency Call Module and Communication Unit
R50
GPS Antenna
R216
Roof Antenna
R263
Emergency Call Module Antenna, Behind the Right Rear Bumper
R297
LTE Antenna 1, Behind the Right Rear Bumper
R306
LTE Antenna 2, In the Instrument Panel
R322
Emergency Call Module Antenna 2
T2abr
2-Pin Connector, Pink
T2aq
2-Pin Connector, Purple
T2aqx
2-Pin Connector, Purple
T2it
2-Pin Connector, Purple
T2kl
2-Pin Connector, Purple
T2ko
2-Pin Connector, Blue
T2lv
2-Pin Connector, Purple
T2s
2-Pin Connector, Purple
T4r
4-Pin Connector, Purple
T8aq
8-Pin Connector, Black
TARU
Coupling Point on Right A-Pillar, Bottom
73
Ground Connection on Rear Roof Bow
B650
Connection 8 (in Interior Wiring Harness)
*
For Vehicles with Mobile Online Services
*2
For Vehicles with Vehicle Positioning System
*3
For Vehicles Without a Navigation System
