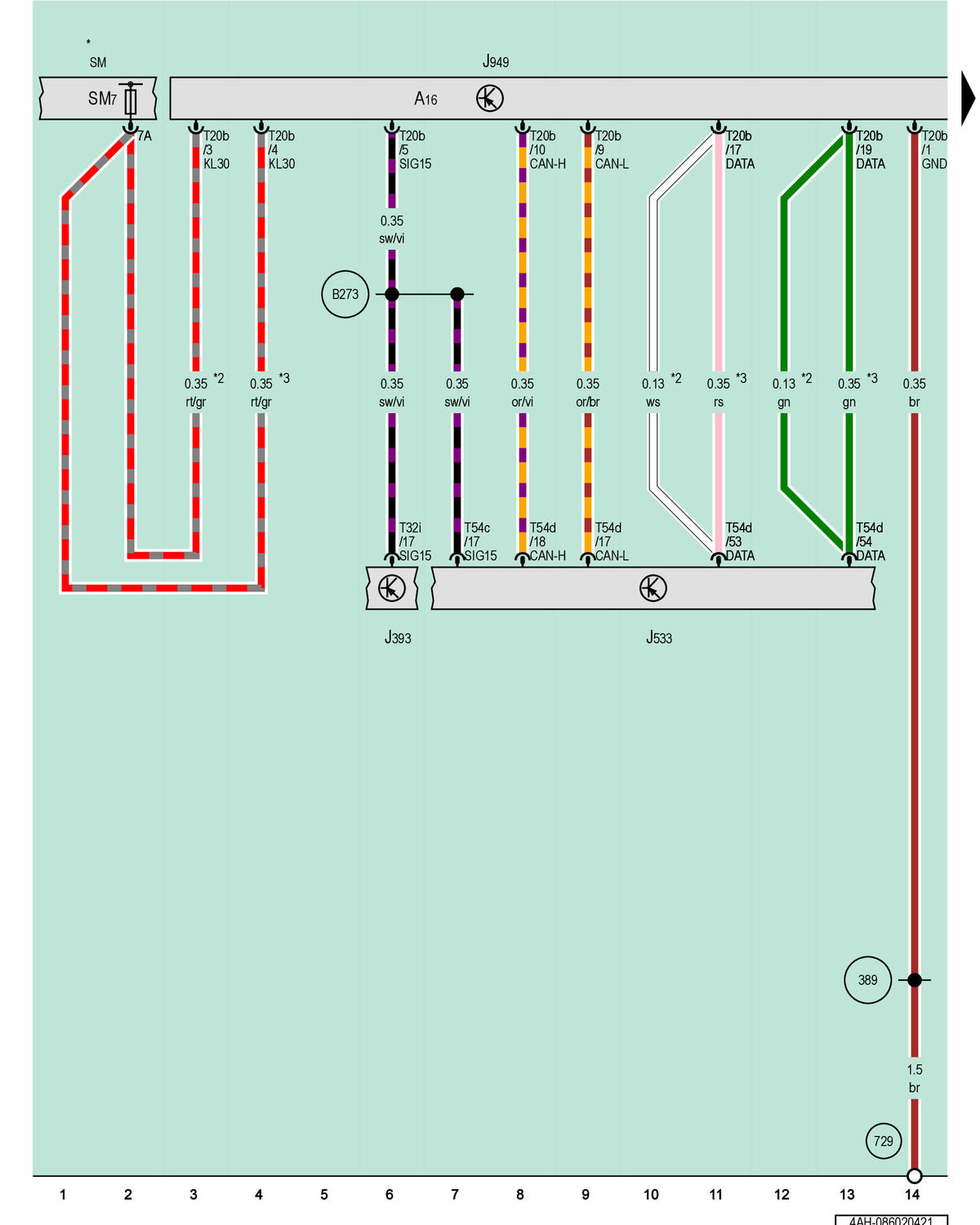

Comfort System Central Control Module, Data Bus On Board Diagnostic Interface, Control Module For Emergency Call Module And Communication Unit

Courtesy of AUDI OF AMERICA, LLC

A16

Telematics Emergency Battery

J393

Comfort System Central Control Module

J533

Data Bus on Board Diagnostic Interface

J949

Control Module for Emergency Call Module and Communication Unit

Fuse Panel M

SM7

Fuse 7 on Fuse Panel M

T20b

20-Pin Connector, Black

T32i

32-Pin Connector, Naturally Cloudy, Black

T54c

54-Pin Connector, Black

T54d

54-Pin Connector, Gray

389

Ground Connection 24 (in Main Wiring Harness)

729

Ground Connection on Left Rear Wheel Housing

B273

Positive Connection (15) (in Main Wiring Harness)

Refer to Applicable Wiring Diagram for Fuse Positions

Omitted as a Running Change

Running Change
