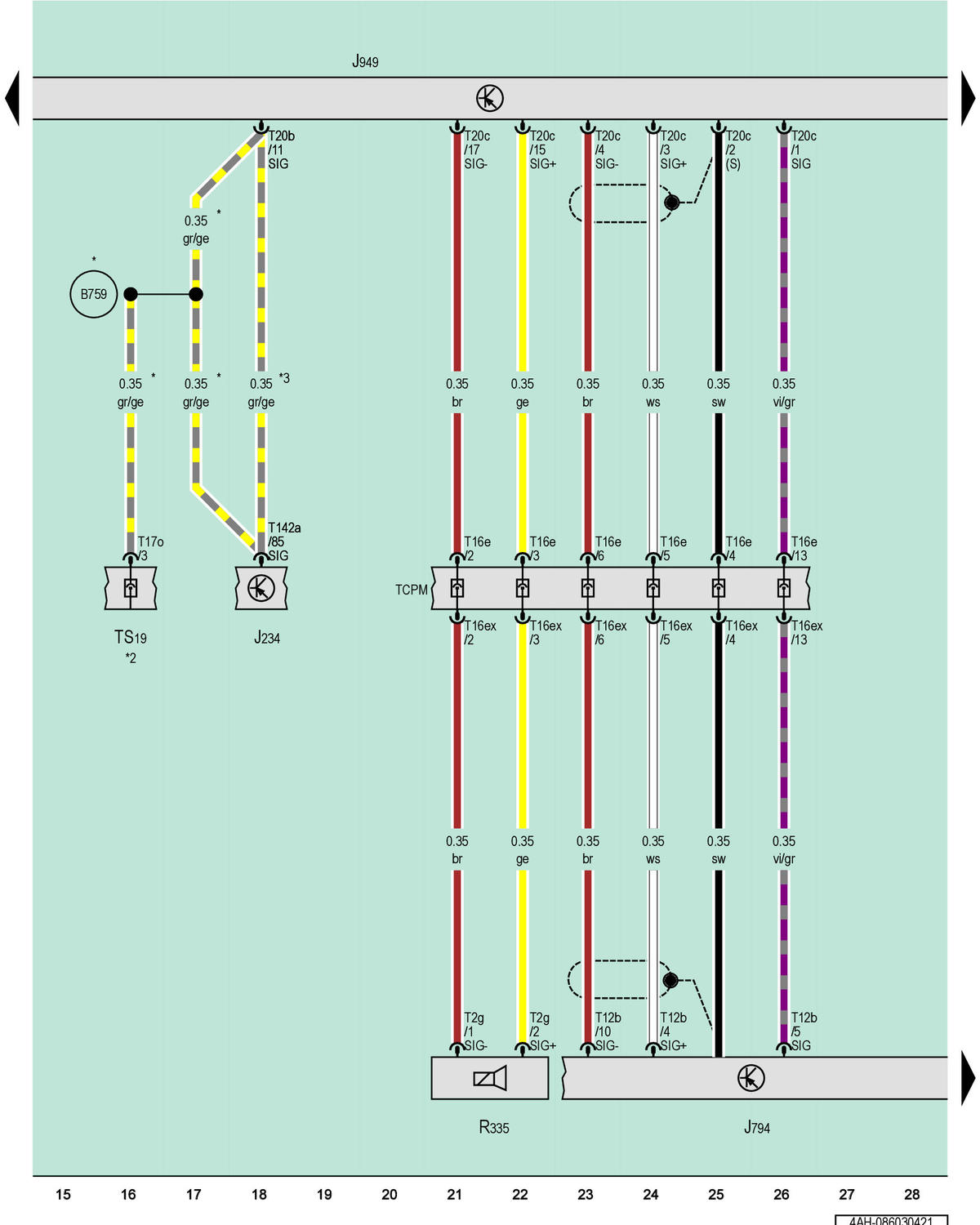

Airbag Control Module, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, Emergency Call Module Speaker

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

J794

Information Electronics Control Module 1

J949

Control Module for Emergency Call Module and Communication Unit

R335

Emergency Call Module Speaker

T2g

2-Pin Connector, Black

T12b

12-Pin Connector, Blue

T16e

16-Pin Connector, Black

T16ex

16-Pin Connector, Black

T17o

17-Pin Connector, Red

T20b

20-Pin Connector, Black

T20c

20-Pin Connector, Naturally Cloudy

T142a

142-Pin Connector, Yellow

TCPM

Coupling Point on Instrument Panel, Center

TS19

Front Passenger Seat Coupling Point

B759

Crash Signal Connection (in Main Wiring Harness)

*

For Vehicles with Power Memory Front Seats

*2

Refer to Applicable Seat Adjustment Wiring Diagram

*3

For Vehicles with Power Memory Driver Side Seats
