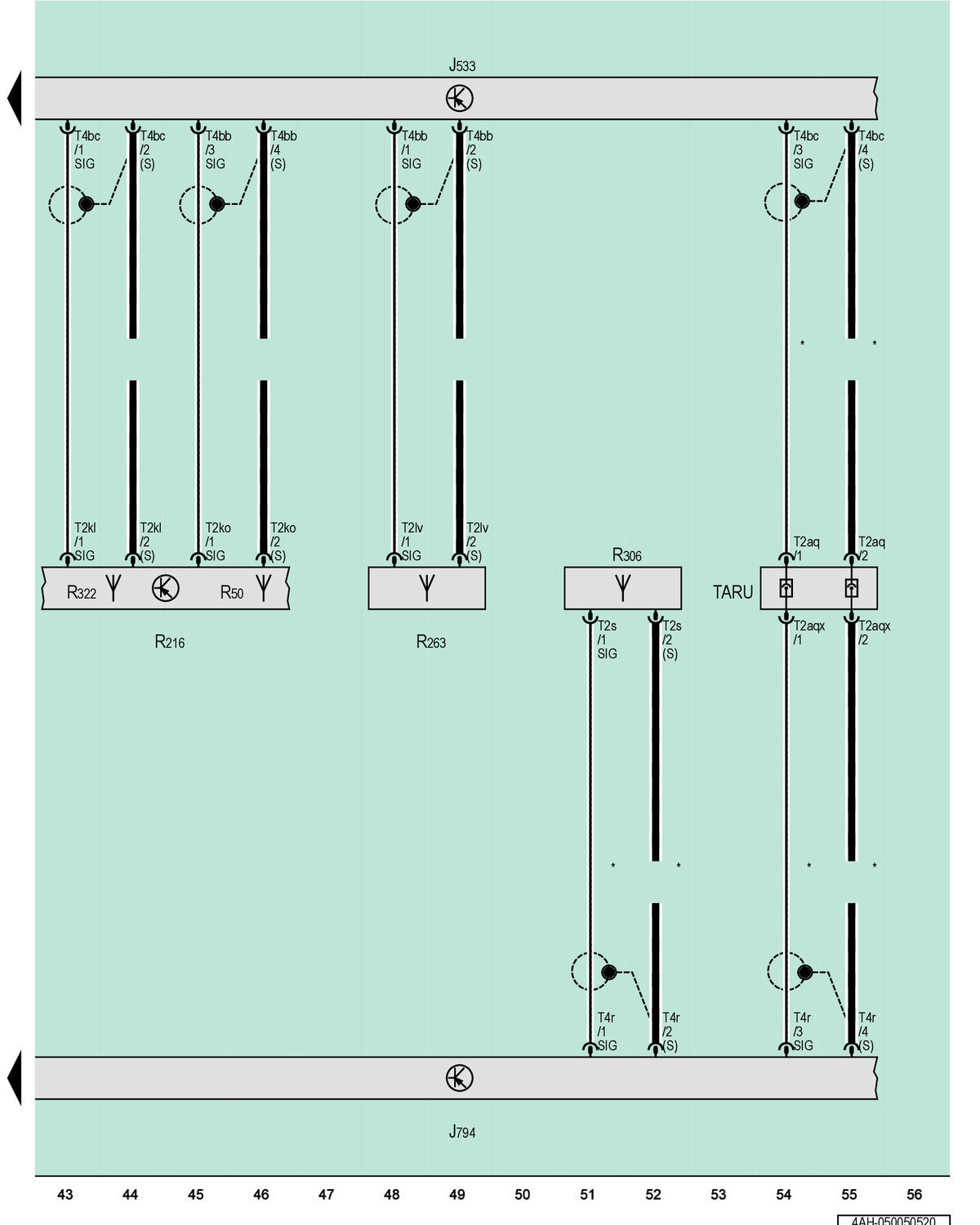

Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Roof Antenna, Emergency Call Module Antenna, LTE Antenna 2

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J794

Information Electronics Control Module 1

R50

GPS Antenna

R216

Roof Antenna

R263

Emergency Call Module Antenna, Behind the Right Rear Bumper

R306

LTE Antenna 2, Behind the Right Rear Bumper

R322

Emergency Call Module Antenna 2

T2aq

2-Pin Connector, Purple

T2aqx

2-Pin Connector, Purple

T2kl

2-Pin Connector, Purple

T2ko

2-Pin Connector, Blue

T2lv

2-Pin Connector, Purple

T2s

2-Pin Connector, Purple

T4bb

4-Pin Connector, Pink

T4bc

4-Pin Connector, Purple

T4r

4-Pin Connector, Purple

TARU

Coupling Point on Right A-Pillar, Bottom

*

For Vehicles with Mobile Online Services
