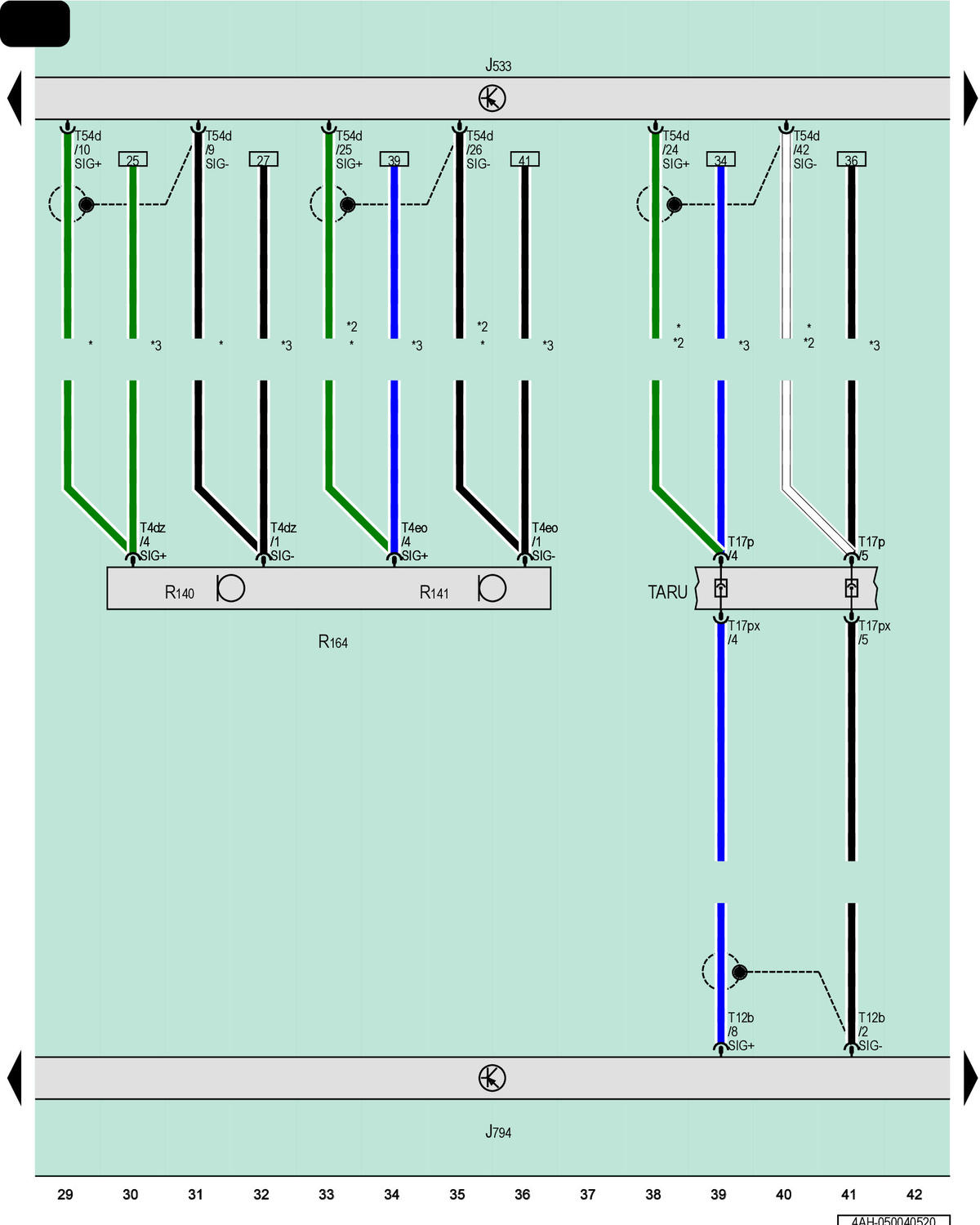

Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Left Front Microphone, Right Front Microphone, Microphone Unit In Front Roof Module
J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
R140
Left Front Microphone
R141
Right Front Microphone
R164
Microphone Unit in Front Roof Module
T4dz
4-Pin Connector, Gray
T4eo
4-Pin Connector, Blue
T12b
12-Pin Connector, Blue
T17p
17-Pin Connector, Black
T17px
17-Pin Connector, Black
T54d
54-Pin Connector, Blue
TARU
Coupling Point on Right A-Pillar, Bottom
*
For Vehicles with Emergency Call Module
*2
For Vehicles with Russia Equipment
*3
For Vehicles Without Emergency Call Module
