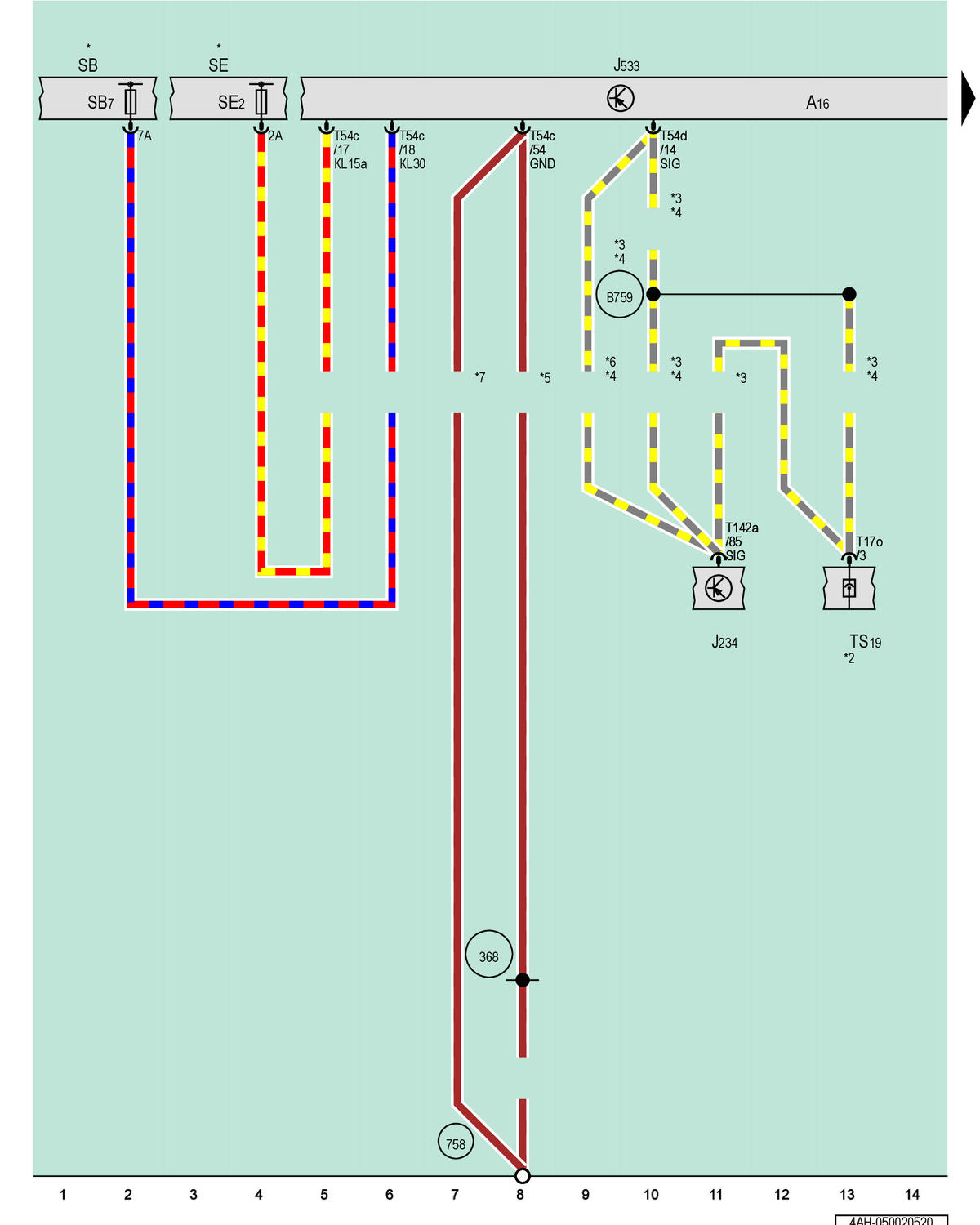

Airbag Control Module, Data Bus On Board Diagnostic Interface
A16
Telematics Emergency Battery
J234
Airbag Control Module
J533
Data Bus on Board Diagnostic Interface
SB
Fuse Panel B
SE
Fuse Panel E
SE2
Fuse 2 on Fuse Panel E
SB7
Fuse 7 (On Fuse Panel B)
T17o
17-Pin Connector, Red
T54c
54-Pin Connector, Black
T54d
54-Pin Connector, Blue
T142a
142-Pin Connector, Yellow
TS19
Front Passenger Seat Coupling Point
368
Ground Connection 3 (in Main Wiring Harness)
758
Ground Connection 3 on Center Tunnel
B759
Crash Signal Connection (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Refer to Applicable Seat Adjustment Wiring Diagram
*3
For Vehicles with Power Memory Driver Side Seats
*4
For Vehicles with Emergency Call Module
*5
Omitted as a Running Change
*6
For Vehicles with Power Memory Front Seats
*7
Running Change
