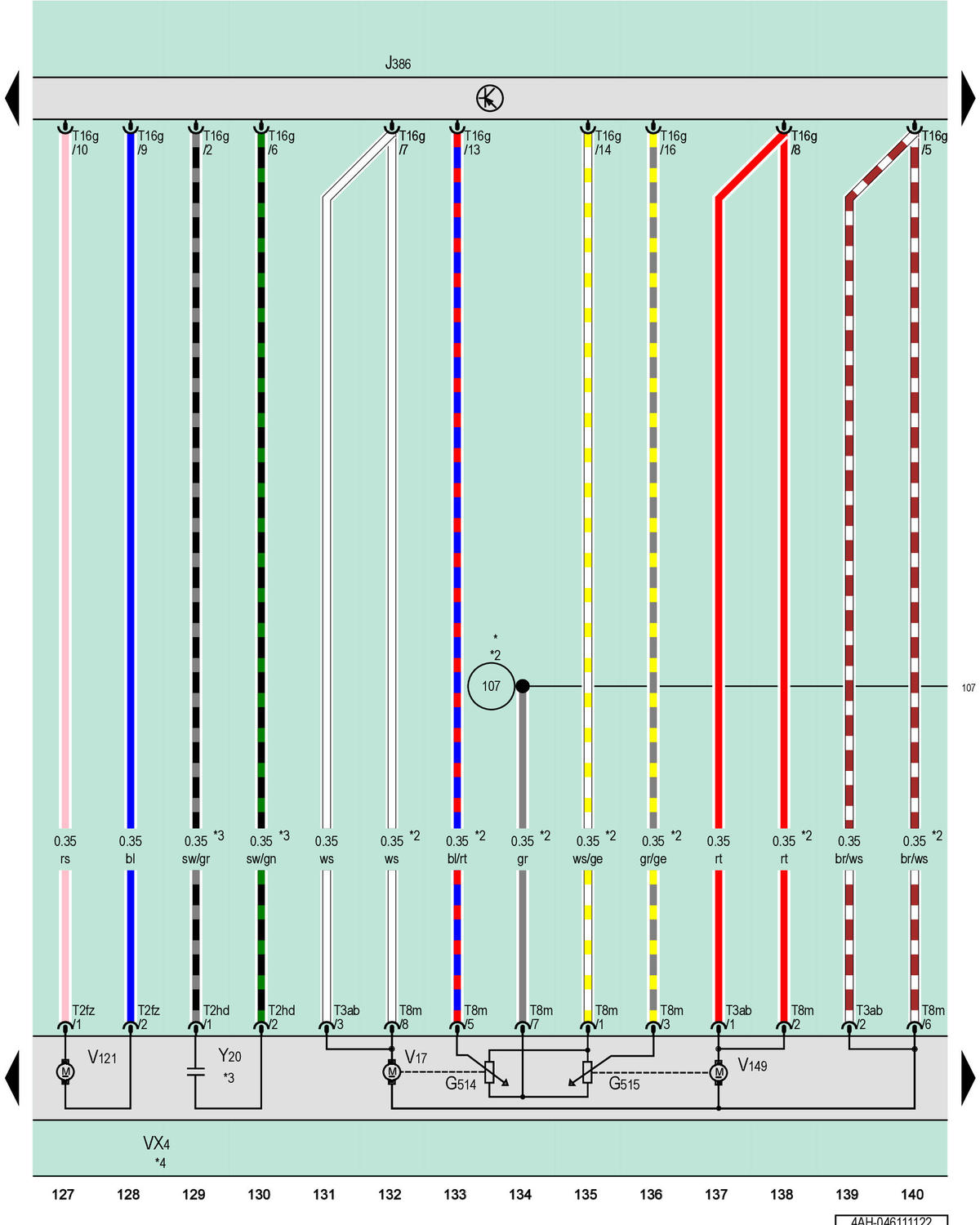

Driver Door Control Module, Driver Exterior Rearview Mirror

Courtesy of AUDI OF AMERICA, LLC

G514

Driver Exterior Rearview Mirror Horizontal Position Sensor

G515

Driver Exterior Rearview Mirror Vertical Position Sensor

J386

Driver Door Control Module

T2fz

2-Pin Connector

T2hd

2-Pin Connector

T3ab

3-Pin Connector

T8m

8-Pin Connector

T16g

16-Pin Connector

VX4

Driver Exterior Rearview Mirror

V17

Driver Mirror Adjustment Motor 2

V121

Driver Exterior Rearview Mirror Folding Motor

V149

Driver Mirror Adjustment Motor

Y20

Driver Automatic Dimming Exterior Rearview Mirror

107

Ground Connection (in Exterior Mirror Wiring Harness)

*

For Vehicles with Lane Change Assistance

*2

For Vehicles with Memory Seats

*3

For Vehicles with Automatic Dimming Exterior Rearview Mirror

*4

Pre-Wired Component
