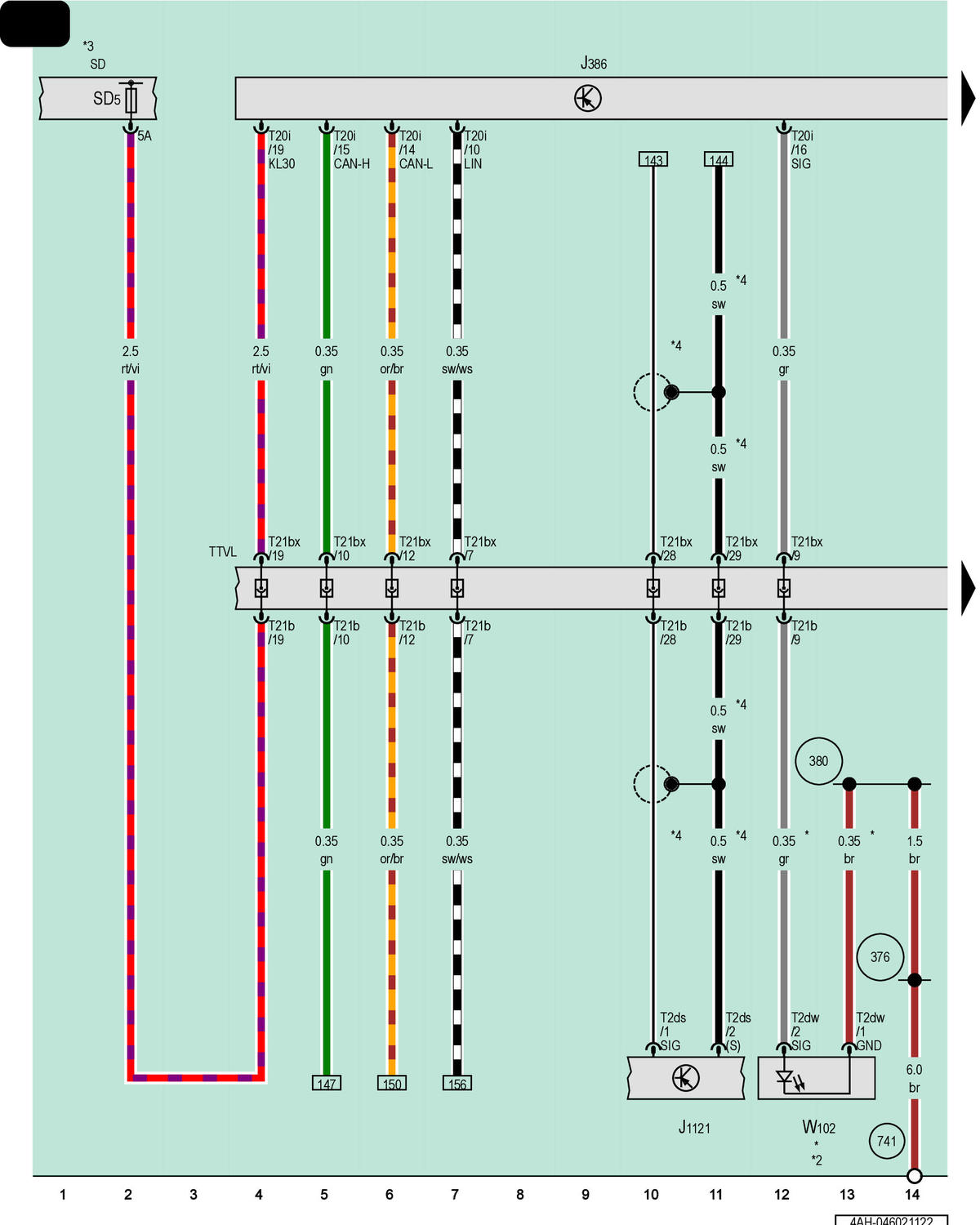

Driver Door Control Module, Driver Assistance Systems Control Module, Driver Side Sill Panel Strip Ambient Lighting Lamp
J386
Driver Door Control Module
J1121
Driver Assistance Systems Control Module
SD
Fuse Panel D
SD5
Fuse 5 (On Fuse Panel D)
T2ds
2-Pin Connector, Green
T2dw
2-Pin Connector, Black
T20i
20-Pin Connector, White
T21b
21-Pin Connector, Black
T21bx
21-Pin Connector, Black
TTVL
Left Front Door Coupling Point
W102
Driver Side Sill Panel Strip Ambient Lighting Lamp
376
Ground Connection 11 (in Main Wiring Harness)
380
Ground Connection 15 (in Main Wiring Harness)
741
Ground Connection Under Left Front Seat
*
For Vehicles with Auxiliary Lamps
*2
Pre-Wired Component
*3
Refer to Applicable Wiring Diagram for Fuse Positions
*4
For Vehicles with Peripheral Camera
