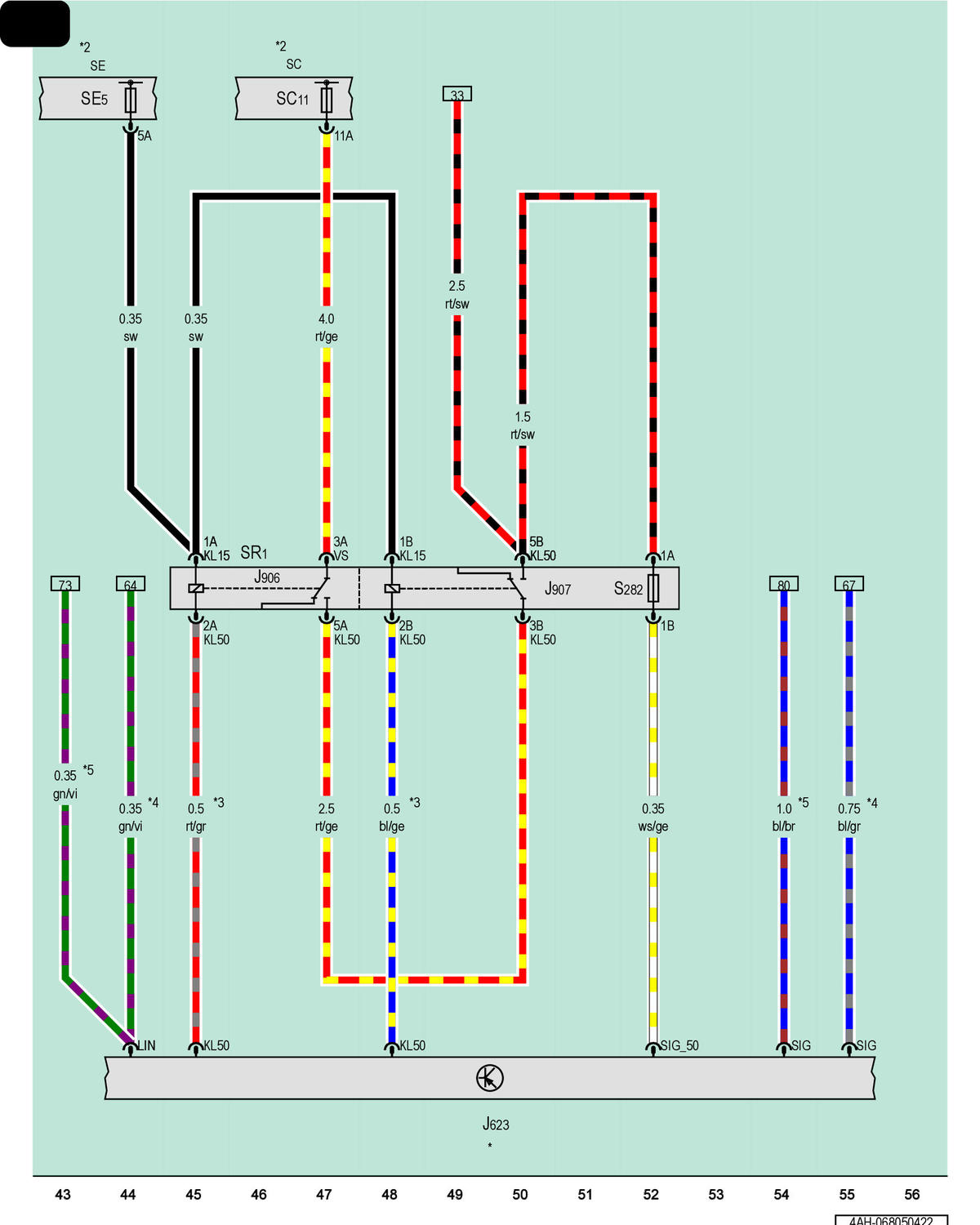

Engine/Motor Control Module, Starter Relay 1, Starter Relay 2, Relay And Fuse Panel 1, Fuse Panel C, Fuse Panel E

Courtesy of AUDI OF AMERICA, LLC

J623

Engine/Motor Control Module

J906

Starter Relay 1

J907

Starter Relay 2

SR1

Relay and Fuse Panel 1

S282

Engine Electronics Fuse

SC

Fuse Panel C

SC11

Fuse 11 (On Fuse Panel C)

SE

Fuse Panel E

SE5

Fuse 5 on Fuse Panel E

*

Refer to Applicable Engine Wiring Diagram

*2

Refer to Applicable Wiring Diagram for Fuse Positions

*3

Diameter Depends on Equipment

*4

For Vehicles with Gasoline Engine

*5

For Vehicles with Diesel Engine
