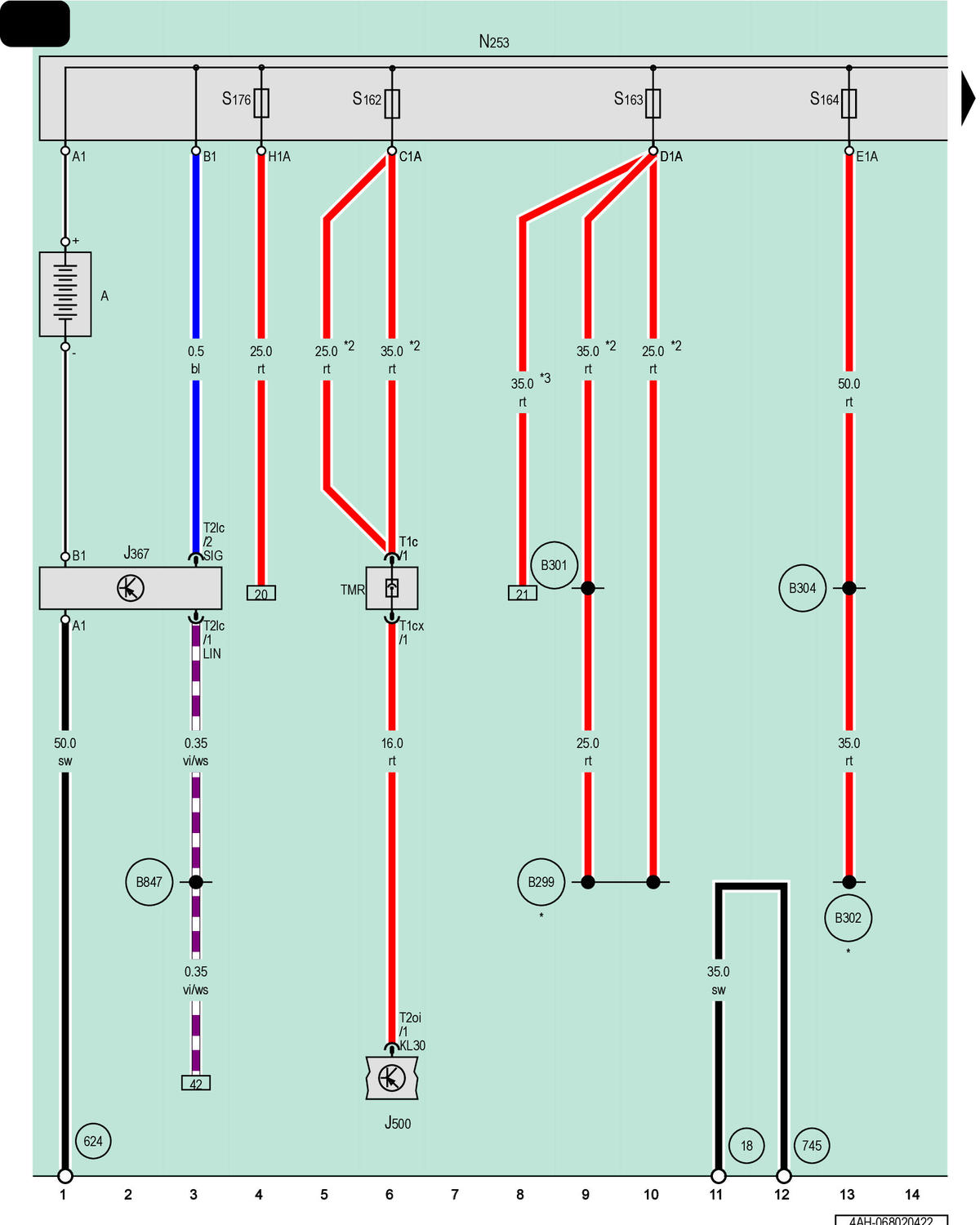

Battery, Battery Monitoring Control Module, Power Steering Control Module, Battery Interrupt Igniter

Courtesy of AUDI OF AMERICA, LLC

Battery

J367

Battery Monitoring Control Module

J500

Power Steering Control Module

N253

Battery Interrupt Igniter

S162

Fuse 1 (Terminal 30) on Battery Fuse Panel

S163

Fuse 2 (Terminal 30) on Battery Fuse Panel

S164

Fuse 3 (Terminal 30) on Battery Fuse Panel

S176

Fuse 4 (Terminal 30) on Battery Fuse Panel

T1c

1-Pin Connector, Black

T1cx

1-Pin Connector, Black

T2lc

2-Pin Connector, Black

T2oi

2-Pin Connector, Black

TMR

Coupling Point in Engine/Motor Compartment, Right

Ground Connection on Cylinder Block

624

Ground Connection near Starter Battery

745

Ground Connection 3 on Right Front Longitudinal Member

B299

Positive Connection 3 (30) (in Main Wiring Harness)

B301

Positive Connection 5 (30) (in Main Wiring Harness)

B302

Positive Connection 6 (30) (in Main Wiring Harness)

B304

Positive Connection 8 (30) (in Main Wiring Harness)

B847

LIN Bus Connection 11 (in Main Wiring Harness)

Refer to Applicable Wiring Diagram for Fuse Positions

Depending on Equipment

Optional Equipment
