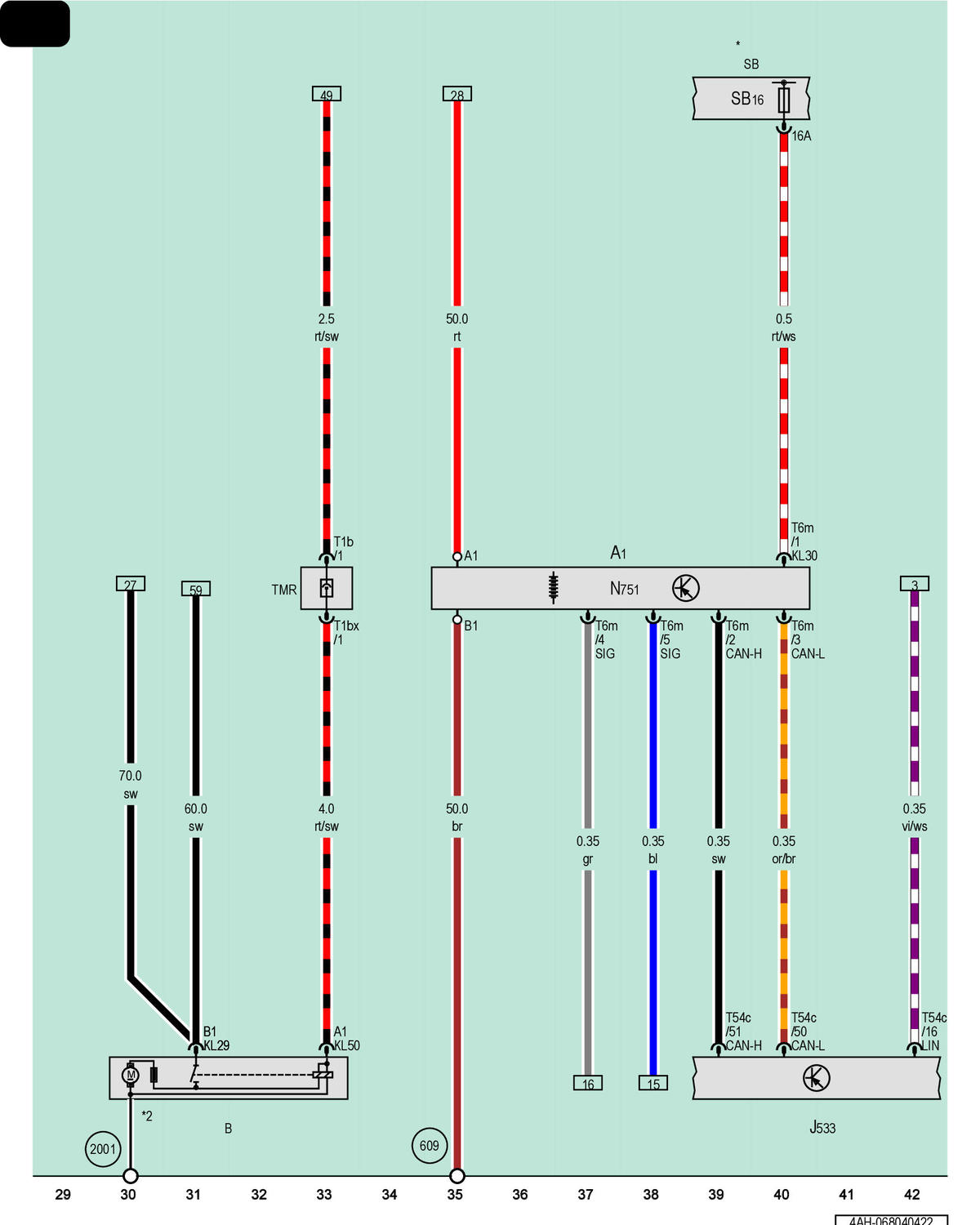

Auxiliary Battery, Starter, Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

A1

Auxiliary Battery

B

Starter

J533

Data Bus on Board Diagnostic Interface

N751

Igniter for Battery 2 Interruption

SB

Fuse Panel B

SB16

Fuse 16 (On Fuse Panel B)

T1b

1-Pin Connector, Black

T1bx

1-Pin Connector, Black

T6m

6-Pin Connector, Black

T54c

54-Pin Connector, Black

TMR

Coupling Point in Engine/Motor Compartment, Right

609

Ground Connection in Plenum Chamber, Right

2001

Frame Ground

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Ground Supply via the Housing
