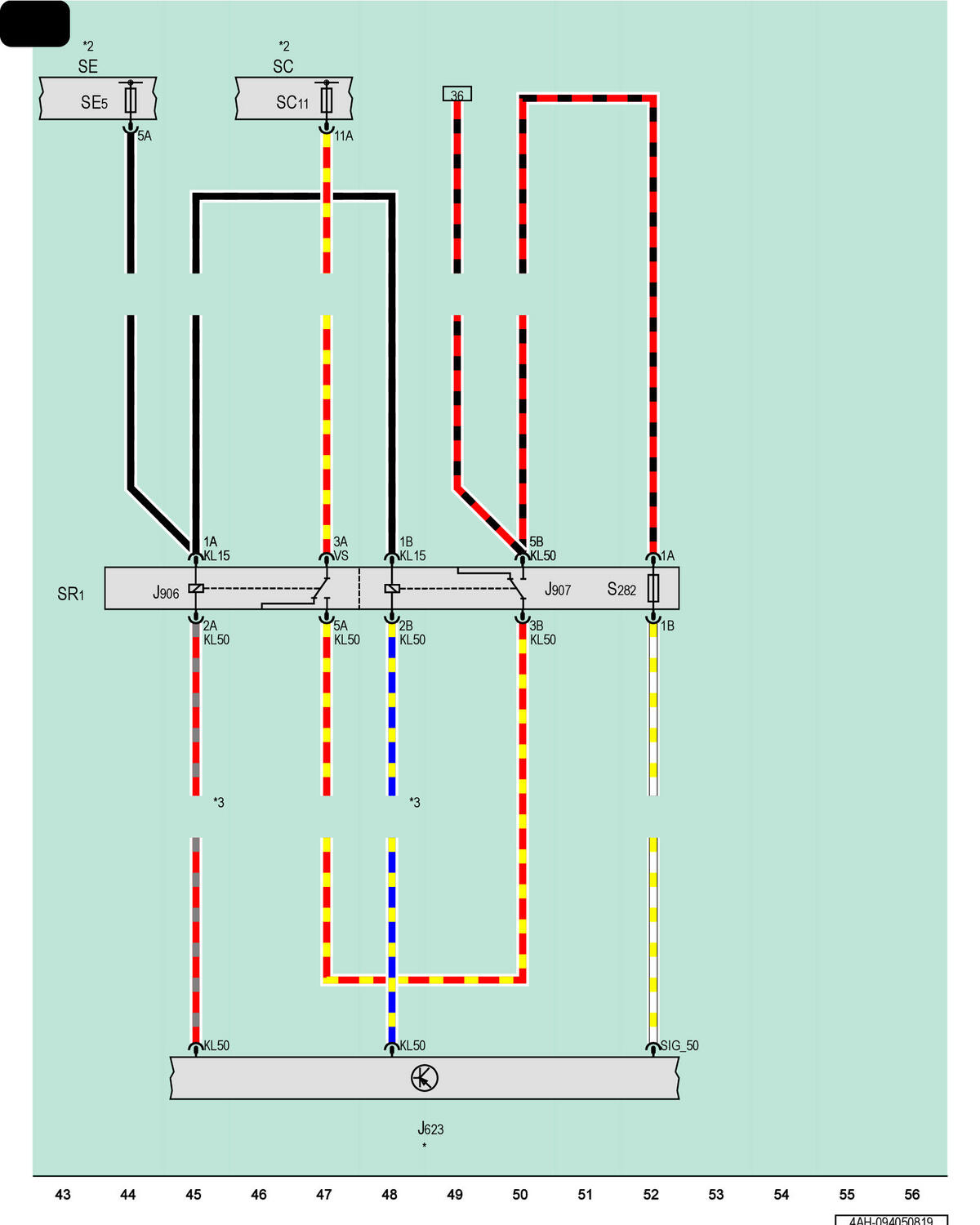

Engine/Motor Control Module, Starter Relay 2, Fuse Panel C, Fuse Panel E, Relay And Fuse Panel 1

Courtesy of AUDI OF AMERICA, LLC

J623

Engine/Motor Control Module

J906

Starter Relay 1

J907

Starter Relay 2

SC11

Fuse 11 (On Fuse Panel C)

S282

Engine Electronics Fuse

SC

Fuse Panel C

SE

Fuse Panel E

SR1

Relay and Fuse Panel 1

SE5

Fuse 5 on Fuse Panel E

*

Refer to Applicable Engine Wiring Diagram

*2

Refer to Applicable Wiring Diagram for Fuse Positions

*3

Diameter Depends on Equipment
