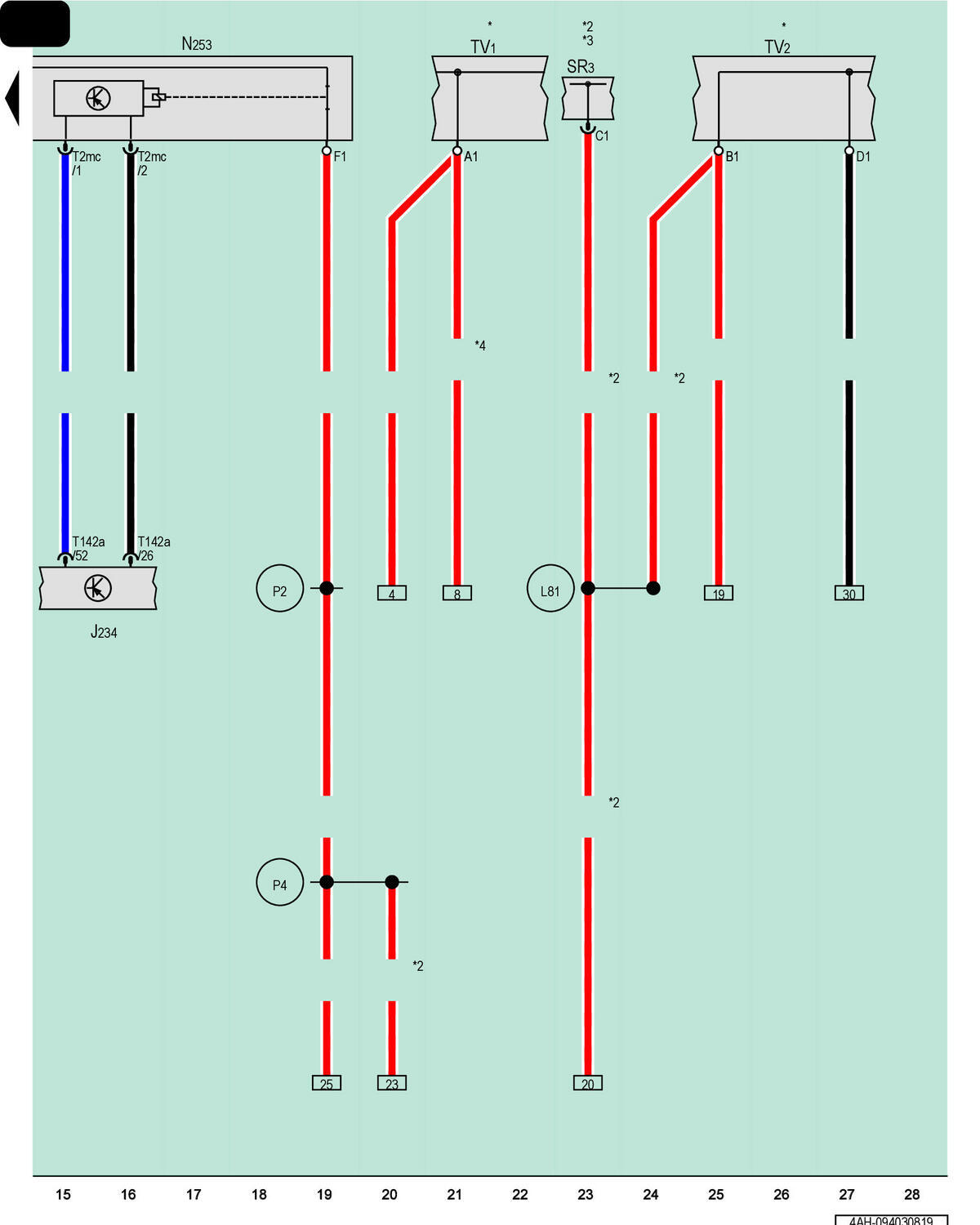

Airbag Control Module, Battery Interrupt Igniter, Wire Junction, Terminal 30 Wire Junction

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

N253

Battery Interrupt Igniter

SR3

Relay and Fuse Panel 3

T2mc

2-Pin Connector, Yellow

T142a

142-Pin Connector, Yellow

TV1

Wire Junction

TV2

Terminal 30 Wire Junction

L81

Connection (in Auxiliary Heater Wiring Harness)

P2

Positive Connection (30) (in Battery Wiring Harness)

P4

Positive Connection 2 (30) (in Battery Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

For Vehicles with Auxiliary Heater

*3

Refer to Applicable Wiring Diagram

*4

Optional Equipment
