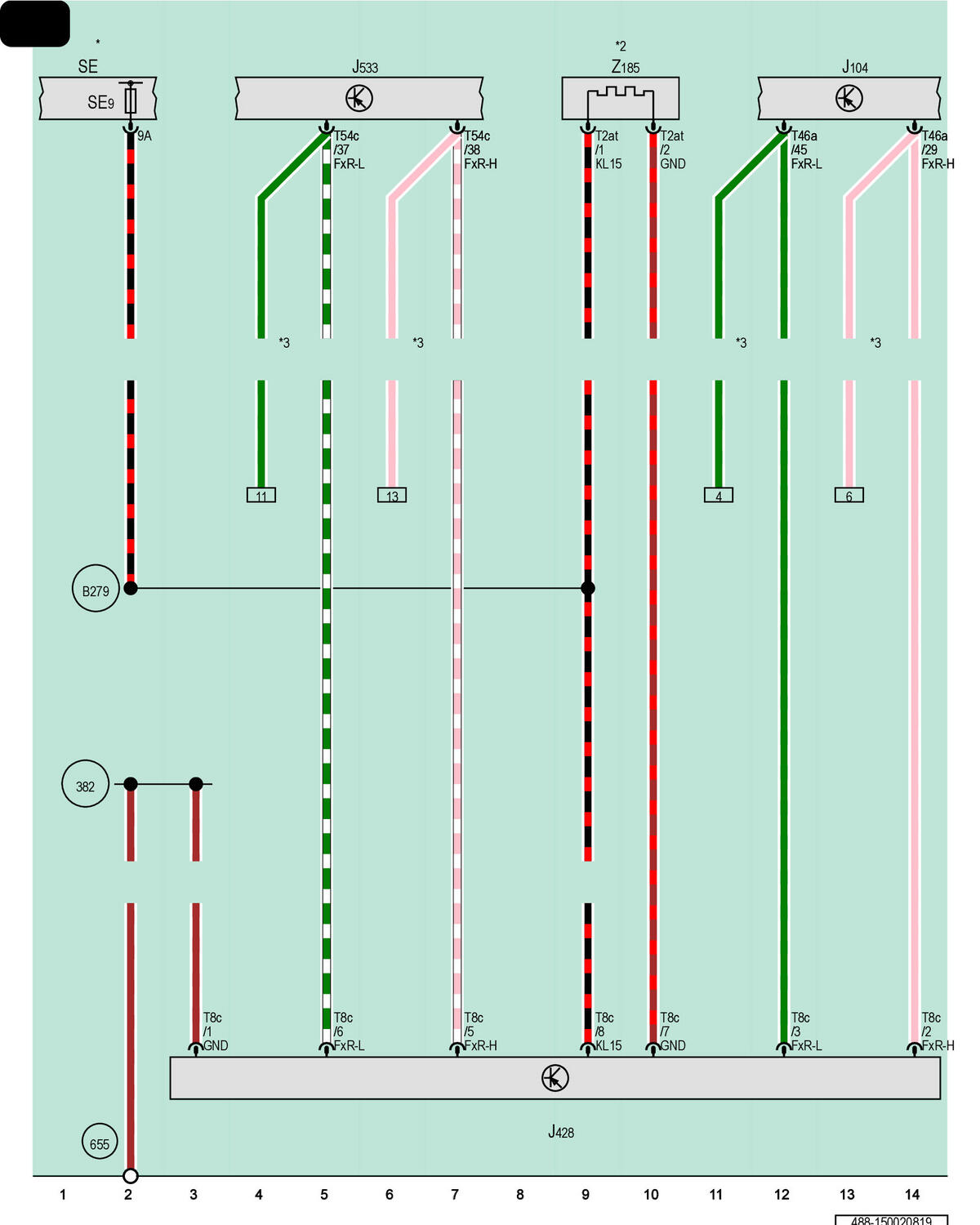

Abs Control Module, Control Module For Adaptive Cruise Control, Data Bus On Board Diagnostic Interface, Heating Element For Adaptive Cruise Control Radar Sensor

Courtesy of AUDI OF AMERICA, LLC

J104

ABS Control Module

J428

Control Module for Adaptive Cruise Control

J533

Data Bus on Board Diagnostic Interface

SE

Fuse Panel E

SE9

Fuse 9 on Fuse Panel E

T2at

2-Pin Connector, Black

T8c

8-Pin Connector, Black

T46a

46-Pin Connector, Black

T54c

54-Pin Connector, Black

Z185

Heating Element for Adaptive Cruise Control Radar Sensor

382

Ground Connection 17 (in Main Wiring Harness)

655

Ground Connection on Left Headlamp

B279

Positive Connection 3 (15a) (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Pre-Wired Component

*3

For Vehicles with Cruise Control System
