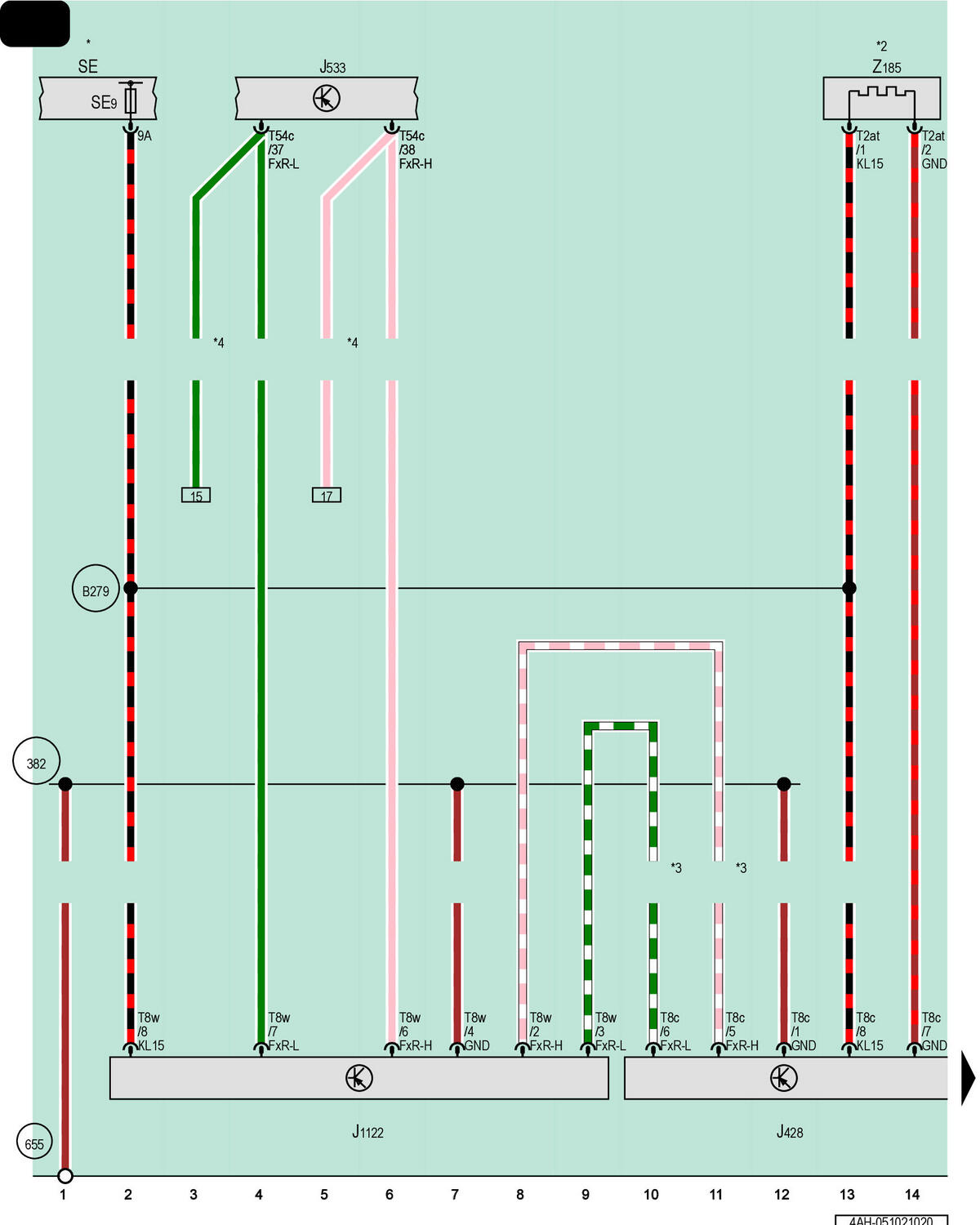

Control Module For Adaptive Cruise Control, Data Bus On Board Diagnostic Interface, Laser Distance Regulation Control Module, Heating Element For Adaptive Cruise Control Radar Sensor
J428
Control Module for Adaptive Cruise Control
J533
Data Bus on Board Diagnostic Interface
J1122
Laser Distance Regulation Control Module
SE
Fuse Panel E
SE9
Fuse 9 on Fuse Panel E
T2at
2-Pin Connector, Black
T8c
8-Pin Connector, Black
T8w
8-Pin Connector, Black
T54c
54-Pin Connector, Black
Z185
Heating Element for Adaptive Cruise Control Radar Sensor
382
Ground Connection 17 (in Main Wiring Harness)
655
Ground Connection on Left Headlamp
B279
Positive Connection 3 (15a) (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Pre-Wired Component
*3
Data Bus Wire (Flexray Bus)
*4
For Vehicles with Cruise Control System
