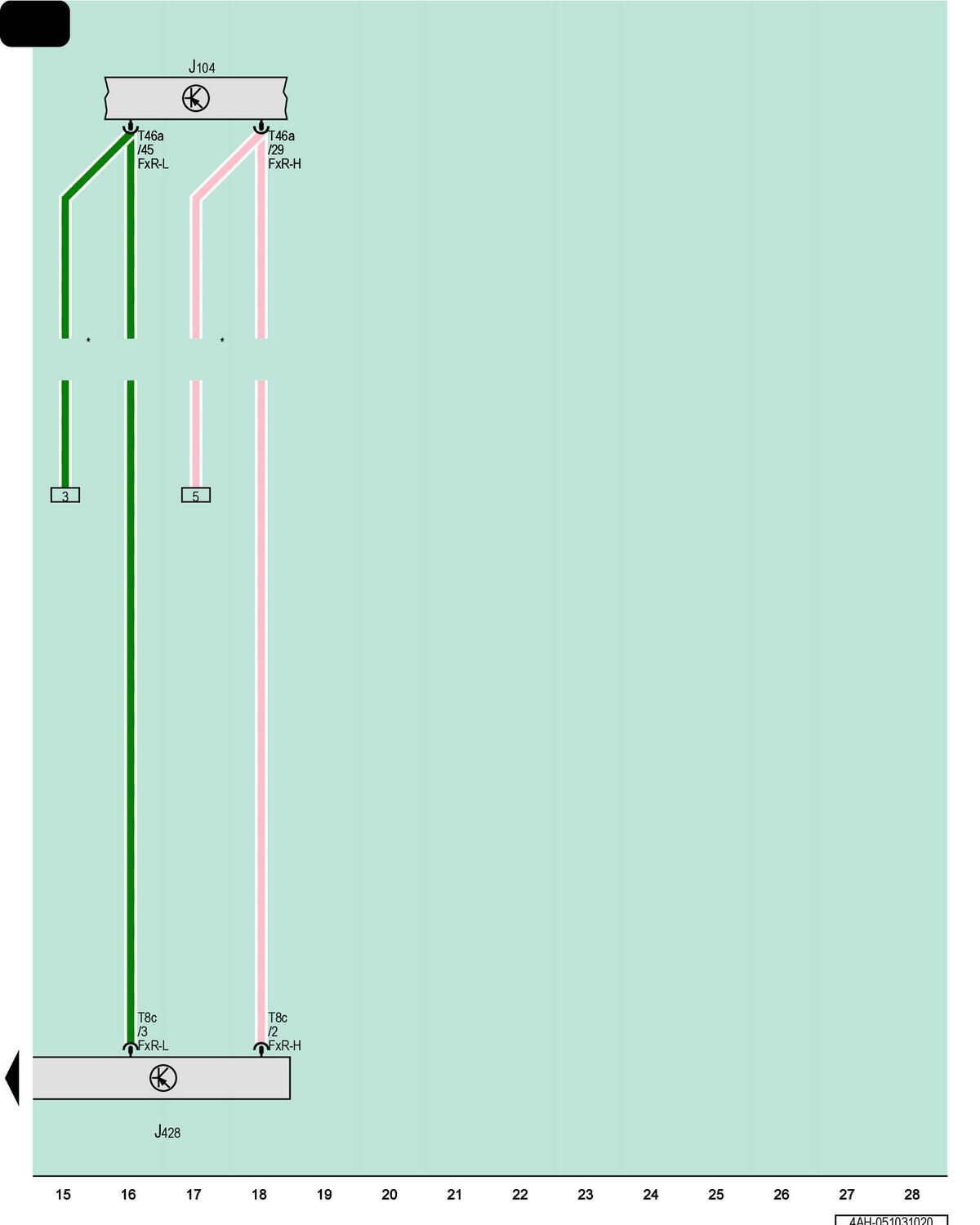

Abs Control Module, Control Module For Adaptive Cruise Control

GWW4AH-051031020Courtesy of AUDI OF AMERICA, LLC

J104

ABS Control Module

J428

Control Module for Adaptive Cruise Control

T8c

8-Pin Connector, Black

T46a

46-Pin Connector, Black

For Vehicles with Cruise Control System
