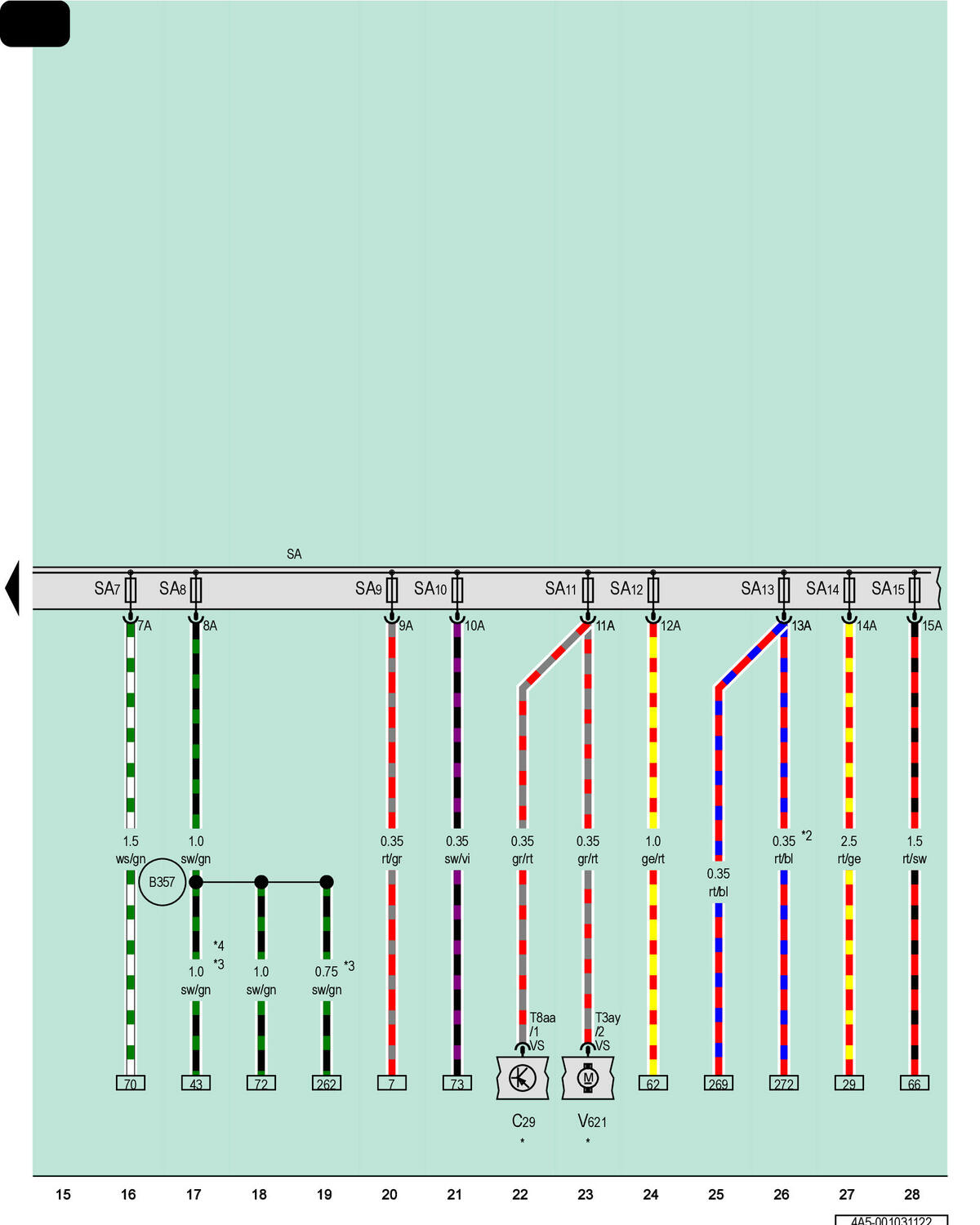

Starter Generator, Fuse Panel A, Starter Generator Coolant Pump
C29
Starter Generator
SA
Fuse Panel A
SA7
Fuse 7 (On Fuse Panel A)
SA8
Fuse 8 (On Fuse Panel A)
SA9
Fuse 9 (On Fuse Panel A)
SA10
Fuse 10 (On Fuse Panel A)
SA11
Fuse 11 (On Fuse Panel A)
SA12
Fuse 12 (On Fuse Panel A)
SA13
Fuse 13 (On Fuse Panel A)
SA14
Fuse 14 (On Fuse Panel A)
SA15
Fuse 15 (On Fuse Panel A)
T3ay
3-Pin Connector, Black
T8aa
8-Pin Connector, Black
V621
Starter Generator Coolant Pump
B357
Positive Connection 8 (87a) (in Main Wiring Harness)
*
Refer to Applicable Battery Wiring Diagram
*2
For Vehicles with Trailer Hitch
*3
Depending on Equipment
*4
Omitted as a Running Change
