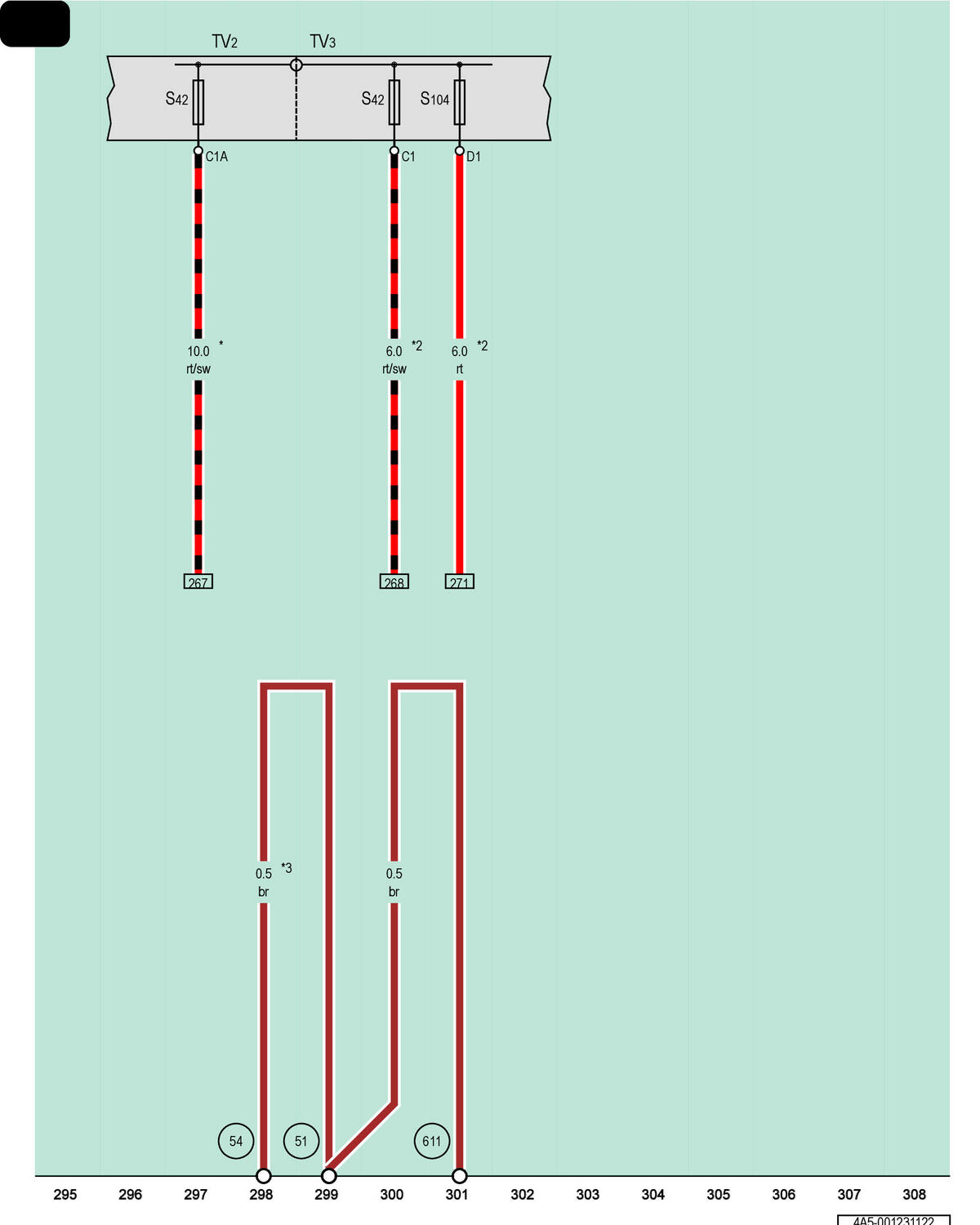

Radiator Fan Fuse, Terminal 30 Wire Junction, Terminal 30A Wire Junction

Courtesy of AUDI OF AMERICA, LLC

S42

Radiator Fan Fuse

S104

Radiator Fan Second Speed Fuse

TV2

Terminal 30 Wire Junction

TV3

Terminal 30a Wire Junction

51

Ground Connection in Luggage Compartment, Right

54

Ground Connection on Rear Cross Panel

611

Ground Connection on Fuel Tank Filler Neck

*

For Vehicles Without Trailer Hitch

*2

For Vehicles with Trailer Hitch

*3

For USA Only
