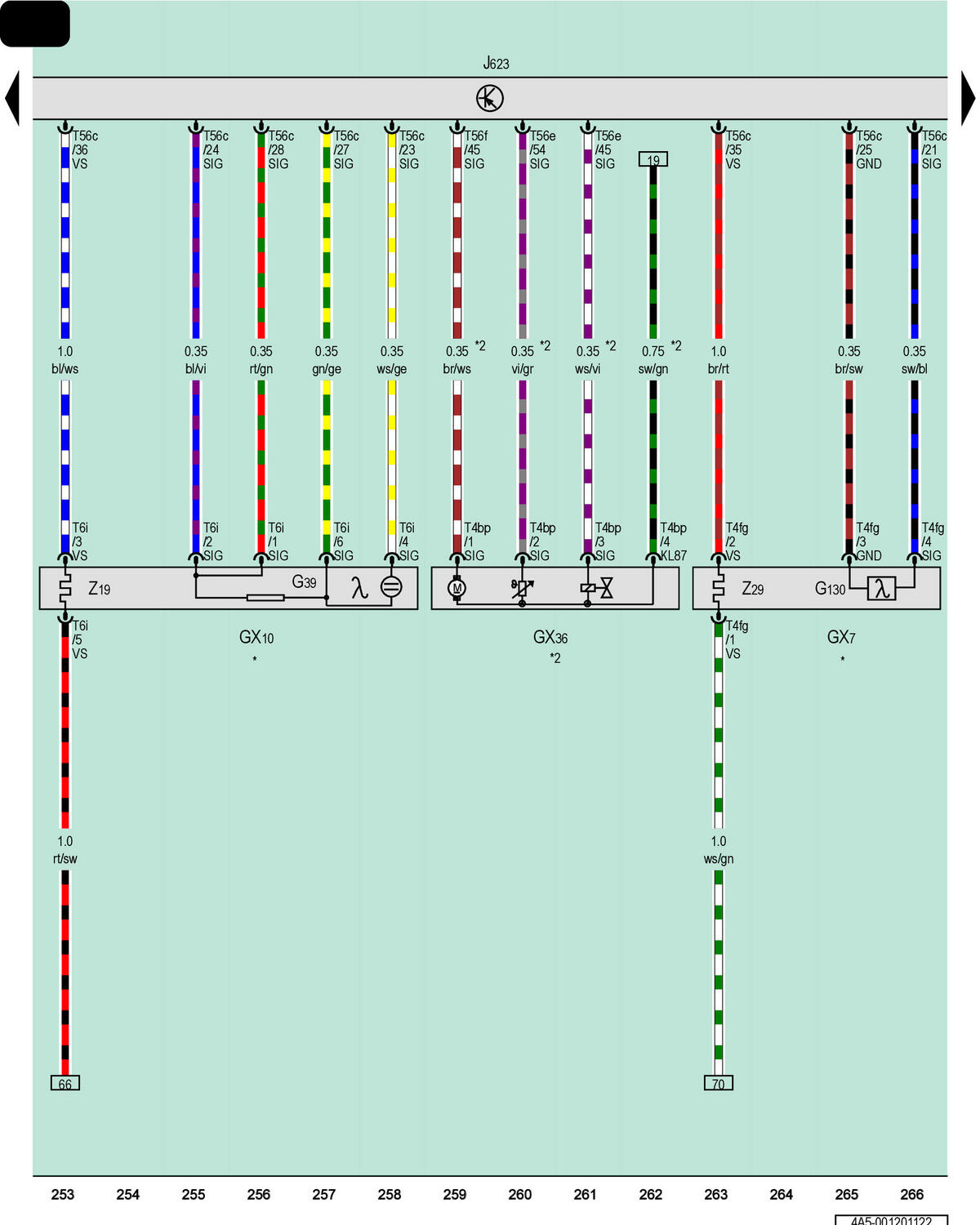

Oxygen Sensor 1 After Catalytic Converter, Oxygen Sensor 1 Before Catalytic Converter, Fuel Tank Leak Detection Module, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

GX7

Oxygen Sensor 1 After Catalytic Converter

GX10

Oxygen Sensor 1 Before Catalytic Converter

GX36

Fuel Tank Leak Detection Module

G39

Heated Oxygen Sensor

G130

Oxygen Sensor After Catalytic Converter

J623

Engine/Motor Control Module

T4bp

4-Pin Connector, Black

T4fg

4-Pin Connector, Black

T6i

6-Pin Connector, Black

T56c

56-Pin Connector, Black, Blue

T56e

56-Pin Connector, Black, Green

T56f

56-Pin Connector, Black, Black

Z19

Oxygen Sensor Heater

Z29

Heater for Oxygen Sensor 1 After Catalytic Converter

*

Pre-Wired Component

*2

Depending on Equipment
