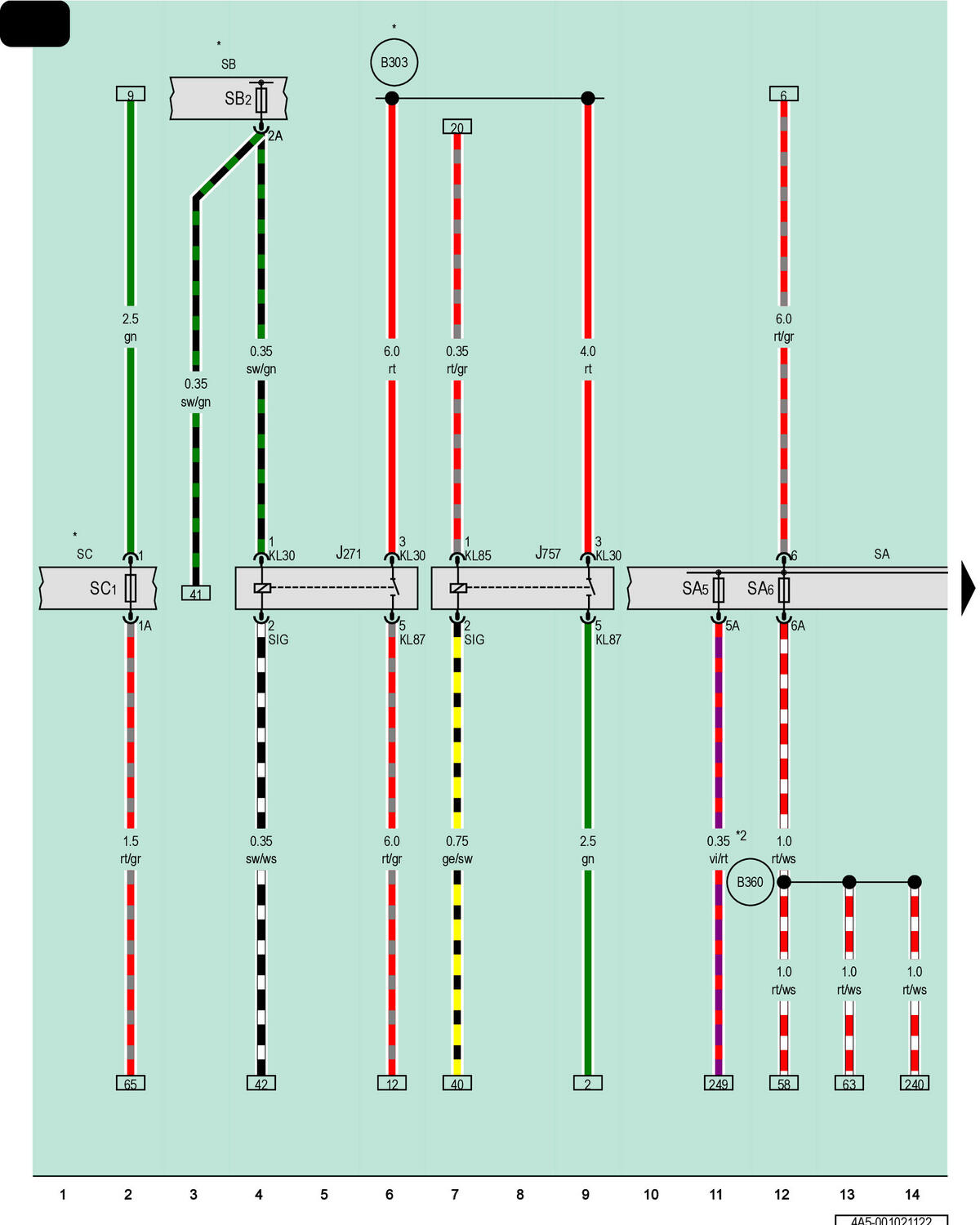

MOTRONIC Engine Control Module Power Supply Relay, Engine Component Power Supply Relay, Fuse Panel A

Courtesy of AUDI OF AMERICA, LLC

J271

Motronic Engine Control Module Power Supply Relay

J757

Engine Component Power Supply Relay

SA

Fuse Panel A

SA5

Fuse 5 (On Fuse Panel A)

SA6

Fuse 6 (On Fuse Panel A)

SB

Fuse Panel B

SB2

Fuse 2 (On Fuse Panel B)

SC

Fuse Panel C

SC1

Fuse 1 (On Fuse Panel C)

B303

Positive Connection 7 (30) (in Main Wiring Harness)

B360

Positive Connection 11 (87a) (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

For Vehicles Without Traffic Jam Pilot
