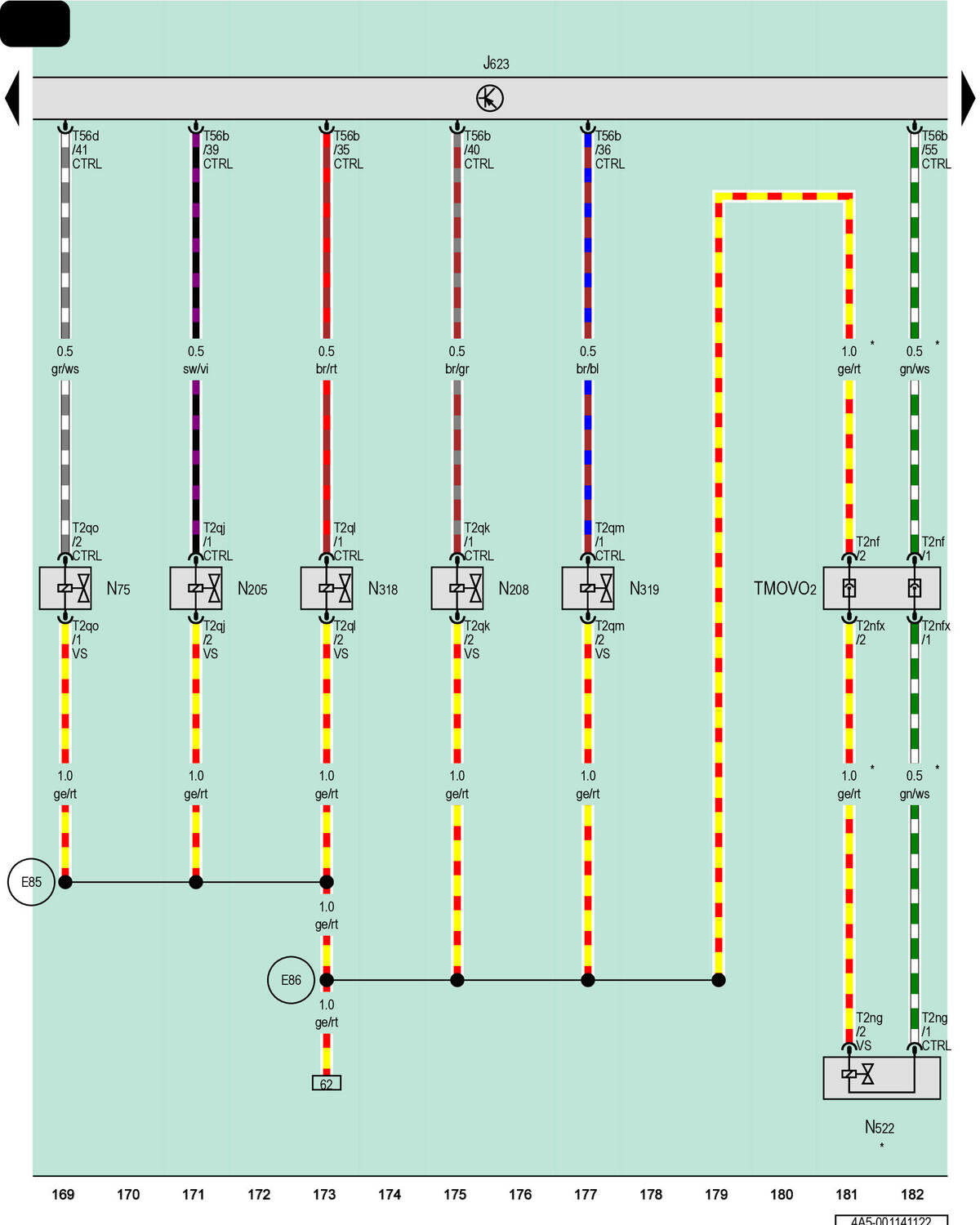

Engine/Motor Control Module, WASTEGATE Bypass Regulator Valve, Camshaft Adjustment Valve 1, Camshaft Adjustment Valve 2, Exhaust Camshaft Adjustment Valve 1, Exhaust Camshaft Adjustment Valve 2, Piston Cooling Nozzle Control Valve
J623
Engine/Motor Control Module
N75
Wastegate Bypass Regulator Valve
N205
Camshaft Adjustment Valve 1
N208
Camshaft Adjustment Valve 2
N318
Exhaust Camshaft Adjustment Valve 1
N319
Exhaust Camshaft Adjustment Valve 2
N522
Piston Cooling Nozzle Control Valve
T2nf
2-Pin Connector, Black
T2nfx
2-Pin Connector, Black
T2ng
2-Pin Connector, Black
T2qj
2-Pin Connector, Black
T2qk
2-Pin Connector, Black
T2ql
2-Pin Connector, Black
T2qm
2-Pin Connector, Black
T2qo
2-Pin Connector, Black
T56b
56-Pin Connector, Black, White
T56d
56-Pin Connector, Black, Purple
TMOVO2
Engine Pre-Wiring Coupling Point 2
E85
Connection 87a (in Engine Wiring Harness) 9
E86
Connection 87a (in Engine Wiring Harness) 10
*
Depending on Equipment
