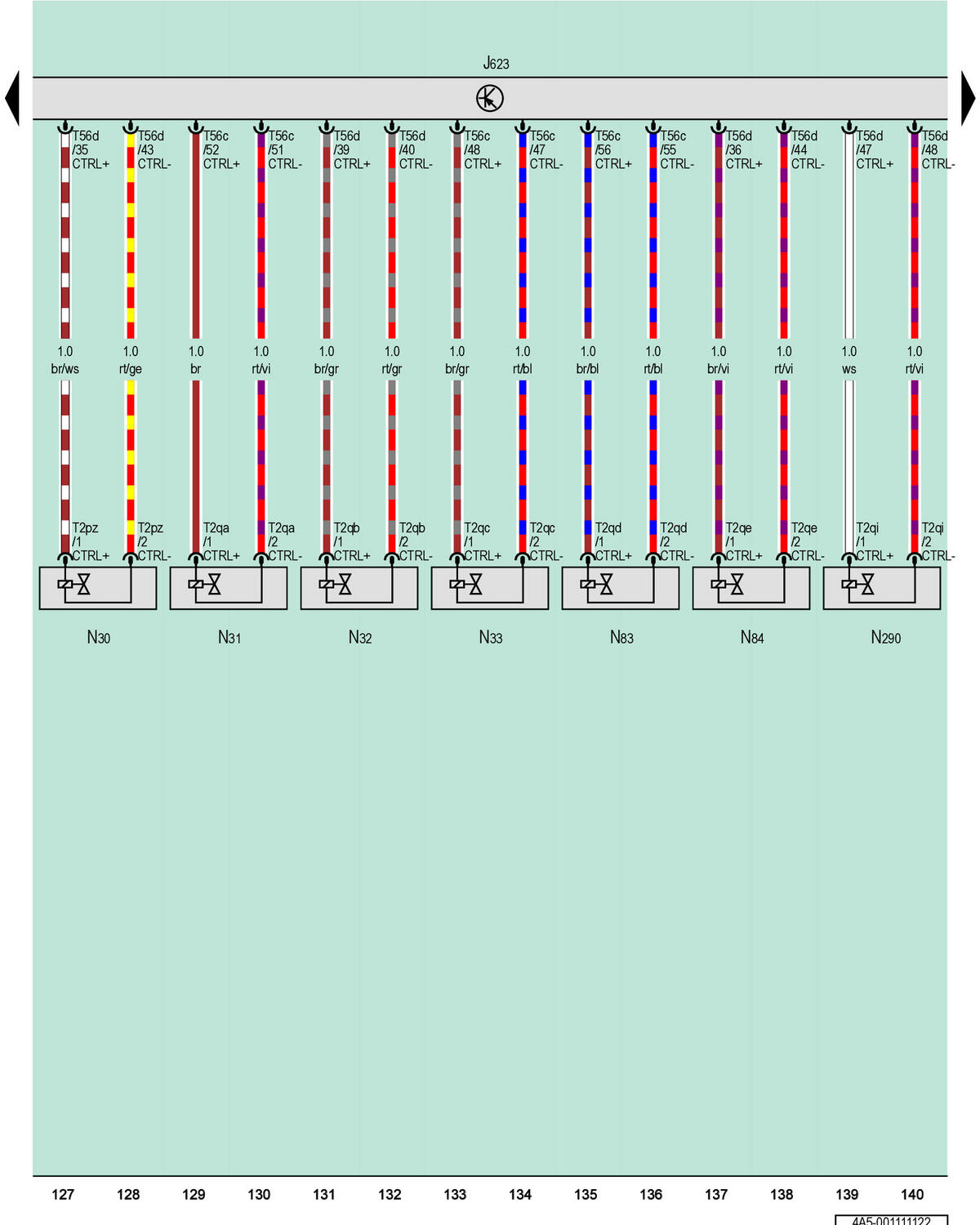

Engine/Motor Control Module, Cylinder 1 Fuel Injector, Cylinder 6 Fuel Injector, Fuel Metering Valve

Courtesy of AUDI OF AMERICA, LLC

J623

Engine/Motor Control Module

N30

Cylinder 1 Fuel Injector

N31

Cylinder 2 Fuel Injector

N32

Cylinder 3 Fuel Injector

N33

Cylinder 4 Fuel Injector

N83

Cylinder 5 Fuel Injector

N84

Cylinder 6 Fuel Injector

N290

Fuel Metering Valve

T2pz

2-Pin Connector, Black

T2qa

2-Pin Connector, Black

T2qb

2-Pin Connector, Black

T2qc

2-Pin Connector, Black

T2qd

2-Pin Connector, Black

T2qe

2-Pin Connector, Black

T2qi

2-Pin Connector, Black

T56c

56-Pin Connector, Black, Blue

T56d

56-Pin Connector, Black, Purple
