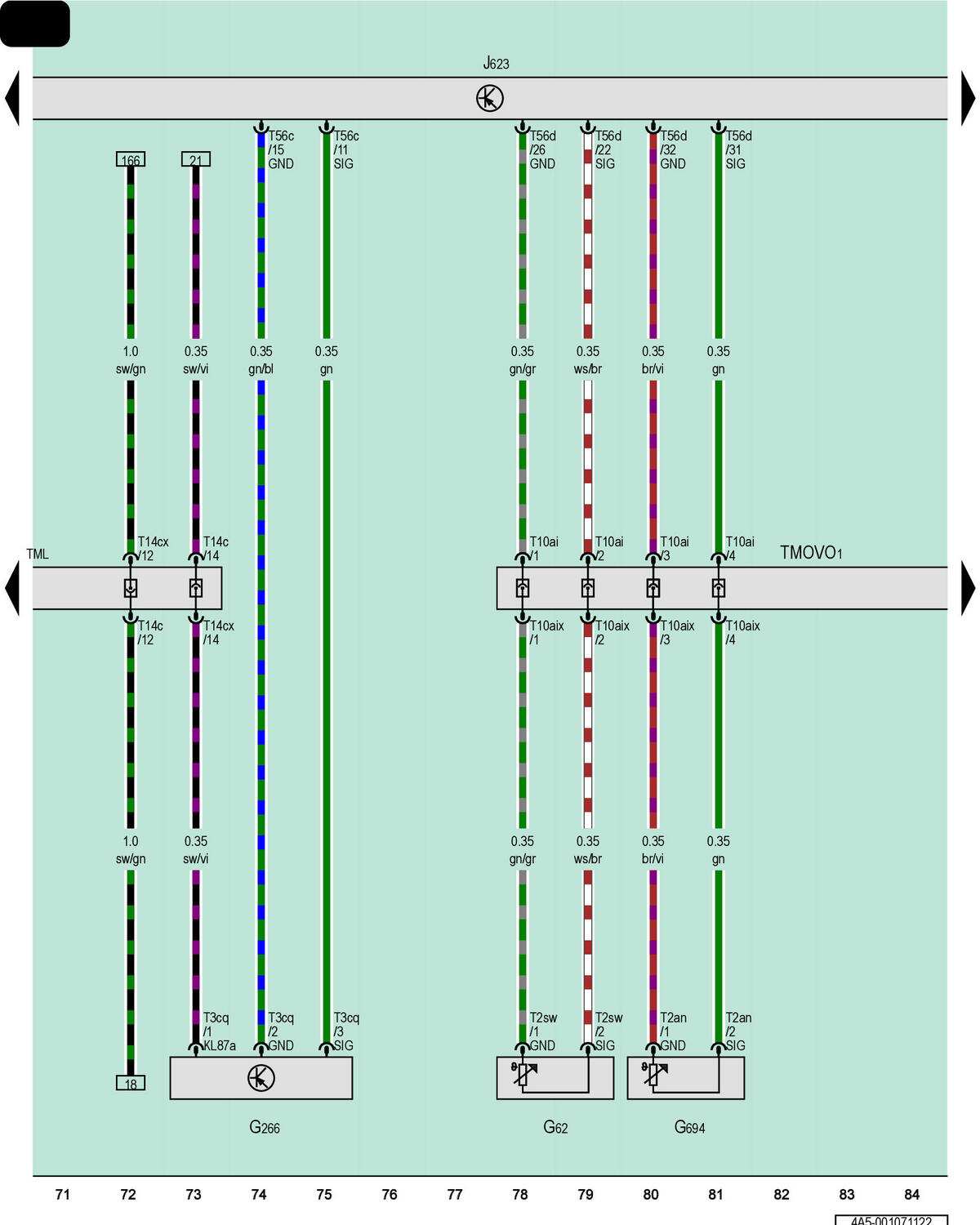

Engine Coolant Temperature Sensor, Oil Level Thermal Sensor, Engine Temperature Control Sensor, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

G62

Engine Coolant Temperature Sensor

G266

Oil Level Thermal Sensor

G694

Engine Temperature Control Sensor

J623

Engine/Motor Control Module

T2an

2-Pin Connector, Black

T2sw

2-Pin Connector, Black

T3cq

3-Pin Connector, Black

T10ai

10-Pin Connector, Black

T10aix

10-Pin Connector, Black

T14c

14-Pin Connector, Black

T14cx

14-Pin Connector, Black

T56c

56-Pin Connector, Black, Blue

T56d

56-Pin Connector, Black, Purple

TML

Coupling Point in Engine/Motor Compartment, Left

TMOVO1

Engine Pre-Wiring Coupling Point 1
