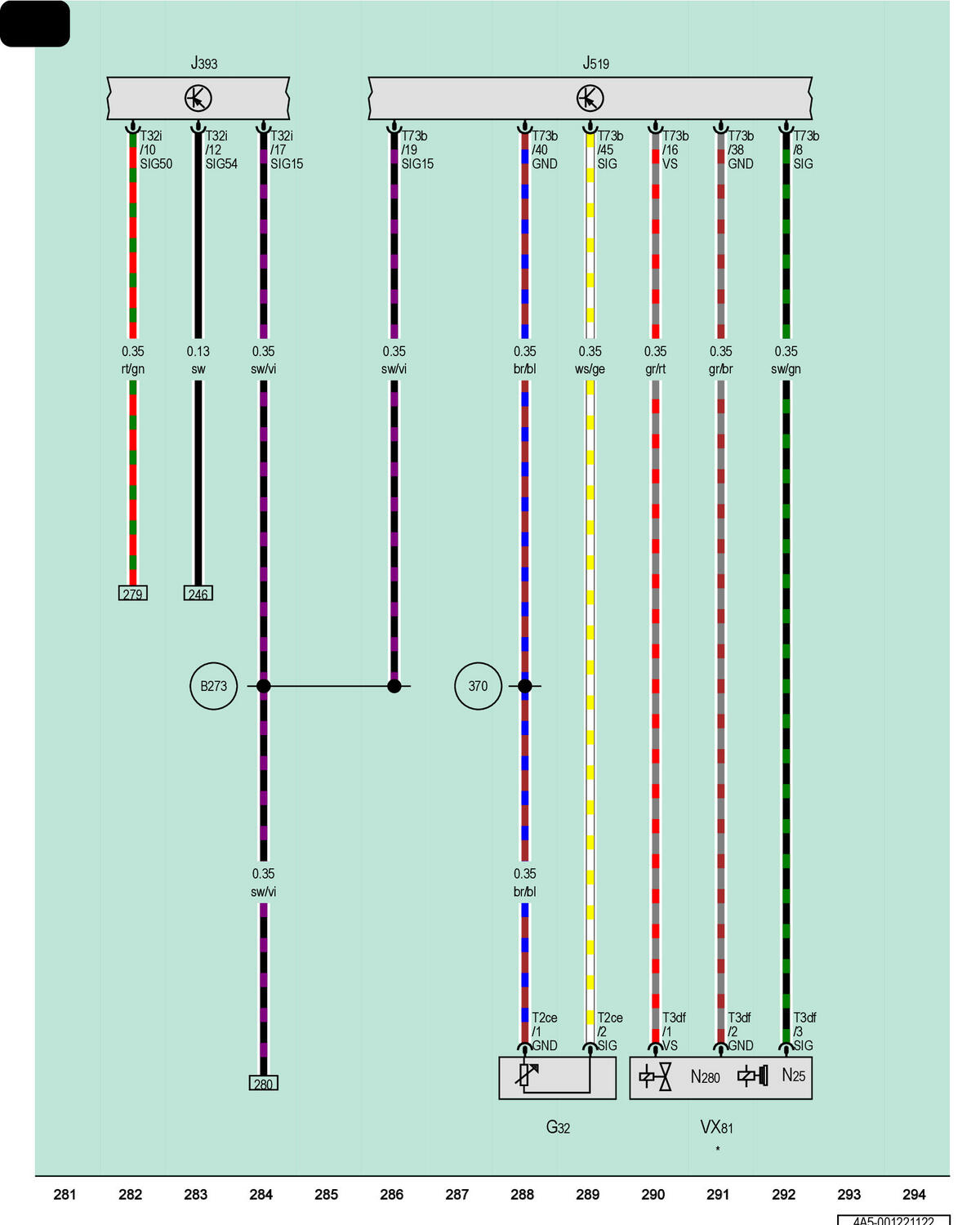

Engine Coolant Level Sensor, Comfort System Central Control Module, Vehicle Electrical System Control Module, A/C Compressor Regulator Valve, A/C Compressor
G32
Engine Coolant Level Sensor
J393
Comfort System Central Control Module
J519
Vehicle Electrical System Control Module
N25
A/C Clutch
N280
A/C Compressor Regulator Valve
T2ce
2-Pin Connector, Black
T3df
3-Pin Connector, Black
T32i
32-Pin Connector, Naturally Cloudy, Black
T73b
73-Pin Connector, Black, Black
VX81
A/C Compressor
370
Ground Connection 5 (in Main Wiring Harness)
B273
Positive Connection (15) (in Main Wiring Harness)
*
Pre-Wired Component
