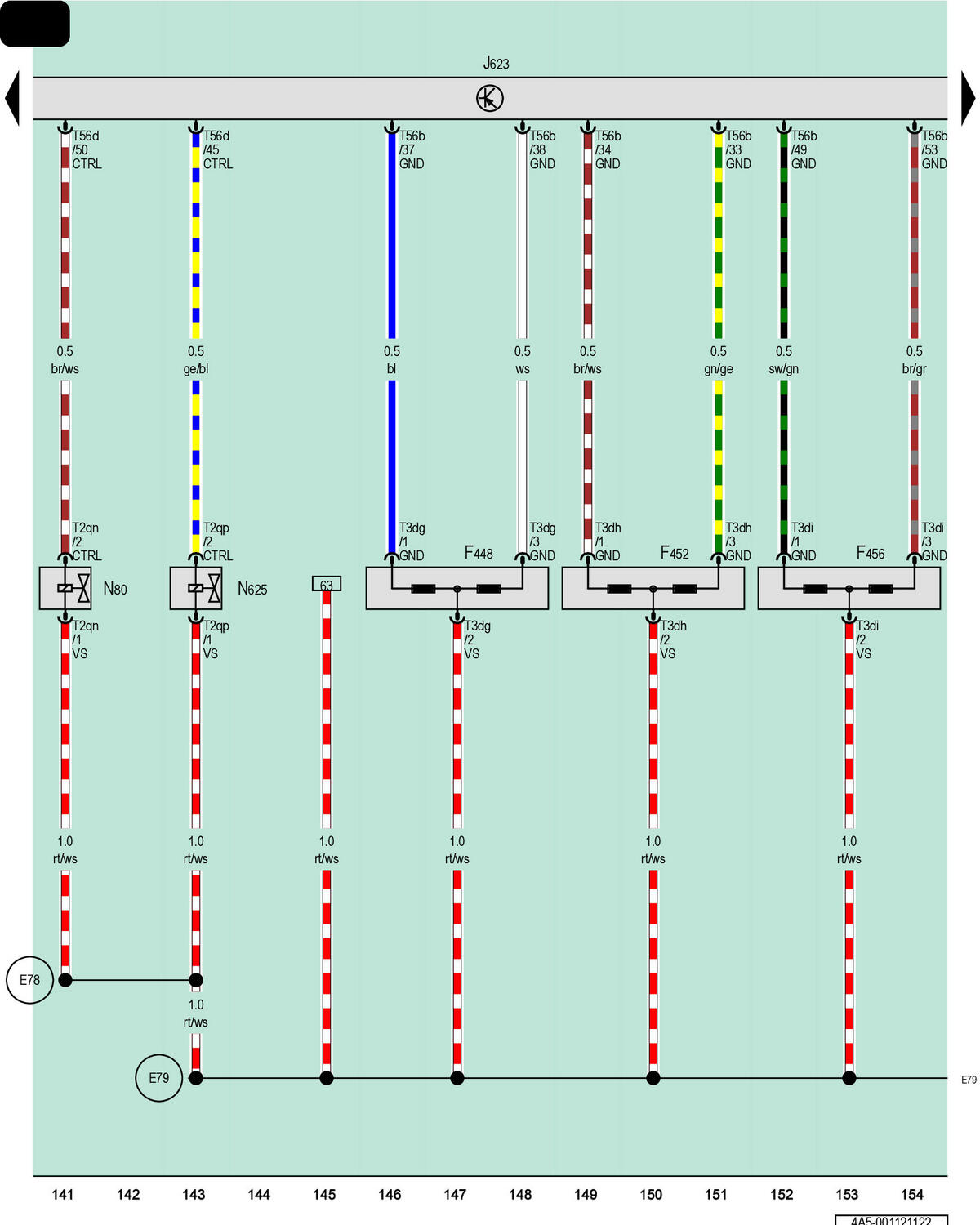

Cylinder 1 Intake Cam Actuator 1, Cylinder 2 Intake Cam Actuator 1, Cylinder 3 Intake Cam Actuator 1, Engine/Motor Control Module, EVAP Canister Purge Regulator Valve 1, RECIRCULATION Valve, Bank 1

Courtesy of AUDI OF AMERICA, LLC

F448

Cylinder 1 Intake Cam Actuator 1

F452

Cylinder 2 Intake Cam Actuator 1

F456

Cylinder 3 Intake Cam Actuator 1

J623

Engine/Motor Control Module

N80

EVAP Canister Purge Regulator Valve 1

N625

Recirculation Valve, Bank 1

T2qn

2-Pin Connector, Black

T2qp

2-Pin Connector, Black

T3dg

3-Pin Connector, Black

T3dh

3-Pin Connector, Black

T3di

3-Pin Connector, Black

T56b

56-Pin Connector, Black, White

T56d

56-Pin Connector, Black, Purple

E78

Connection 87a (in Engine Wiring Harness) 2

E79

Connection 87a (in Engine Wiring Harness) 3
