Overview - Front Center Armrest

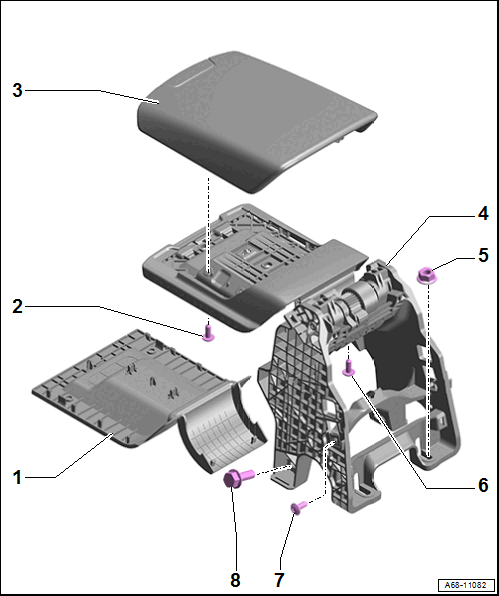

Fig 1: Front Center Armrest Overview
GWWA68-11082Courtesy of AUDI OF AMERICA, LLC
  1. Lower Cover
  2. Bolt
    • Quantity: 4
    • 2 Nm
  3. Center Armrest Upper Section
  4. Front Center Armrest
  5. Nut
    • Quantity: 2
    • 10 Nm
  6. Bolt
    • Quantity: 2
    • 3 Nm
  7. Bolt
    • Quantity: 2
    • 3 Nm
  8. Bolt
    • Quantity: 2
    • 10 Nm
