Component Location Overview - Center Console Lamps

Courtesy of AUDI OF AMERICA, LLC

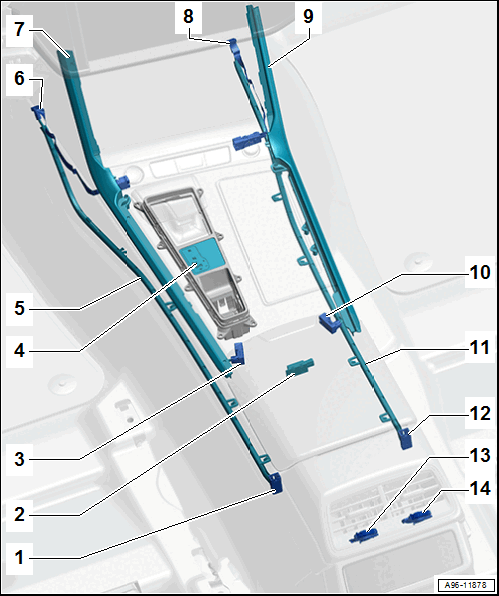

1. Front Center Console Ambient Lighting Bulb 3 -L195-
   • Cannot be replaced separately
   • Refer to FIBER OPTIC CABLE FOR FRONT CENTER CONSOLE AMBIENT LIGHTING WITH CENTER CONSOLE AMBIENT LIGHTING BULBS L193/L194/L195/L196, REMOVING AND INSTALLING
2. Right Center Armrest Illumination Bulb -L228-
   • Refer to RIGHT CENTER ARMREST ILLUMINATION BULB L228, REMOVING AND INSTALLING
3. Front Center Console Ambient Lighting Bulb 5 -L260-
   • Cannot be replaced separately
   • Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
4. Selector Lever Transmission Range Display -Y5-
   • Refer to SELECTOR LEVER TRANSMISSION RANGE DISPLAY Y5, REMOVING AND INSTALLING  .
5. Ambient Lighting Fiber-Optic Cable
   • Refer to FIBER OPTIC CABLE FOR FRONT CENTER CONSOLE AMBIENT LIGHTING WITH CENTER CONSOLE AMBIENT LIGHTING BULBS L193/L194/L195/L196, REMOVING AND INSTALLING
6. Front Center Console Ambient Lighting Bulb 1 -L193-
   • Cannot be replaced separately
   • Refer to FIBER OPTIC CABLE FOR FRONT CENTER CONSOLE AMBIENT LIGHTING WITH CENTER CONSOLE AMBIENT LIGHTING BULBS L193/L194/L195/L196, REMOVING AND INSTALLING
7. Ambient Lighting Fiber-Optic Cable
   • Cannot be replaced separately
   • Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
8. Front Center Console Ambient Lighting Bulb 2 -L194-
   • Cannot be replaced separately
   • Refer to FIBER OPTIC CABLE FOR FRONT CENTER CONSOLE AMBIENT LIGHTING WITH CENTER CONSOLE AMBIENT LIGHTING BULBS L193/L194/L195/L196, REMOVING AND INSTALLING
9. Ambient Lighting Fiber-Optic Cable
   • Cannot be replaced separately
   • Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
10. Front Center Console Ambient Lighting Bulb 6 -L289-
    • Cannot be replaced separately
    • Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
11. Ambient Lighting Fiber-Optic Cable
    • Refer to FIBER OPTIC CABLE FOR FRONT CENTER CONSOLE AMBIENT LIGHTING WITH CENTER CONSOLE AMBIENT LIGHTING BULBS L193/L194/L195/L196, REMOVING AND INSTALLING
12. Front Center Console Ambient Lighting Bulb 4 -L196-
    • Cannot be replaced separately
    • Refer to FIBER OPTIC CABLE FOR FRONT CENTER CONSOLE AMBIENT LIGHTING WITH CENTER CONSOLE AMBIENT LIGHTING BULBS L193/L194/L195/L196, REMOVING AND INSTALLING
13. Rear Center Air Vent Illumination Bulb -L87-, Left
    • Cannot be replaced separately
    • Rear vent, removing and installing: Refer to Overview - Center Console .
14. Rear Center Air Vent Illumination Bulb -L87-, Right
    • Cannot be replaced separately
    • Rear vent, removing and installing: Refer to Overview - Center Console .
