Overview - Instrument Panel Cover, Driver Side

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.

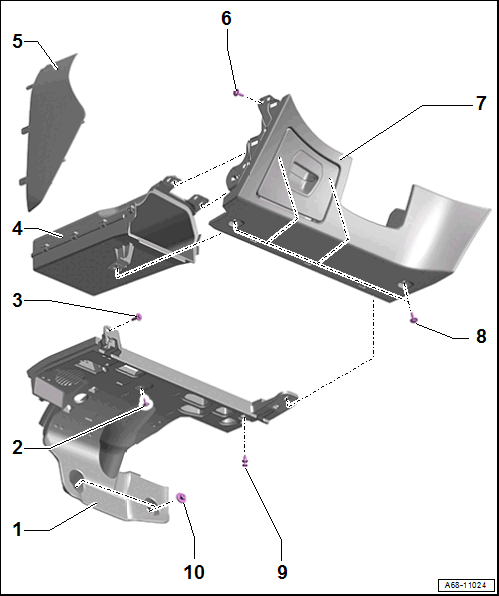

Fig 1: Driver Side Instrument Panel Cover

Courtesy of AUDI OF AMERICA, LLC

1. Driver Side Footwell Cover
   • Refer to Driver Side Footwell Cover, Removing and Installing  .
2. Bolt
   • 3 Nm
3. Bolt
   • 3 Nm
4. Storage Compartment
   • Refer to Driver Side Instrument Panel Cover Storage Compartment, Removing and Installing  .
5. Instrument Panel Side Cover
   • Refer to Instrument Panel Side Cover, Removing and Installing .
6. Bolt
   • 3 Nm
7. Driver Side Instrument Panel Cover
   • Refer to Driver Side Instrument Panel Cover, Removing and Installing  .
8. Bolt
   • Quantity: 4
   • 3 Nm
9. Expanding Clip
10. Nut
    • Quantity: 2
    • 3 Nm
