Front Center Armrest, Removing And Installing: Removing

-- Remove the center console and put it on a soft surface. Refer to Center Console, Removing and Installing  .

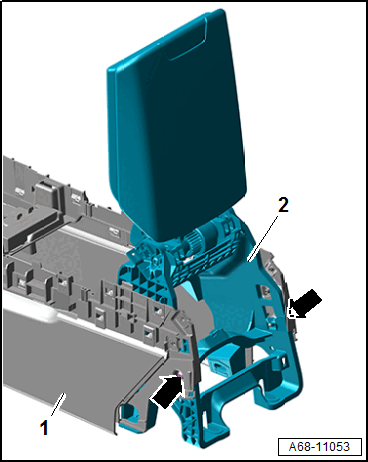

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

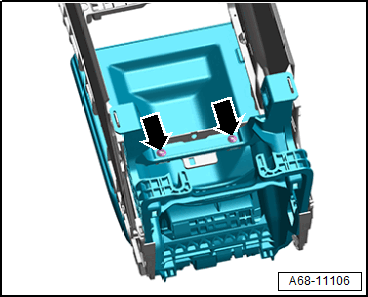

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Fold the center armrest up.

-- Pull the center console -1- sideways slightly on the side and disengage the center console -2-.

-- Remove the center armrest -2- to the rear.
