Center Armrest Upper Section, Removing And Installing: Removing

-- Fold the center armrest up.

Courtesy of AUDI OF AMERICA, LLC

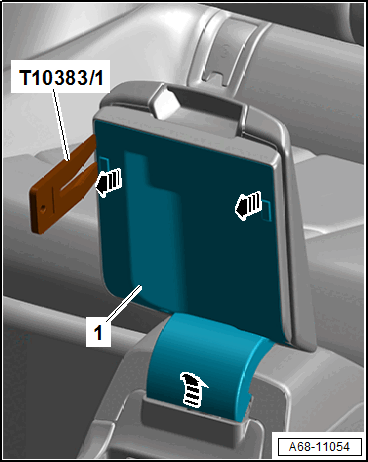

-- Insert the Wedge Set:T10383  between the cover and the center armrest.

-- Unclip the cover -1- using a wedge -arrows-.

-- Pivot the cover -1- to the front and remove from below.

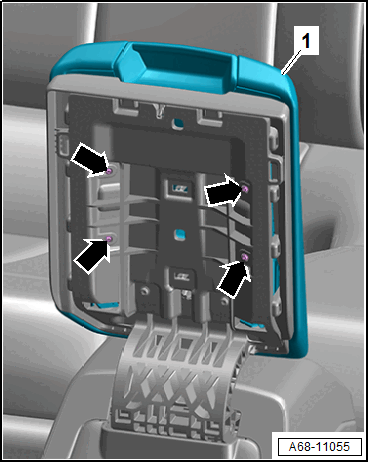

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage and remove the center armrest upper section -1-.
