Trim, Removing And Installing: Removing

-- Remove the rear trim from the center console. Refer to REAR CENTER CONSOLE TRIM, REMOVING AND INSTALLING .

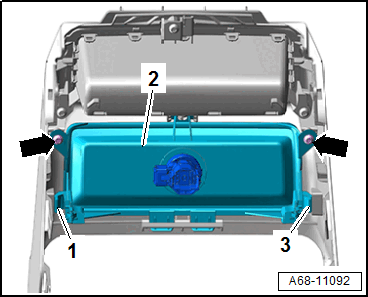

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catches -1- and -3-.

-- Disengage the switch/socket trim -2- and remove.
