Center Console Side Trim, Removing And Installing: Removing
-- Driver side: remove the driver side instrument panel cover. Refer to Driver Side Instrument Panel Cover, Removing and Installing .
-- Front passenger side: remove the glove compartment. Refer to Glove Compartment, Removing and Installing .
-- Remove the center console side trim panel. Refer to Center Console Side Trim Panel, Removing and Installing .

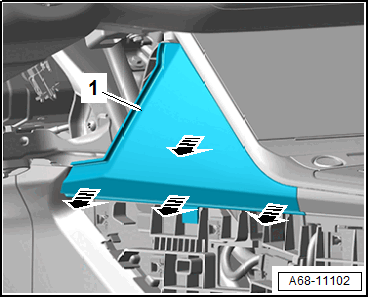

-- Unclip the trim -1- from the center console -arrows-, beginning at the front, using the Removal Wedge:3409 .
-- Disengage the remaining frame.
-- Disengage and remove the trim -1-.
